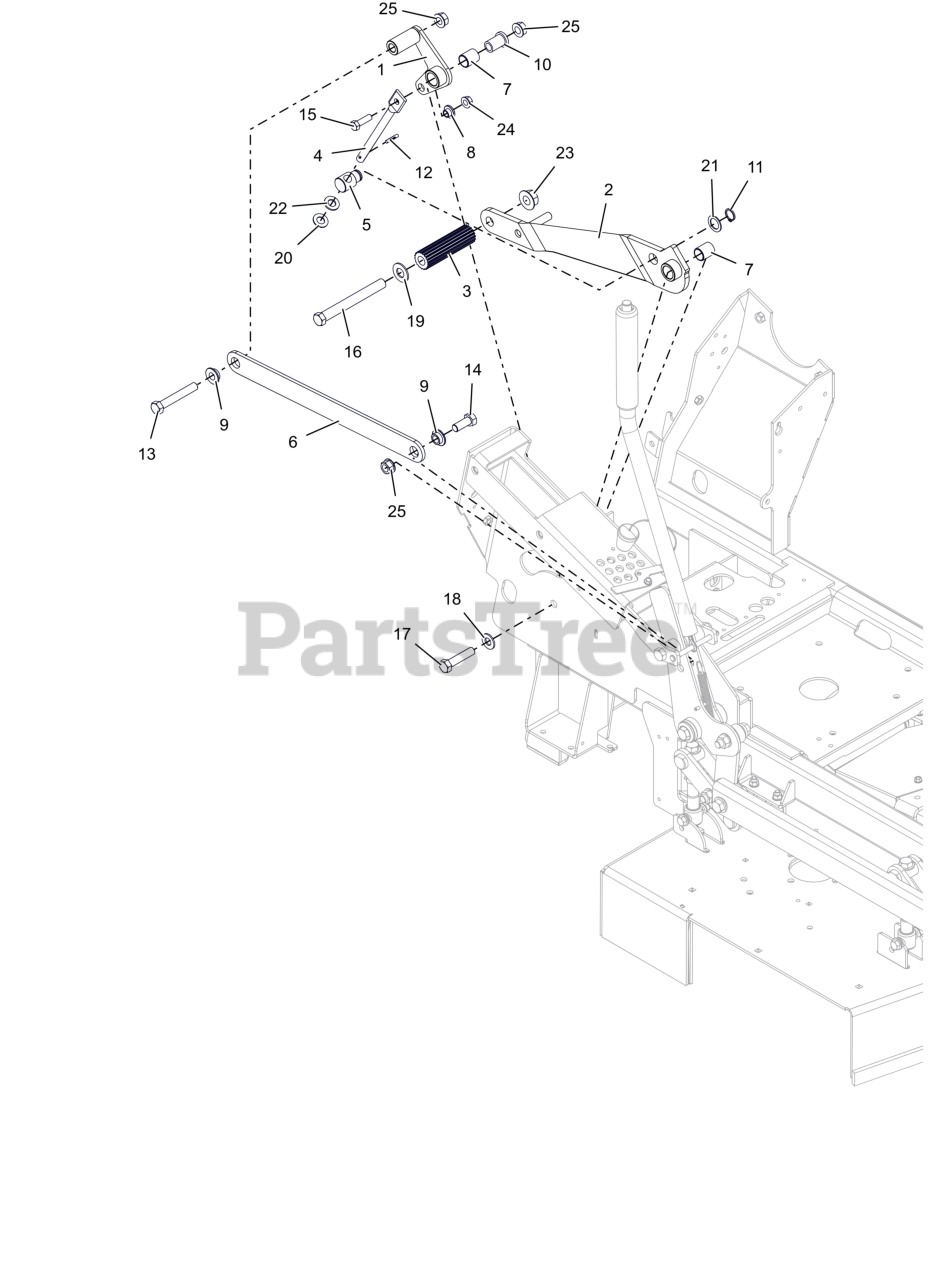

994303 - Ariens Arrow 36" Stand-On Mower, Kawasaki FS (SN: 000101 & Above) Deck Lift Foot Assist Parts Diagram

Arrow 36" Stand-On Mower, Kawasaki FS

Deck Lift Foot Assist Parts Diagram

  • Title

1

Ariens 05199651

WLDMT- PIVOT BRKT

$112.99

$

Usually ships in 4-12 days

0

2

Ariens 05272651

WLDMT, DECK LIFT FOOT ASSIST (BLACK)

$158.99

$

Usually ships in 4-12 days

0

3

Ariens 05120951

ROD, FOOT PEDAL (BLACK)

$23.99

$

Usually ships in 4-12 days

0

4

Ariens 05199300

LINK, HOC FOOT

$26.99

$

Usually ships in 4-12 days

0

5

Ariens 05199400

TRUNNION-DECK LIFT FOOT ASSIST

$40.99

$

Usually ships in 4-12 days

0

6

Ariens 05247351

LINK, DECK LIFT FOOT ASSIST (BLACK)

$21.99

$

Usually ships in 4-12 days

0

7

Ariens 05435900

BRG, .750 X .875 X 1.000

$6.99

$

In Stock, Qty 20+

0

8

Ariens 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 8

0

9

Ariens 05501135

BSHG, FLANGE .515X.750X.420X1.12

$18.99

$

Usually ships in 4-12 days

0

10

Ariens 05527200

BSHG-FLG .515X.746X1.290X1.000

$31.99

$

Usually ships in 4-12 days

0

11

Ariens 05714600

RG-RTNG-EXT .689X.078

$2.99

$

In Stock, only 4 left!

0

12

Ariens 05807200

PIN-GRV .188X1.00 TP E

$9.99

$

Usually ships in 4-12 days

0

13

Ariens 05901634

BLT,HEX .50-13X3.25 G5 ZCC

$3.99

$

In Stock, only 2 left!

0

14

Ariens 05901637

BLT,HEX .50-13X1.25 G5 ZCC

$3.49

$

In Stock, Qty 6

0

15

Ariens 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.99

$

In Stock, Qty 9

0

16

Ariens 05901730

BLT, HEX .62-11X5.50 G5 FBP

$7.49

$

Usually ships in 4-12 days

0

17

Ariens 05901835

BLT, HEX .50-13X2.25 G5 ZCC

$3.99

$

In Stock, only 2 left!

0

18

Ariens 06401015

WSHR,FLT .531X1.062X.095 ZCC

$1.49

$

In Stock, Qty 10

0

19

Ariens 06401039

WSHRFLT 5/8SAE CARBHARD FBP

$3.99

$

Usually ships in 4-12 days

0

20

Ariens 06401115

WSHR, FLT .531X1.00X.063 ZCC

$0.99

$

In Stock, only 2 left!

0

21

Ariens 06401119

WSHR, FLT .754X1.125X.062 ZCC

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06401209

WSHR, RUBBER .531 X 1.000 X .094

$7.49

$

Usually ships in 4-12 days

0

23

Ariens 06500835

NUT,FLG-TOP LK .625-11 FBP

$7.49

$

Usually ships in 4-12 days

0

24

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 14

0
