994303 - Ariens Arrow 36" Stand-On Mower, Kawasaki FS (SN: 000101 & Above) Wheels and Casters - 36" Parts Diagram

Arrow 36" Stand-On Mower, Kawasaki FS

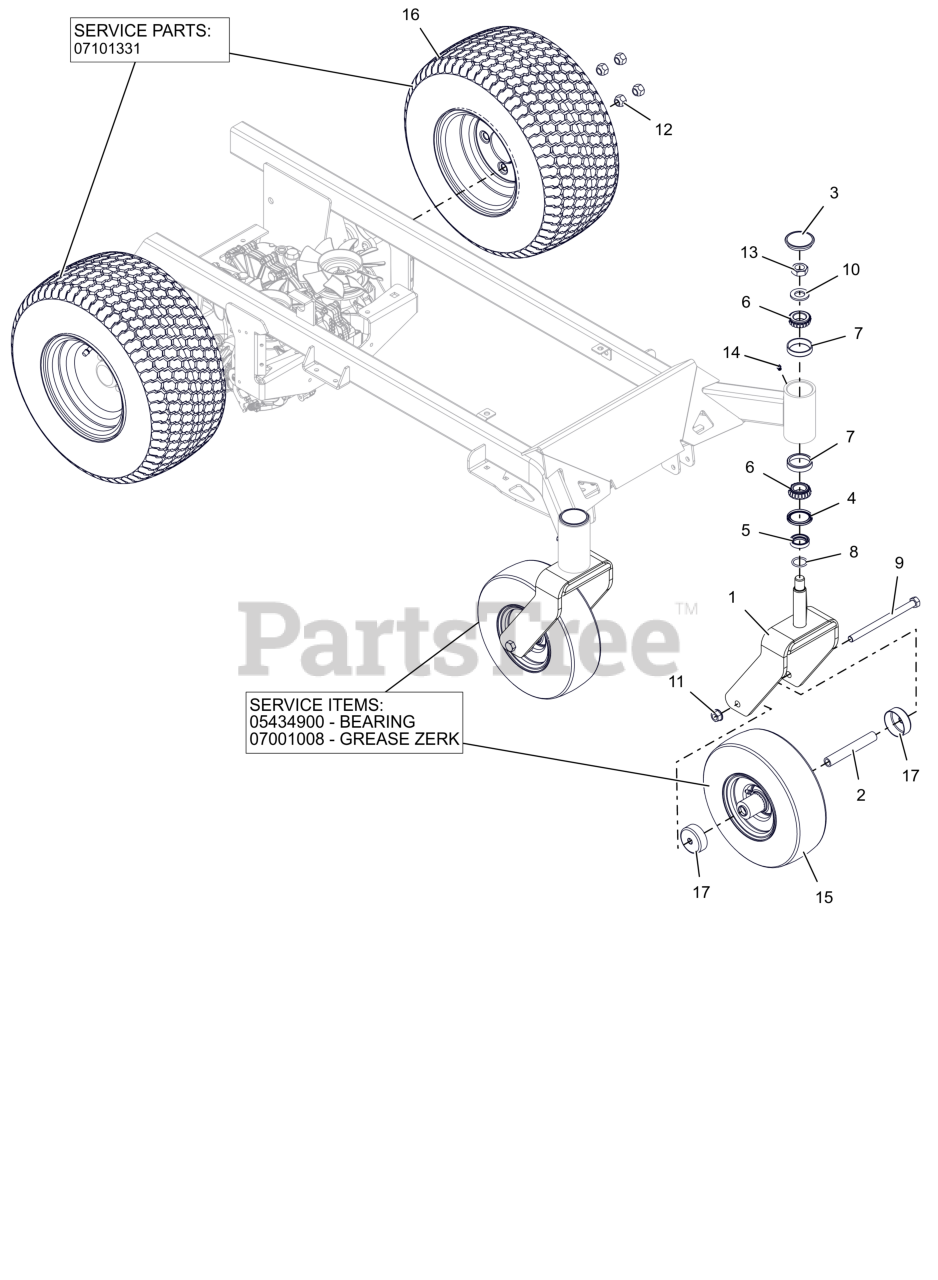

Wheels and Casters - 36" Parts Diagram

  • Title

1

Ariens 05257053

WLDMT, CASTER FORK

$174.99

$

Usually ships in 4-12 days

0

2

Ariens 00278500

SPACER, ROLLED WHEEL

$15.99

$

In Stock, Qty 20+

0

3

Ariens 00456800

CAP, DUST

$18.99

$

In Stock, Qty 5

0

4

Ariens 00531400

BEARING SEAL 1.5 X 2 X .18

$10.99

$

In Stock, Qty 20+

0

5

Ariens 04720200

SPCR, CASTER FORK (1.00)

$26.99

$

In Stock, only 1 left!

0

6

Ariens 05406900

BRG-CONE 1.0X.58

$20.99

$

In Stock, Qty 20+

0

7

Ariens 05407000

BRG-CUP1.980X.420

$18.99

$

In Stock, Qty 20+

0

8

Ariens 05610000

O-RING 1.000X1.250X

$3.99

$

In Stock, only 2 left!

0

9

Ariens 05901917

BLT, HEX .50-13X7.00 G5 ZCC

$8.49

$

In Stock, only 2 left!

0

10

Ariens 06401140

WSHR, FLT .812X1.469X.134 ZCC

$1.99

$

In Stock, Qty 14

0

11

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06500926

NUT, WHEEL .50-20 ZCC

$1.99

$

In Stock, Qty 20+

0

13

Ariens 06500933

NUT, JAM-TOP LK .750-16 ZCC

$4.99

$

In Stock, Qty 11

0

14

Ariens 07001727

FTG, .25-28 FLUSH MNT GREASE

$3.99

$

In Stock, Qty 8

0

15

Ariens 07101233

TIRE/WHEEL, 11 X 4-5

$106.99

$

Usually ships in 4-12 days

0

15

Ariens 05434900

BRG-BALL .752X1.380X.500

Note: Component Service Part

$15.99

$

In Stock, Qty 16

0

15

Ariens 07001008

1/4-28 EXTENDED GREASE FITTING

Note: Component Service Part

$14.99

$

In Stock, only 3 left!

0

15

Ariens 07520000

VALVE STEM ASS'Y

Note: Component Service Part

$2.99

$

In Stock, only 2 left!

0

15

Ariens 07108600

TIRE TUBE, 11/4.0-5 4 PLY TR87 90 BENT VALVE

Note: Optional Component Service Part

$12.99

$

In Stock, Qty 7

0

16

Ariens 07101330

ASSM TIRE\WHEEL, 18 X 8.50 - R8

$217.99

$

Usually ships in 4-12 days

0

16

Ariens 07101331

TIRE, 18X8.50-R8

Note: Component Service Part

$157.99

$

In Stock, only 1 left!

0

16

Ariens 07520000

VALVE STEM ASS'Y

Note: Component Service Part

$2.99

$

In Stock, only 2 left!

0

16

Ariens 07108800

TIRE TUBE 18/6.50/8.50/9.50-8, 20/8.00/10.00-8 4 PLY TR13 STRAIGHT VALVE

Note: Optional Component Service Part

$36.99

$

Usually ships in 4-12 days

0

16

Ariens 07520000

VALVE STEM ASS'Y

$2.99

$

In Stock, only 2 left!

0

17

Ariens 09357800

SHIELD, WHEEL BEARING

$12.99

$

In Stock, Qty 20+

0
