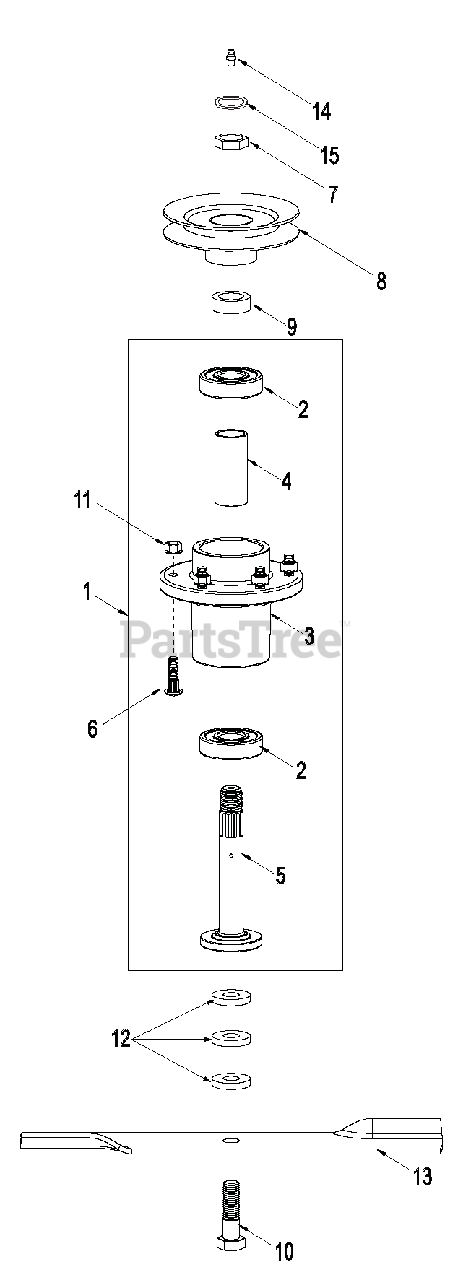

994401 (EFZKA1934S) - Ariens Scorpion 34" Stand-On Mower, 19hp Kawasaki (SN: 000101 & Above) Spindle Parts Diagram

Scorpion 34" Stand-On Mower, 19hp Kawasaki

Spindle Parts Diagram

  • Title

1

Ariens 00200262

ASSY, SPINDLE S/O

Note: Includes items 2, 3, 4, 5, 6, 14

$294.99

$

In Stock, only 2 left!

0

2

Ariens 00200046

BEARING, 6305LLC

$29.99

$

Usually ships in 4-12 days

0

3

Ariens 00200042

HOUSING, SPINDLE W/STUDS

$96.99

$

Usually ships in 4-12 days

0

4

Ariens 00200044

SPACER, 1.250X1.000X2.780

$30.99

$

Usually ships in 4-12 days

0

5

Ariens 00200196

SHAFT, SPINDLE 3/4-16

$

$

Not available

6

Ariens 00200045

BOLT, 3/8-16X1.25RDHD RIBNKS/O

$7.49

$

Usually ships in 4-12 days

0

7

Ariens 00964024

LOCKNUT, 3/4-16 CROWN PL
(Superseded to 06500031)

Note: (Special)

$3.99

$

In Stock, Qty 18

0

8

Pulley, Cutter Housing - See Mower Assembly Pages

Note: See Mower Assembly

$

$

Not available

9

Ariens D13024

SPACER, SPINDLE TOP-PULLEY

$14.99

$

In Stock, only 2 left!

0

10

Ariens 00967348

BOLT, 5/8-11 X 2.00 HEX 8 Y
(Superseded to 05901725)

$6.49

$

Usually ships in 4-12 days

0

11

Ariens 00960502

NUT, 3/8-16 STD HEX GR5 Y

$

$

Not available

12

Ariens D18055

WASHER, .630X1.50X.250 FLAT Y
(Superseded to 06401033)

$7.49

$

In Stock, only 4 left!

0

13

Ariens GDU10231

BLADE, 18.000 X .80 LIFT

$31.99

$

In Stock, Qty 20+

0

13

Ariens GDU10230

BLADE, 16.500 X .80 LIFT

$29.99

$

In Stock, only 3 left!

0

14

Ariens 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.99

$

In Stock, only 2 left!

0

15

Ariens 00200263

RING RETAINER S/O

$7.49

$

Usually ships in 4-12 days

0
