994401 (EFZKA1934S) - EverRide Pro Walk-Behind Mower (SN: 000101 & Above) Console Parts Diagram

Pro Walk-Behind Mower

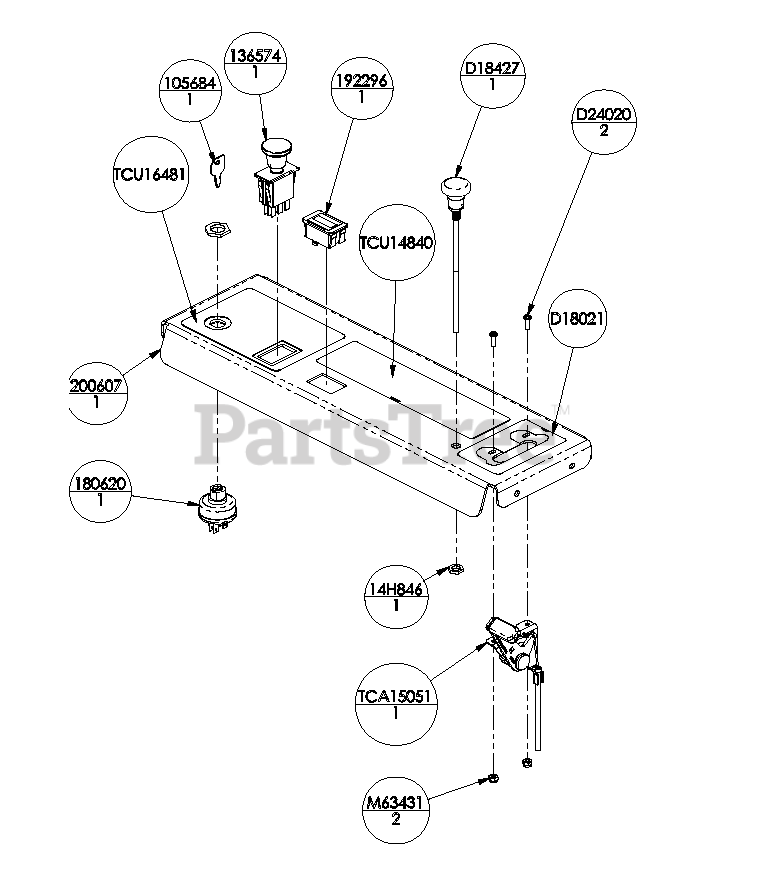

Console Parts Diagram

  • Title

1

Gravely D18021

DECAL, THROTTLE

$27.99

$

Usually ships in 4-12 days

0

2

Gravely D18427

CABLE, CHOKE

$54.99

$

Usually ships in 4-12 days

0

3

Gravely D24020

SCREW, 8-32X .50 PAN PHL Y

$

$

Not available

4

Gravely M63431

NUT, 8-32 ELASTIC STOP

$

$

Not available

5

Gravely TCA15051

CABLE, THROTTLE

$22.99

$

Usually ships in 4-12 days

0

6

Gravely TCU14840

DECAL, GENERAL CAUTION

$

$

Not available

7

Gravely TCU16481

DECAL, PTO & KEY SWITCH

$

$

Not available

8

105684

KEY

$

$

Not available

9

136574

SWITCH, PTO ENGAGEMENT

$

$

Not available

10

Gravely 14H846

NUT, 3/8 UNF HEX GR 5 ZN

$

$

Not available

11

180620

SWITCH, KEY - 3 POSITION

$

$

Not available

12

192296

METER, HOUR - LCD ALT. (ENM)

Note: (ENM)

$

$

Not available

13

Gravely 03731502

TOP, CONSOLE W/DECALS

$

$

Not available
