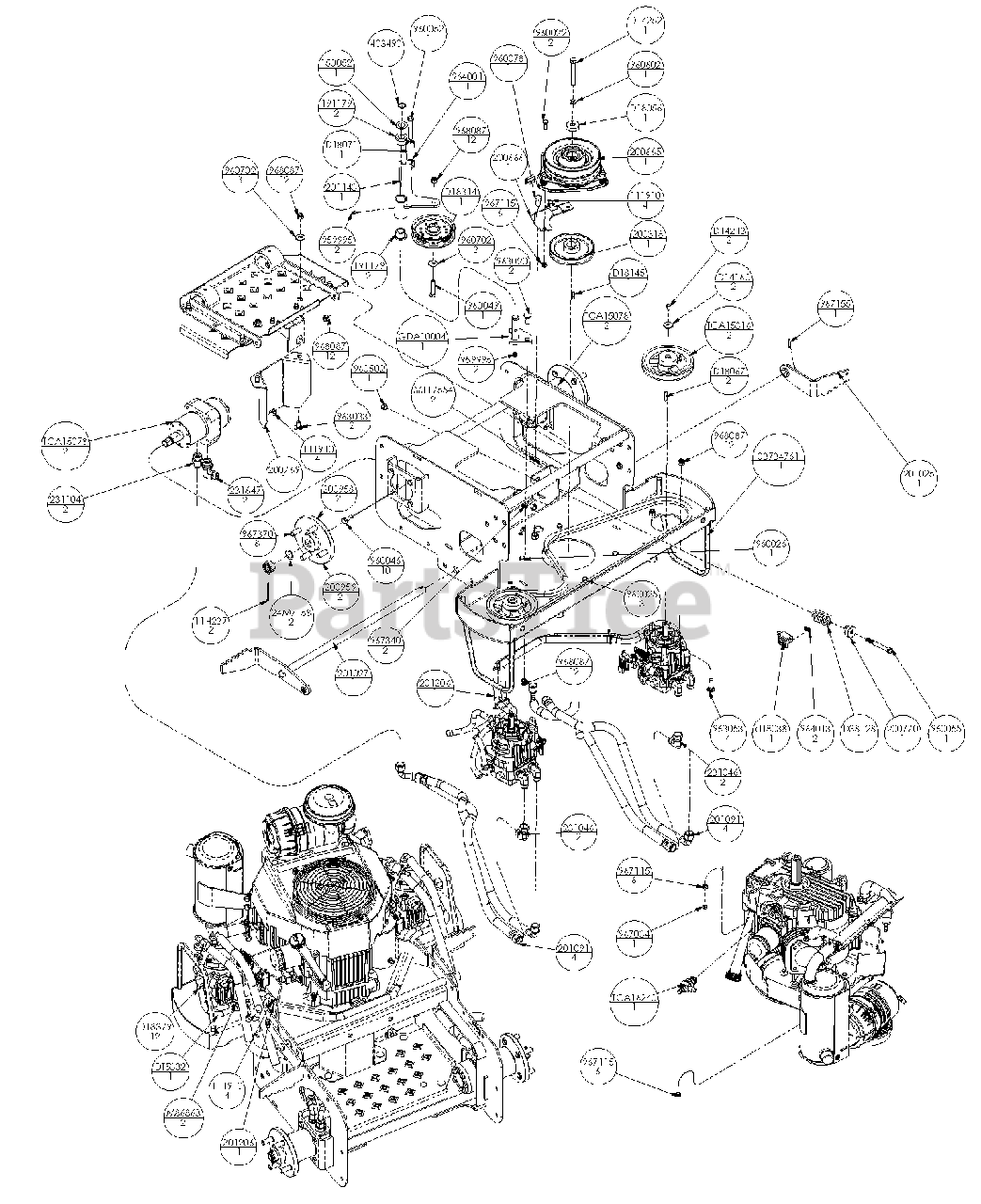

994401 (EFZKA1934S) - EverRide Pro Walk-Behind Mower (SN: 000101 & Above) Engine, Hydraulic and Mainframe Parts Diagram

Pro Walk-Behind Mower

Engine, Hydraulic and Mainframe Parts Diagram

  • Title

1

Gravely DT5332

HOSE, 3/8 SAE30R7 FUEL & OIL

$5.99

$

Usually ships in 4-12 days

0

2

Gravely D14160

WASHER, .250 WIDE HEAVY FLAT Y

$3.49

$

Usually ships in 4-12 days

0

3

Gravely D14213

BOLT, M6 X 1.00 X 10 HEX 8.8 Y

$

$

Not available

4

Gravely D14252

BOLT, 7/16-20X3.00 HEX 5 Y
(Superseded to 05900037)

$6.99

$

In Stock, only 3 left!

0

5

Gravely D18038

SWITCH (N.0.)

Note: (N.0.)

$4.99

$

Usually ships in 4-12 days

0

6

Gravely D18056

SPACER, .468 X 1.38 X .375 Y

$20.99

$

Usually ships in 4-12 days

0

7

Gravely D18067

KEY, M5 X M5 X M30 RD

$

$

Not available

8

Gravely D18071

SPRING, EXT .900X.135X4.50 Y

$11.99

$

Usually ships in 4-12 days

0

9

Gravely D18314

PULLEY, V-BELT 4.00X.379 W/BRG
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

10

Gravely D18379

CLAMP, HOSE - 1/2" PINCH

$3.99

$

Usually ships in 4-12 days

0

11

Gravely D38128

SPRING, COM 1.22X.162X2.50 Y

$18.99

$

Usually ships in 4-12 days

0

12

Gravely GDA10004

WLDT, PIVOT IDLER MOUNT

$

$

Not available

13

Gravely M117554

DECAL, WARNING - HOT SURFACES

$

$

Not available

14

Gravely M86863

FTG, TUN 3/8 HOSE

$

$

Not available

15

Gravely TCA15078

MOTOR, WHEEL HGM-12P-7172

$

$

Not available

16

Gravely TCA15316

ASSY, PUMP PULLEY W/SET SCREW

$47.99

$

Usually ships in 4-12 days

0

17

Gravely TCA16240

FITTING, OIL DRAIN

$

$

Not available

18

Gravely 11H237

PIN, COT .125 X 2.00 EXTP Y

$

$

Not available

19

111910

CABLE TIE, .15 X 8.50

$

$

Not available

20

150052

BUSHING, MACH .750X1.25X.048 Y

$

$

Not available

21

191179

BRG, FLG .750 X 1.00 X .750 BRNZ

$

$

Not available

22

200318

PULLEY, V-BELT 4.78PD X 1.000 W/KEY

$

$

Not available

23

200665

CLUTCH ASSY, OGURA

$

$

Not available

24

200666

PLATE, CLUTCH DOG

$

$

Not available

25

200769

COVER, OPC

$

$

Not available

26

200770

WASHER, SPRING Y

$

$

Not available

27

200958

WHEEL HUB, MACHINED

$

$

Not available

28

200959

ASSY, REAR WHEEL HUB (Includes 20958 & 967370)

Note: (Includes 20958 & 967370)

$

$

Not available

29

201009

BELT, HA 68.2 EL AMD OHR

$

$

Not available

30

201025

WLDT, RH BRAKE ARM

$

$

Not available

31

201027

WLDT, LH BRAKE SHAFT

$

$

Not available

32

201091

HOSE, HYD 1/2 X 26 1/2 EZFLEX

$

$

Not available

33

Gravely 03734761

WLDT, FRAME 34

$

$

Not available

34

201143

WLDT, IDLER PIVOT

$

$

Not available

35

201206

ABRASION SLEEVE

$

$

Not available

36

231046

FTG, ADP MJIC-FSWJIC 6500-08-08

$

$

Not available

37

231104

FTG, ADP 3/4-16FJIC X 7/8-14MOR

$

$

Not available

38

231647

FTG, ADP JIC-ORB 2062-10-8S

$

$

Not available

39

Gravely 24M7158

SHIM, .020X.787X1.102

$15.99

$

Usually ships in 4-12 days

0

40

403490

SNAP RING, .750 X .042 EXT

$

$

Not available

41

959995

FTG, 1/4-28 STRGT GREASE ZERK

$

$

Not available

42

960022

BOLT, 5/16-18 X .750 HEX 5 Y

$

$

Not available

43

960025

BOLT, 5/16-18 X 1.50 HEX 5 Y

$

$

Not available

44

960026

BOLT, 5/16-18 X 1.75 HEX 5 Y

$

$

Not available

45

960046

BOLT, 3/8-16 X 1.00 HEX 5 Y

$

$

Not available

46

960049

BOLT, 3/8-16 X 1.75 HEX 5 Y

$

$

Not available

47

960052

BOLT, 3/8-16 X 2.50 HEX 5 Y

$

$

Not available

48

960055

BOLT, 3/8-16 X 3.25 HEX 5 Y

$

$

Not available

49

960078

BOLT, 7/16-14 X .750 HEX 5 Y

$

$

Not available

50

960502

NUT, 3/8-16 STD HEX GR5 Y

$

$

Not available

51

960602

WASHER, .375 MED SPRG LOCK Y

$

$

Not available

52

960702

WASHER, .375 REG FLAT Y

$

$

Not available

53

963020

BOLT, 3/8-16 X 1.00 CRG 5 Y

$

$

Not available

54

963033

Bolt,3/8-16x3/4 Car Gr5 LNnk

$

$

Not available

55

963053

BOLT, 3/8-16 X 1.25 CRG 5 Y

$

$

Not available

56

964001

NUT, 3/8-16 JAM GR5 Y

$

$

Not available

57

964013

LOCKNUT, 10-24 NYLOC Y

$

$

Not available

58

967034

NUT, 5/16-18 JAM GR5 Y

$

$

Not available

59

967115

LOCKNUT, 5/16-18 NYLOC Y

$

$

Not available

60

967155

PIN, ROL .156 X 1.00

$

$

Not available

61

967340

SCREW, 10-24 X .625 PAN PHL MAC Y

$

$

Not available

62

967370

BOLT, 1/2-20 x 1.66 SPC

$

$

Not available

63

968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

64

Gravely D18145

KEY, .250 X .250 X .995 TPR

$7.49

$

Usually ships in 4-12 days

0
