994401 (EFZKA1934S) - EverRide Pro Walk-Behind Mower (SN: 000101 & Above) Foot Plate Parts Diagram

Pro Walk-Behind Mower

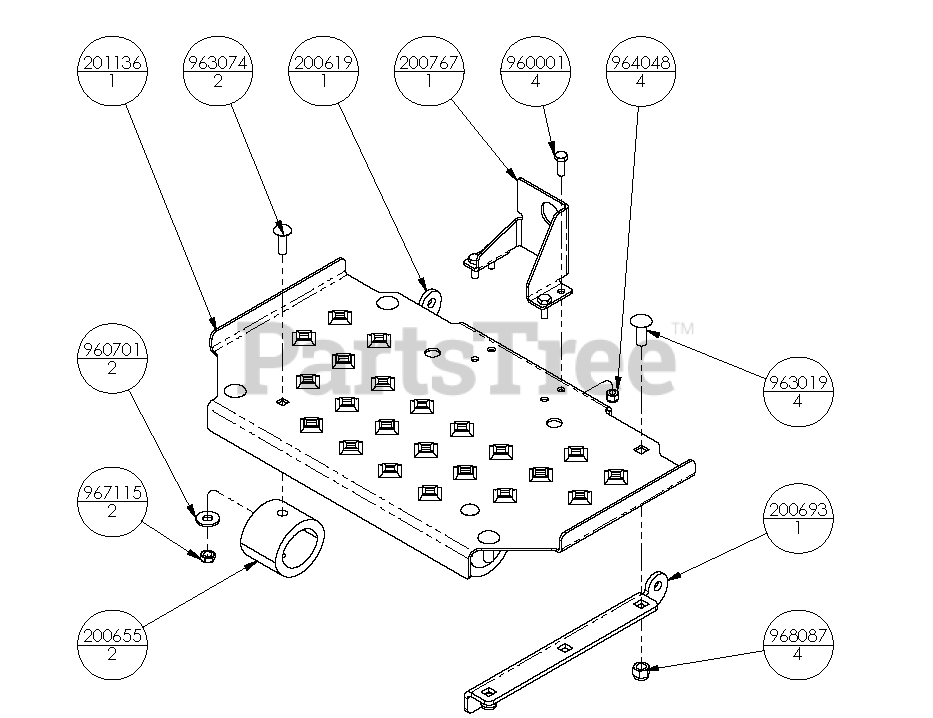

Foot Plate Parts Diagram

  • Title

1

200619

PLATE, PLATFORM TAB LH

$

$

Not available

2

200655

BUMPER, MINER GBR-6

$

$

Not available

3

200693

PLATE, PLATFORM TAB

$

$

Not available

4

200767

ANCHOR, OPC

$

$

Not available

5

201136

PLATFORM

$

$

Not available

6

960001

BOLT, 1/4-20 X .750 HEX 5 Y

$

$

Not available

7

960701

WASHER, .313 REG FLAT Y

$

$

Not available

8

963019

BOLT, 3/8-16 X 1.00 CRG 5 SN Y

$

$

Not available

9

963074

BOLT, 5/16-18 X 1.00 CRG 2 Y

$

$

Not available

10

964048

LOCKNUT, 1/4-20 NYLOC Y

$

$

Not available

11

967115

LOCKNUT, 5/16-18 NYLOC Y

$

$

Not available

12

968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available
