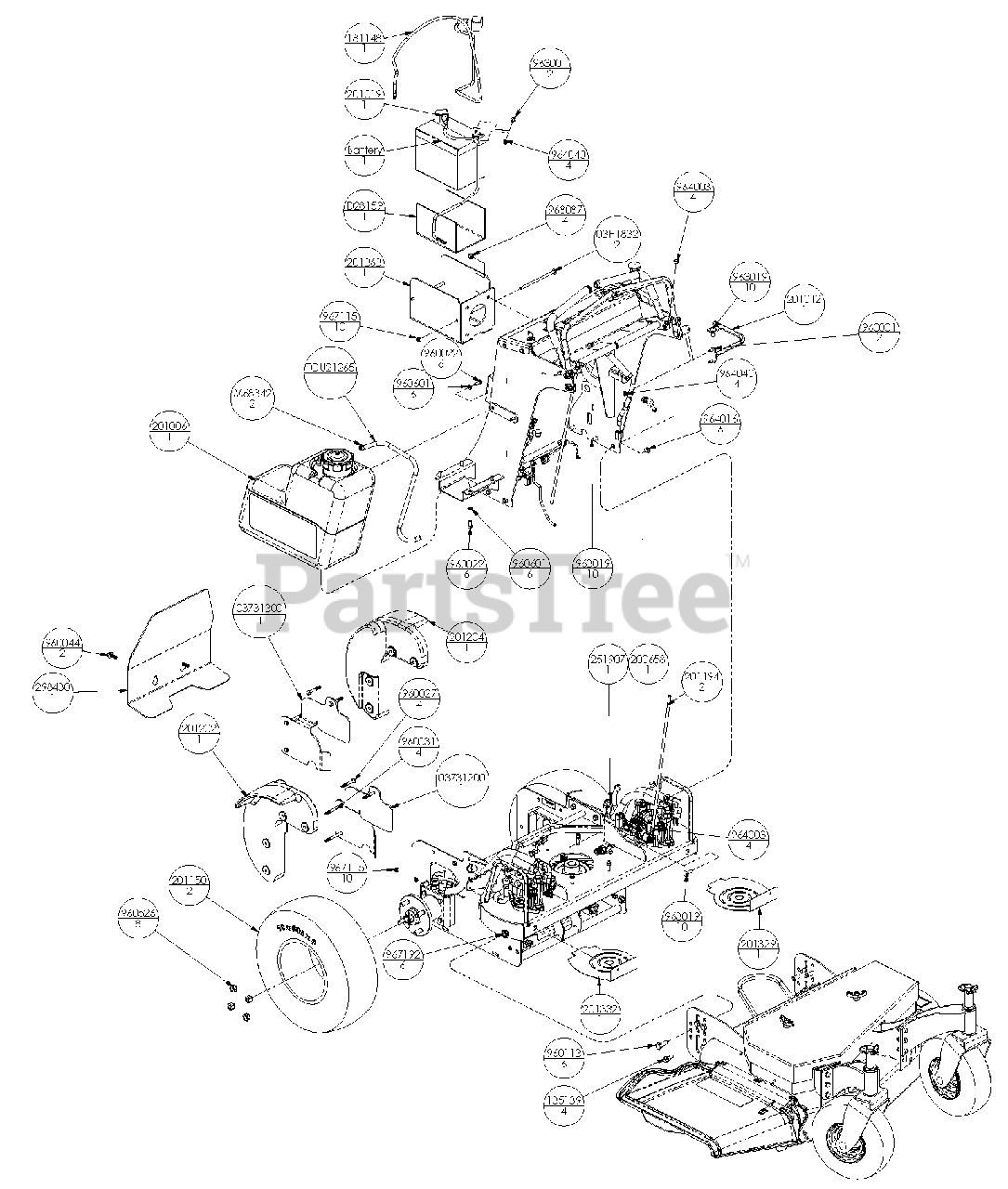

994401 (EFZKA1934S) - EverRide Pro Walk-Behind Mower (SN: 000101 & Above) Main Frame Parts Diagram

Pro Walk-Behind Mower

Main Frame Parts Diagram

  • Title

1

Gravely D28159

STRIP, BATTERY INSULATOR

$15.99

$

Usually ships in 4-12 days

0

2

Gravely M68342

CLAMP, HOSE (RED) #

Note: (RED) #

$

$

Not available

3

Gravely TCU21265

HOSE, 1/4" ID LOW PERM FUEL 50

$

$

Not available

4

Gravely 03H1832

BOLT, 5/16-18 X 6.00 CRG 2 Y

$

$

Not available

5

135139

BOLT, 1/2 X 1.06 X 3/8-16 SLD 5 Y

$

$

Not available

6

181148

CABLE, BATTERY STARTER - 48"

$

$

Not available

7

191832

BATTERY, 12V-U1-CCA270MIN

$

$

Not available

8

200658

PIN, CVS SPG 3/8" YOKE SPEC Y

$

$

Not available

9

201006

TANK, FUEL SCORPION ASSEMBLY

$

$

Not available

10

201012

WLDT, RESERVIOR GUARD

$

$

Not available

11

201019

CABLE, BATTERY - 25" GROUND

$

$

Not available

12

201363

CONSOLE BATTERY BRACKET

$

$

Not available

13

201329

SHIELD, LH PUMP

$

$

Not available

14

201332

SHIELD, RH PUMP

$

$

Not available

15

Gravely 03731200

SHIELD, RH MOTOR

$

$

Not available

16

Gravely 03731300

SHIELD, LH MOTOR

$

$

Not available

17

201150

ASSY, TIRE/WHL 18/6.5X8 SLVR

$

$

Not available

18

298430

SHIELD, ENGINE

$

$

Not available

19

201194

ROD, CONTROL 5/16 X 22.75 Y

$

$

Not available

20

201202

RH CAST WEIGHT MACHINED

$

$

Not available

21

201204

LH CAST WEIGHT MACHINED

$

$

Not available

22

251907

YOKE, 3/8-24 RH ADJUSTABLE

$

$

Not available

23

960001

BOLT, 1/4-20 X .750 HEX 5 Y

$

$

Not available

24

960022

BOLT, 5/16-18 X .750 HEX 5 Y

$

$

Not available

25

960027

BOLT, 5/16-18 X 2.00 HEX 5 Y

$

$

Not available

26

960031

BOLT, 5/16-18 X 3.00 HEX 5 Y

$

$

Not available

27

960044

BOLT, 3/8-16 X 1.00 FGH 8 Y

$

$

Not available

28

960113

BOLT, 1/2-13 X 1.25 HEX 5 Y

$

$

Not available

29

960526

NUT, 1/2-20 LUG C

$

$

Not available

30

Gravely 960601

WASHER, .313 MED SPRG LOCK Y

$

$

Not available

31

Gravely 963001

BOLT, 1/4-20 X .625 WSH Y

$

$

Not available

32

963019

BOLT, 3/8-16 X 1.00 CRG 5 SN Y

$

$

Not available

33

964003

NUT, 5/16-24 STD HEX GR5 Y

$

$

Not available

34

964016

LOCKNUT, 3/8-16 WHIZ Y

$

$

Not available

35

964040

LOCKNUT, 1/4-20 WHIZ Y

$

$

Not available

36

967115

LOCKNUT, 5/16-18 NYLOC Y

$

$

Not available

37

967192

LOCKNUT, 1/2-13 WHIZ GR5 Y

$

$

Not available

38

968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available
