994401 (EFZKA1934S) - EverRide Pro Walk-Behind Mower (SN: 000101 & Above) Spindle Parts Diagram

Pro Walk-Behind Mower

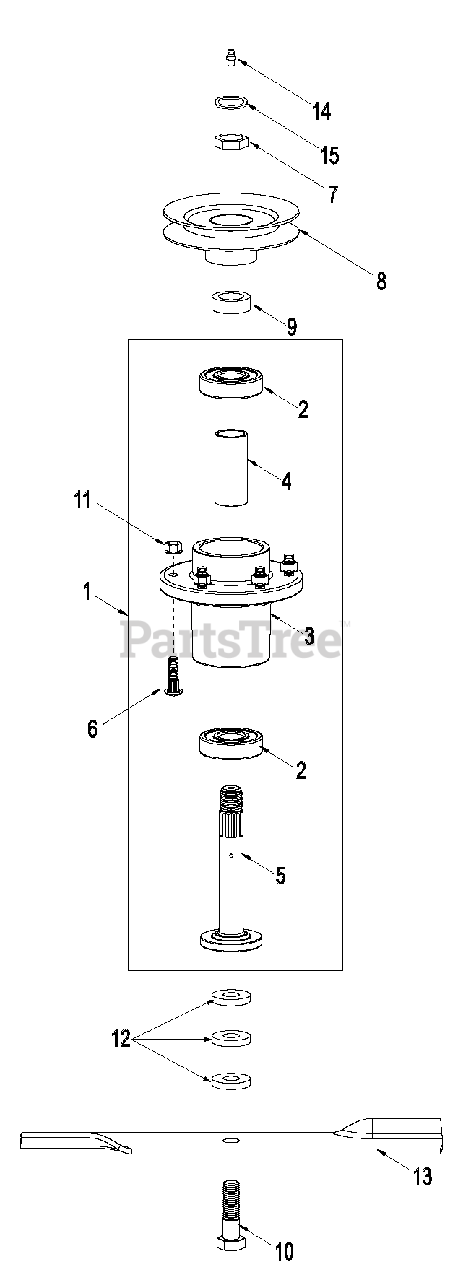

Spindle Parts Diagram

  • Title

1

200262

Spindle Assembly - Includes items 2, 3, 4, 5, 6, 14

$

$

Not available

2

200046

Ball Bearing

$

$

Not available

3

200042

Housing

$

$

Not available

4

200044

Spacer - 1.000 x 1.250 x 2.772

$

$

Not available

5

200196

Shaft, Spindle

$

$

Not available

6

200045

Bolt, 3/8-16 x 1.25 Rib

$

$

Not available

7

964024

Nut, Pulley (Special)

Note: (Special)

$

$

Not available

8

Gravely N/A

Pulley, Cutter Housing - See Mower Assembly Pages

$

$

Currently unavailable

9

Gravely D13024

Spacer, Pulley

$14.99

$

In Stock, only 2 left!

0

10

967348

Bolt, Blade - 5/8-11 x 2.00 Grade 8

$

$

Not available

11

960502

Nut, 3/8-16 Std Hex Gr5

$

$

Not available

12

Gravely D18055

Spacer, Blade Bolt
(Superseded to 06401033)

$7.49

$

In Stock, only 4 left!

0

13

Gravely GDU10231

18.0" Blade, LH Deck

$31.99

$

In Stock, only 3 left!

0

Gravely GDU10230

16.5" Blade, RH Deck

$29.99

$

In Stock, Qty 6

0

14

959995

Zerk, Grease S/O

$

$

Not available

15

200263

Retainer Nut

$

$

Not available
