994600 (GSRKW2352S) - Great Dane Surfer Walk-Behind Mower (SN: 000101 & Above) Main Frame Assembly Parts Diagram

Surfer Walk-Behind Mower

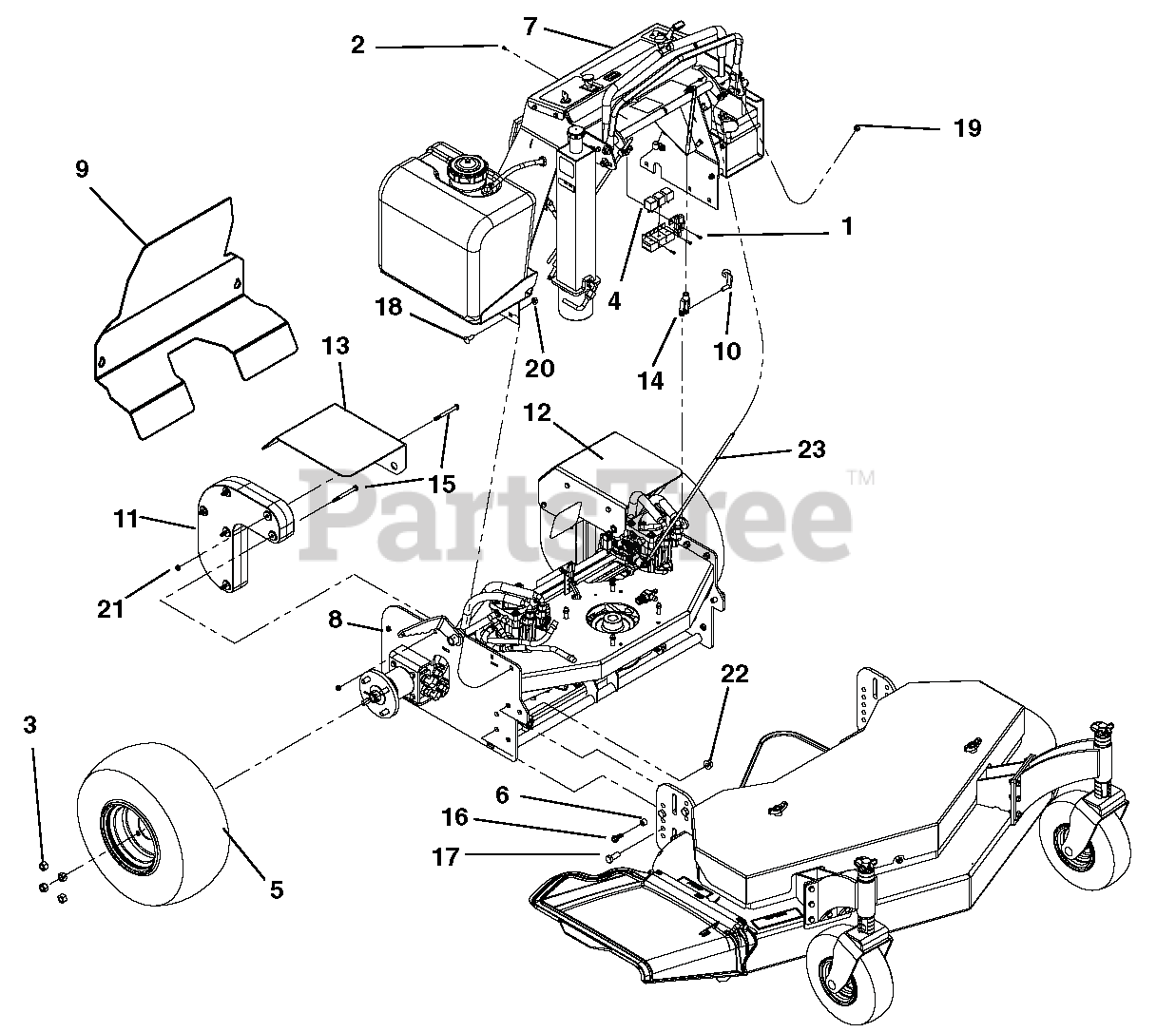

Main Frame Assembly Parts Diagram

  • Title

1

Gravely D24020

SCREW,8-32X1/2

$

$

Not available

2

Gravely M63431

#8.32 ELASTIC STOP NUT

$

$

Not available

3

Gravely 00960526

NUT, 1/2-20 LUG C
(Superseded to 06517600)

$2.49

$

In Stock, Qty 20+

0

4

Gravely 00102770

RELAY, ISO MINI ELEC.

$29.99

$

Usually ships in 4-12 days

0

5

Gravely 00200779

ASSY, TIRE/WHL 18/8.5X8 SLV

$

$

Not available

6

Gravely 00200672

SPACER, .625X.120X.400 Y

$14.99

$

Usually ships in 4-12 days

0

7

Assembly, Console (See Console Components on page 21.)

Note: (See Console Components on page 21.)

$

$

Not available

8

Gravely 03731101

POWER UNIT 48/52 (BLACK)

Note: (See Engine, Hydraulic and Mainframe Assembly on page 8.)

$

$

Not available

9

Gravely 03732640

FOOT GUARD W/DECALS GREATDANE

$

$

Not available

10

Gravely 00200658

PIN, CVS SPG 3/8" YOKE SPEC Y

$

$

Not available

11

Gravely 00200775

WEIGHT, CAST DRILLED

$

$

Not available

12

Gravely 00200737

FENDER, LH GREAT DANE

$

$

Not available

13

Gravely 00200739

FENDER, RH GREAT DANE

$

$

Not available

14

Gravely 00251907

YOKE, 3/8-24 RH ADJUSTABLE

$17.99

$

Usually ships in 4-12 days

0

15

Gravely 00960055

BOLT, 3/8-16X3.25 HEX 5 Y

$

$

Not available

16

Gravely 00960044

BOLT, 3/8-16X1.00 FGH 8 Y

$3.49

$

Usually ships in 4-12 days

0

17

Gravely 00960113

BOLT, 1/2-13X1.25 HEX 5 Y
(Superseded to 05958900)

$3.99

$

In Stock, only 3 left!

0

18

Gravely 00963019

BOLT, 3/8-16X1.00 CRG 5 SN Y

$

$

Not available

19

Gravely 00964003

NUT, 5/16-24 STD HEX GR5 Y

$

$

Not available

20

Gravely 00964016

LOCKNUT, 3/8-16 WHIZ Y
(Superseded to 06534900)

$2.49

$

In Stock, Qty 20+

0

21

Gravely 00967115

LOCKNUT, 5/16-18 NYLOC Y
(Superseded to 06500820)

$1.99

$

In Stock, Qty 5

0

22

Gravely 00967192

LOCKNUT, 1/2-13 WHIZ GR5 Y

$

$

Not available

23

Gravely D13029

ROD, CONTROL 5/16X26 Y

$46.99

$

Usually ships in 4-12 days

0
