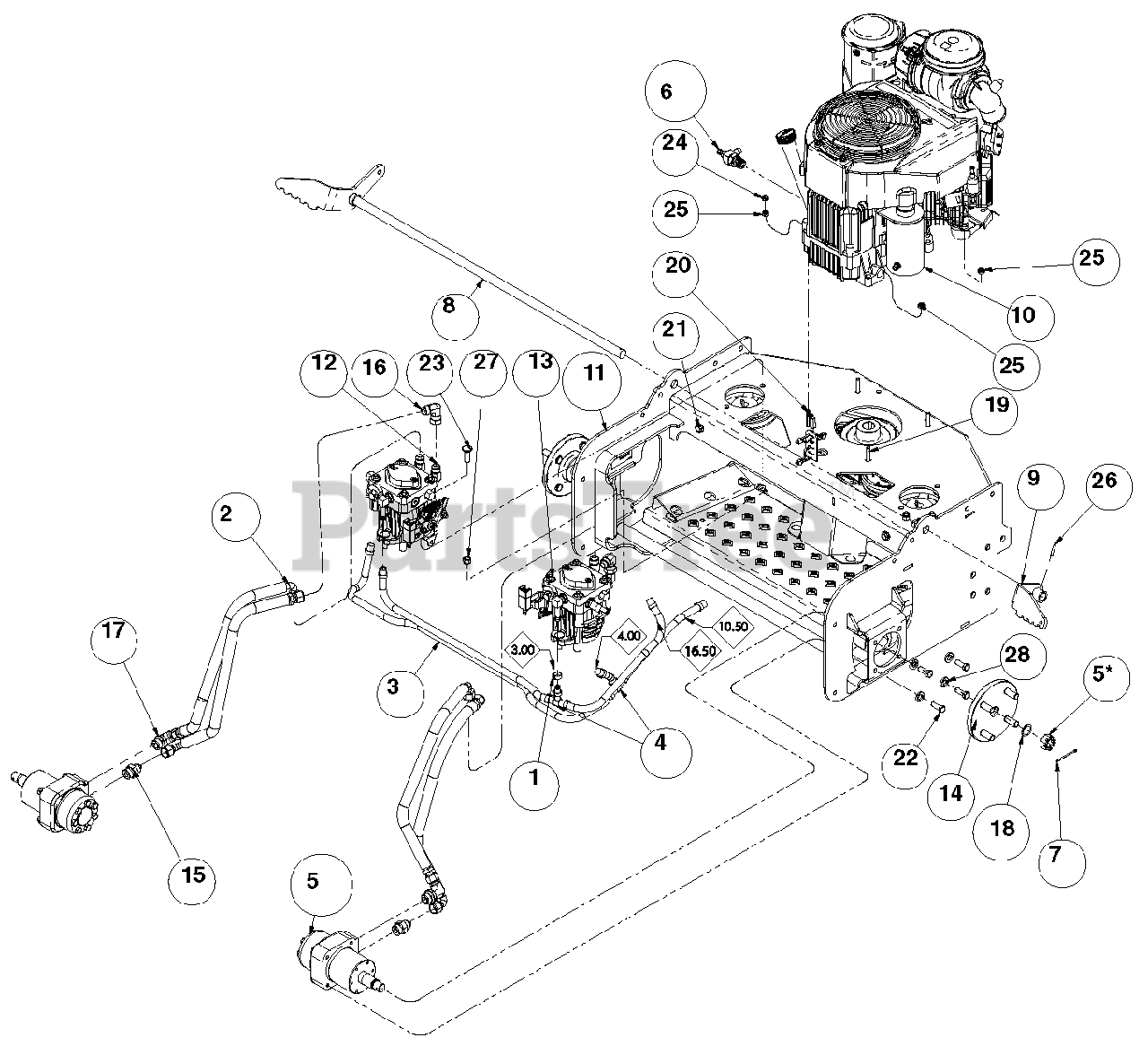

994601 (GSRKA1948S) - Great Dane Surfer Walk-Behind Mower (SN: 000101 & Above) Engine, Hydraulic And Mainframe Assembly Parts Diagram

Surfer Walk-Behind Mower

Engine, Hydraulic And Mainframe Assembly Parts Diagram

  • Title

1

Gravely D18379

CLAMP, HOSE - 1/2" PINCH

$3.99

$

In Stock, Qty 14

0

2

Gravely D18394

HOSE ASSEMBLY

$93.99

$

In Stock, only 1 left!

0

3

Gravely DT5332

HOSE, 3/8 SAE30R7 FUEL & OIL

$6.49

$

Usually ships in 4-12 days

0

4

Gravely M86863

FTG, TUN 3/8 HOSE

$

$

Not available

5

Gravely 04915500

MOTOR, HYD WHEEL
(Superseded to 05015500)

Note: (*Includes Castle Nut, tighten to 163 N.m (120 lbf-ft))

$959.99

$

Usually ships in 4-12 days

0

6

Gravely TCA16240

FITTING, OIL DRAIN #

$

$

Not available

7

Gravely 11H237

PIN,.125X2.00 ZN COTTER 1010 #

$

$

Not available

8

Gravely 00200612

WLDT, BRAKE SHAFT

$

$

Not available

9

Gravely 00200616

WLDT, RH BRAKE ARM

$

$

Not available

10

Gravely 00200675

ENGINE, KAWASAKI 19HP FH580V

Note: (994101, 105)

$

$

Not available

Gravely 00191123

ENGINE, KAWASAKI 23HP FH680V

Note: (994102)

$

$

Not available

11

Gravely 03731110

WLDT, DECK FRAME W/DCALS BLACK

$

$

Not available

12

Gravely 00200721

ASSEMBLY, HYD PUMP

Note: (See Pump Components on page 14.)

$

$

Not available

13

Gravely 00200722

ASSEMBLY, HYD PUMP

Note: (See Pump Components on page 14.)

$1612.99

$

Usually ships in 4-12 days

0

14

Gravely 00200954

ASSY, REAR WHEEL HUB

$

$

Not available

15

Gravely 00231104

FTG, ADP 3/4-16MJICX7/8-14MOR

$

$

Not available

16

Gravely 00231046

ADAPTER, 3/4 FESW X 3/4MJICX90

$

$

Not available

17

Gravely 00231647

FTG, 7/8ORB X 3/4JIC X 90

$

$

Not available

18

Gravely 00150052

BUSHING, MACH .750X1.25X.048 Y

$5.49

$

Usually ships in 4-12 days

0

19

Gravely 00960025

BOLT, 5/16-18X1.50 HEX 5 Y

$

$

Not available

20

Gravely 00960026

BOLT, 5/16-18X1.75 HEX 5 Y
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

21

Gravely 00960044

BOLT, 3/8-16X1.00 FGH 8 Y

$2.99

$

Usually ships in 4-12 days

0

22

Gravely 00960046

BOLT, 3/8-16X1.00 HEX 5 Y
(Superseded to 05948700)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 00963053

BOLT, 3/8-16X1.25 CRG 5 Y

$

$

Not available

24

Gravely 00967034

NUT, 5/16-18 JAM GR5 Y

$

$

Not available

25

Gravely 00967115

LOCKNUT, 5/16-18 NYLOC Y
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

26

Gravely 00967155

PIN, ROL .156 X 1.00

$

$

Not available

27

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

28

Gravely 00960602

WASHER, .375 MED SPRG LOCK Y

$

$

Not available
