994601 (GSRKA1948S) - Great Dane Surfer Walk-Behind Mower (SN: 000101 & Above) Hydraulic Components Parts Diagram

Surfer Walk-Behind Mower

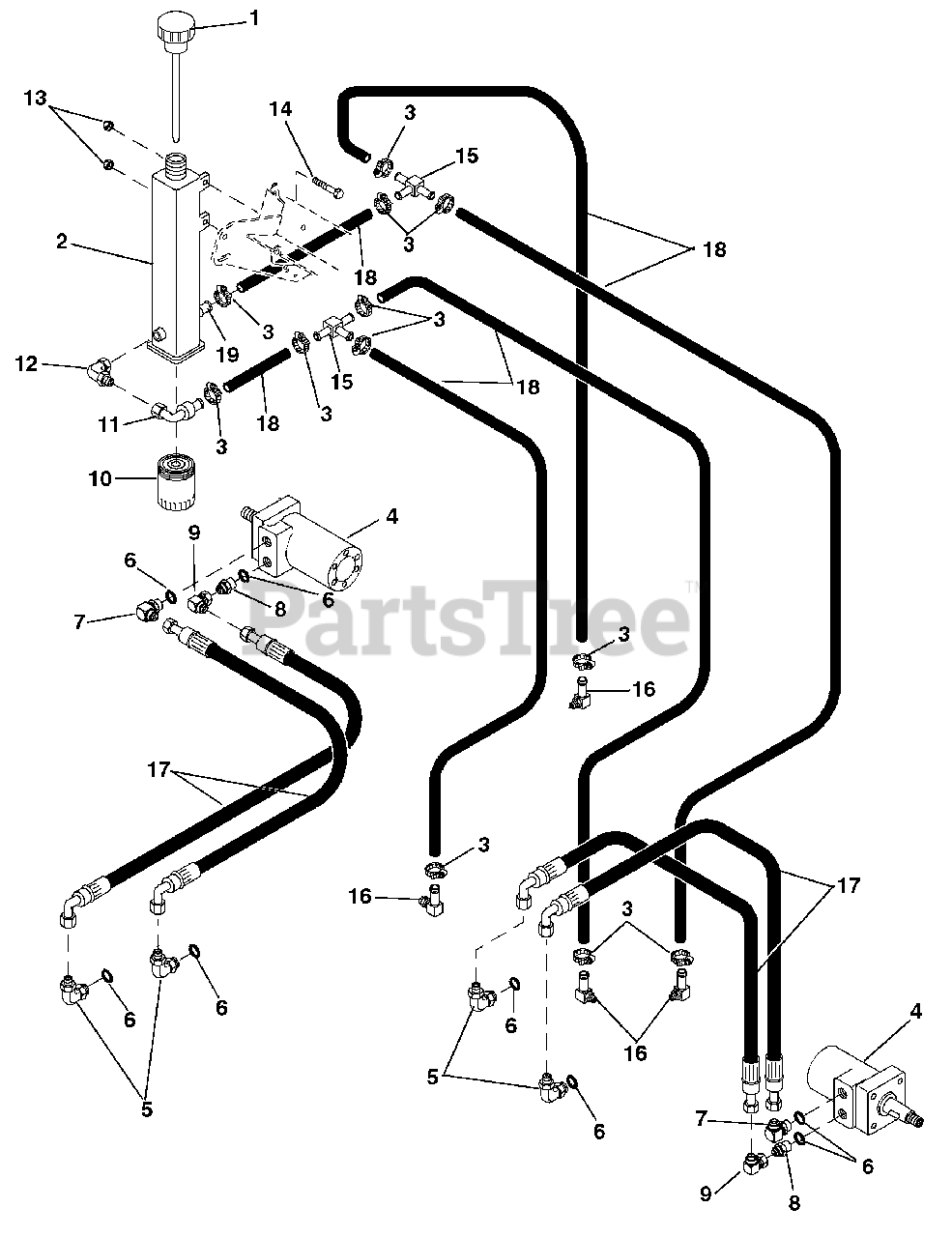

Hydraulic Components Parts Diagram

  • Title

1

Gravely TCA15122

CAP, FILLER, OIL

$27.99

$

Usually ships in 4-12 days

0

2

Gravely TCA15373

RESERVOIR, HYDRAULIC

$

$

Not available

3

Gravely D18379

CLAMP, HOSE - 1/2" PINCH

$3.99

$

In Stock, Qty 14

0

4

Gravely TCA15078

MOTOR, WHEEL HGM-12P-7172

$

$

Not available

5

Gravely D14196

FTG, 90 ADP JIC-ORB 6801-08-08

$6.49

$

Usually ships in 4-12 days

0

6

Gravely R26375

O-RING,90 DURO 41/64X13/16X.08

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 00231647

FTG, 7/8ORB X 3/4JIC X 90

$

$

Not available

8

Gravely 00231104

FTG, ADP 3/4-16MJICX7/8-14MOR

$

$

Not available

9

Gravely 00231046

ADAPTER, 3/4 FESW X 3/4MJICX90

$

$

Not available

10

Gravely GDA10137

FILTER, OIL

$29.99

$

In Stock, Qty 5

0

11

Gravely GDA10066

ELBOW FITTING

$

$

Not available

12

Gravely 00313270

FTG, 90 9/16 MOR X 9/16 MJIC

$9.99

$

Usually ships in 4-12 days

0

13

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

14

Gravely 00960045

BOLT, 3/8-16X.750 HEX 5 Y
(Superseded to 05959400)

$1.99

$

In Stock, Qty 14

0

15

Gravely M86863

FTG, TUN 3/8 HOSE

$

$

Not available

16

Gravely D24028

FTG, 90 9/16MOR X 3/8HOSE

$10.99

$

In Stock, Qty 6

0

17

Gravely D18394

HOSE ASSEMBLY

$93.99

$

In Stock, only 1 left!

0

18

Gravely DT5332

HOSE, 3/8 SAE30R7 FUEL & OIL

$6.49

$

Usually ships in 4-12 days

0

19

Gravely GDA10065

ADAPTER, STRAIGHT FITTING

$

$

Not available

Gravely 00879100

TIE STRAPS

$

$

Not available
