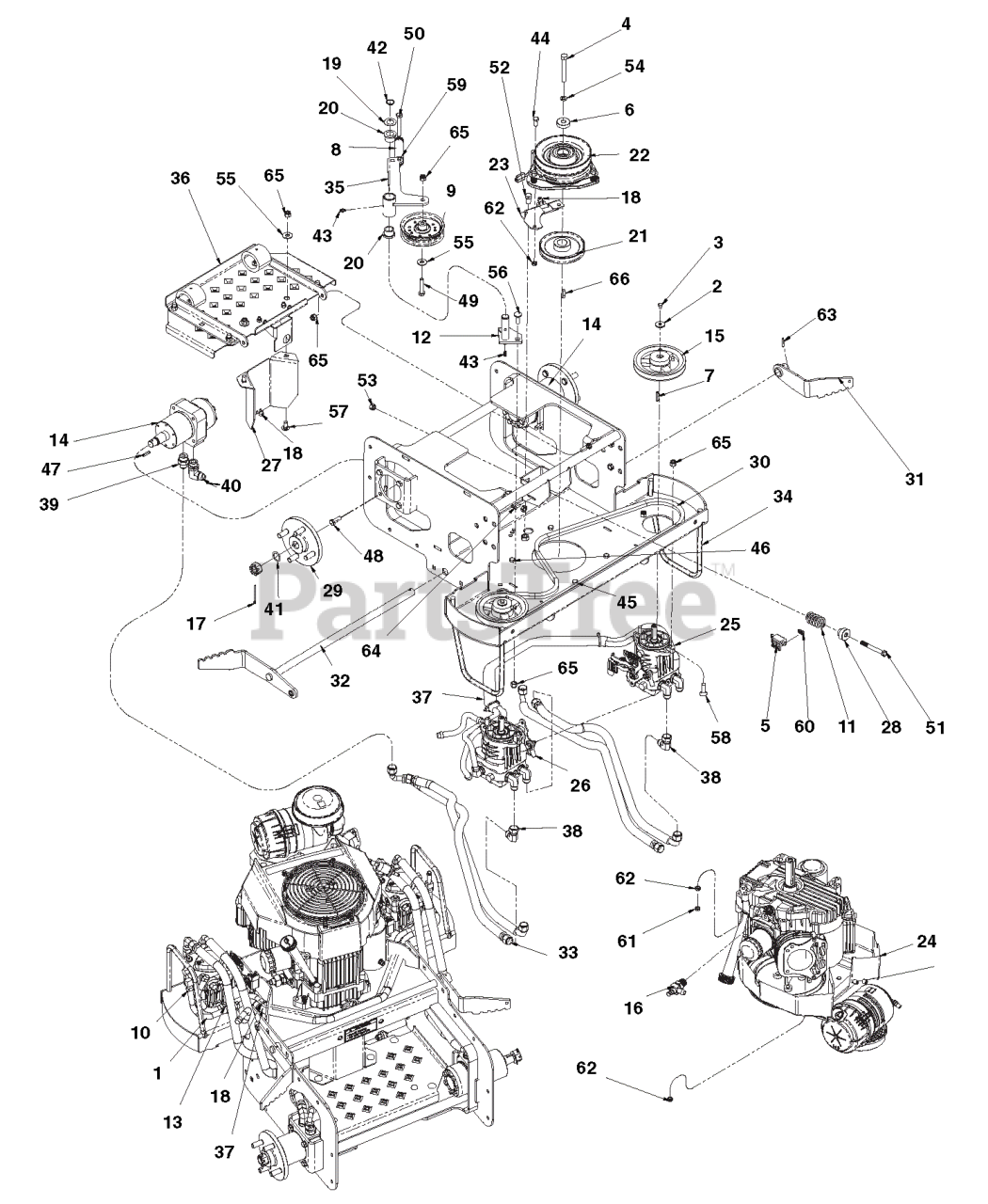

994604 (GSRKA1934S) - Ariens Surfer 34" Stand-On Mower, 19hp Kawasaki (SN: 000101 & Above) Engine, Hydraulic and Main Frame Assembly Parts Diagram

Surfer 34" Stand-On Mower, 19hp Kawasaki

Engine, Hydraulic and Main Frame Assembly Parts Diagram

  • Title

1

Ariens DT5332

HOSE, 3/8 SAE30R7 FUEL & OIL

$5.99

$

Usually ships in 4-12 days

0

2

Ariens D14160

WASHER, .250 WIDE HEAVY FLAT Y

$3.49

$

Usually ships in 4-12 days

0

3

Ariens D14213

BOLT, M6X1.00X10 HEX 8.8 Y

$

$

Not available

4

Ariens D14252

BOLT, 7/16-20X3.00 HEX 5 Y
(Superseded to 05900037)

$6.99

$

In Stock, only 3 left!

0

5

Ariens D18038

SWITCH (N.0.)

Note: (N.0.)

$4.99

$

Usually ships in 4-12 days

0

6

Ariens D18056

SPACER, .468 X 1.38 X .375 Y

$20.99

$

Usually ships in 4-12 days

0

7

Ariens D18067

SHAFT KEY

$

$

Not available

8

Ariens D18071

SPRING, EXT .900X.135X4.50 Y

$11.99

$

Usually ships in 4-12 days

0

9

Ariens D18314

PULLEY, V-BELT4.00X.379 W/BRG
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

10

Ariens D18379

CLAMP, HOSE - 1/2" PINCH

$3.99

$

Usually ships in 4-12 days

0

11

Ariens D38128

SPRING, COM 1.22X.162X2.50 Y

$18.99

$

Usually ships in 4-12 days

0

12

Ariens GDA10004

WLDT, PIVOT IDLER MOUNT

$

$

Not available

13

Ariens M86863

FTG, TUN 3/8 HOSE

$

$

Not available

14

Ariens 04915500

MOTOR, HYD WHEEL
(Superseded to 05015500)

$905.99

$

Usually ships in 4-12 days

0

15

Ariens TCA15316

ASSY, PUMP PULLEY W/SET SCREW

$47.99

$

Usually ships in 4-12 days

0

16

Ariens TCA16240

FITTING, OIL DRAIN #

$

$

Not available

17

Ariens 11H237

PIN,.125X2.00 ZN COTTER 1010 #

$

$

Not available

18

Ariens 00111910

CABLE TIE, .15 X 8.50

$

$

Not available

19

Ariens 00150052

WSHR-FL-STL .750X1.250X.048 YZ

$4.99

$

Usually ships in 4-12 days

0

20

Ariens 00191179

BRG, FLG .750X1.00X.750 BRNZ

$5.99

$

Usually ships in 4-12 days

0

21

Ariens 00200318

PULLEY, V-BELT 4.78PD X 1.000

$56.99

$

Usually ships in 4-12 days

0

22

Ariens 00200665

CLUTCH ASSY, OGURA# GT1A-HU02

$387.99

$

In Stock, only 1 left!

0

23

Ariens 00200666

PLATE, CLUTCH DOG

$51.99

$

Usually ships in 4-12 days

0

24

Ariens 00200675

ENGINE, KAWASAKI 19HP FH580V

$

$

Not available

25

Ariens 00200721

ASSEMBLY, HYD PUMP

$

$

Not available

26

Ariens 00200722

ASSEMBLY, HYD PUMP

$1612.99

$

Usually ships in 4-12 days

0

27

Ariens 00200769

COVER, OPC

$

$

Not available

28

Ariens 00200770

WASHER, SPRING Y

$

$

Not available

29

Ariens 00200959

ASSY, REAR WHEEL HUB

$189.99

$

In Stock, only 2 left!

0

30

Ariens 00201009

BELT, HA 68.2 EL AMD OHR

$45.99

$

Usually ships in 4-12 days

0

31

Ariens 00201025

WLDT, RH BRAKE ARM

$51.99

$

Usually ships in 4-12 days

0

32

Ariens 00201027

WLDT, LH BRAKE

$

$

Not available

33

Ariens 00201091

HOSE, HYD 1/2 X 26 1/2 EZFLEX

$75.99

$

Usually ships in 4-12 days

0

34

Ariens 03734710

WLDT, FRAME 34 W/DECALS-BLACK

$

$

Not available

35

Ariens 00201143

WLDT, IDLER PIVOT

$

$

Not available

36

Ariens 00201199

ASSY, FOOT PLATE

$

$

Not available

37

Ariens 00201051

ABRASION SLEEVE 3 FEET S/O

$

$

Not available

38

Ariens 00231046

ADAPTER, 3/4 FESW X 3/4MJICX90

$

$

Not available

39

Ariens 00231104

FTG, ADP 3/4-16MJICX7/8-14MOR

$

$

Not available

40

Ariens 00231647

FTG, 7/8ORB X 3/4JIC X 90

$

$

Not available

41

Ariens 24M7158

SHIM, .020X.787X1.102

$15.99

$

Usually ships in 4-12 days

0

42

Ariens 00403490

SNAP RING, .750 X .042 EXT

$

$

Not available

43

Ariens 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.49

$

Usually ships in 4-12 days

0

44

Ariens 00960022

BOLT, 5/16-18X.750 HEX 5 Y

$

$

Not available

45

Ariens 00960025

BOLT, 5/16-18X1.50 HEX 5 Y

$

$

Not available

46

Ariens 00960026

BOLT, 5/16-18X1.75 HEX 5 Y
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

47

Ariens D18206

KEY, WOODRUFF 3/16 X 3/4

$

$

Not available

48

Ariens 00960046

BOLT, 3/8-16X1.00 HEX 5 Y
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

49

Ariens 00960049

BOLT, 3/8-16X1.75 HEX 5 Y
(Superseded to 05958500)

$1.49

$

In Stock, only 4 left!

0

50

Ariens 00960052

BOLT, 3/8-16X2.50 HEX 5 Y

$

$

Not available

51

Ariens 00960055

BOLT, 3/8-16X3.25 HEX 5 Y

$

$

Not available

52

Ariens 00960078

BOLT, 7/16-14X.750 HEX 5 Y

$

$

Not available

53

Ariens 00960502

NUT, 3/8-16 STD HEX GR5 Y

$

$

Not available

54

Ariens 00960602

WASHER, .375 MED SPRG LOCK Y

$

$

Not available

55

Ariens 00960702

WASHER, .375 REG FLAT Y
(Superseded to 06435900)

$1.49

$

Usually ships in 4-12 days

0

56

Ariens 00963020

BOLT, 3/8-16X1.00 CRG 5 Y
(Superseded to 06223600)

$2.49

$

In Stock, Qty 19

0

57

Ariens 00963033

BOLT, 3/8-16X.750 CRG 5 LN Y

$

$

Not available

58

Ariens 00963053

BOLT, 3/8-16X1.25 CRG 5 Y

$

$

Not available

59

Ariens 00964001

NUT, 3/8-16 JAM GR5 Y
(Superseded to 06500910)

$0.99

$

In Stock, Qty 9

0

60

Ariens 00964013

LOCKNUT, 10-24 NYLOC Y

$

$

Not available

61

Ariens 00967034

NUT, 5/16-18 JAM GR5 Y

$

$

Not available

62

Ariens 00967115

LOCKNUT, 5/16-18 NYLOC Y
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

63

Ariens 00967155

PIN, ROL .156 X 1.00

$

$

Not available

64

Ariens 00967340

SCREW, 10-24X.625 PAN PHL MACY

$2.49

$

Usually ships in 4-12 days

0

65

Ariens 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

66

Ariens D18145

KEY, .250 X .250 X .995 TPR

$7.49

$

Usually ships in 4-12 days

0
