994604 (GSRKA1934S) - Ariens Surfer 34" Stand-On Mower, 19hp Kawasaki (SN: 000101 & Above) Foot Plate and Console Componets Parts Diagram

Surfer 34" Stand-On Mower, 19hp Kawasaki

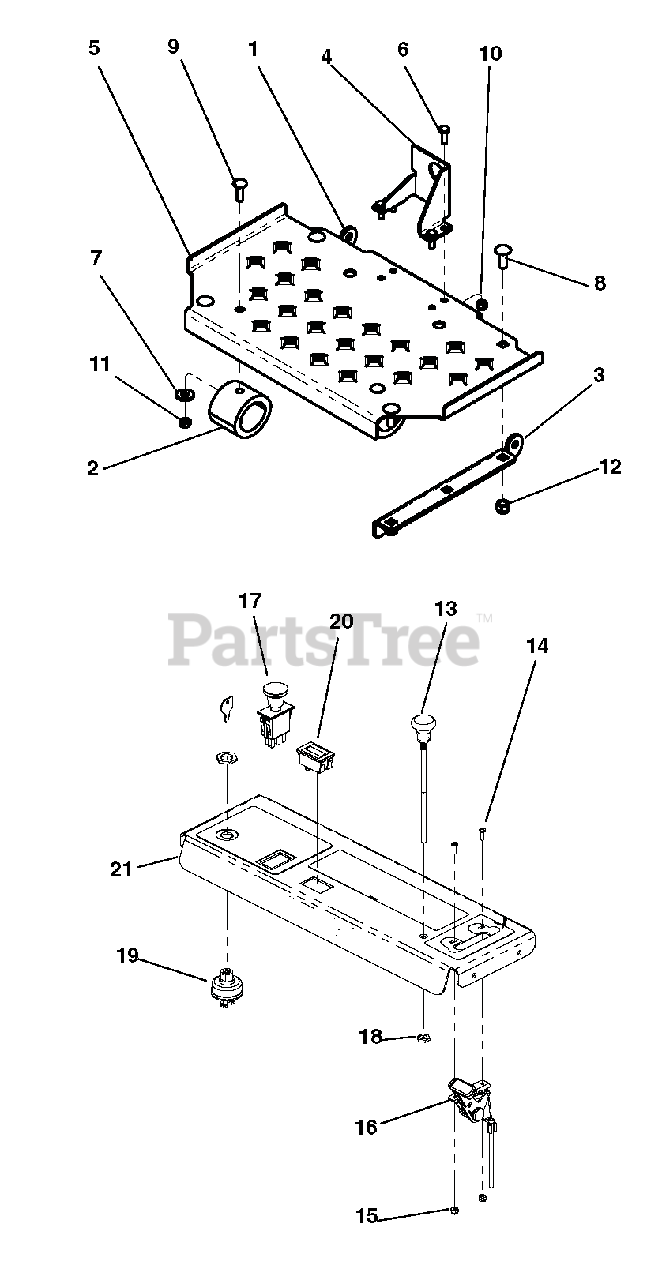

Foot Plate and Console Componets Parts Diagram

  • Title

1

Ariens 00200619

PLATE, PLATFORM TAB

$

$

Not available

2

Ariens 00200655

BUMPER, MINER GBR-6

$

$

Not available

3

Ariens 00200693

PLATE, PLATFORM TAB LH

$

$

Not available

4

Ariens 00200767

ANCHOR, OPC

$

$

Not available

5

Ariens 00201136

PLATFORM

$

$

Not available

6

Ariens 00960001

BOLT, 1/4-20X.750 HEX 5 Y

$

$

Not available

7

Ariens 00960701

WASHER, .313 REG FLAT Y
(Superseded to 06401023)

$1.49

$

In Stock, Qty 8

0

8

Ariens 00963019

BOLT, 3/8-16X1.00 CRG 5 SN Y

$

$

Not available

9

Ariens 00963074

BOLT, 5/16-18X1.00 CRG 2 Y

$

$

Not available

10

Ariens 00964048

LOCKNUT, 1/4-20 NYLOC Y

$

$

Not available

11

Ariens 00967115

LOCKNUT, 5/16-18 NYLOC Y
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

12

Ariens 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

13

Ariens D18427

CABLE, CHOKE 31.0"

$51.99

$

Usually ships in 4-12 days

0

14

Ariens D24020

SCREW,8-32X1/2

$

$

Not available

15

Ariens M63431

#8.32 ELASTIC STOP NUT

$

$

Not available

16

Ariens TCA15051

CABLE, THROTLE 48.0"

$21.99

$

Usually ships in 4-12 days

0

17

Ariens 00136574

SWITCH, PTO ENGAGEMENT

$28.99

$

In Stock, only 1 left!

0

18

Ariens 14H846

NUT, 3/8 UNF HEX GR 5 ZN

$

$

Not available

19

Ariens 00180620

SWITCH, KEY - 3 POSITION

$35.99

$

In Stock, only 4 left!

0

20

Ariens 00192296

METER, HOUR - LCD ALT. (ENM)

$68.99

$

Usually ships in 4-12 days

0

21

Ariens 03731503

CONTROL PANEL W/DECALS GDANE

$

$

Not available
