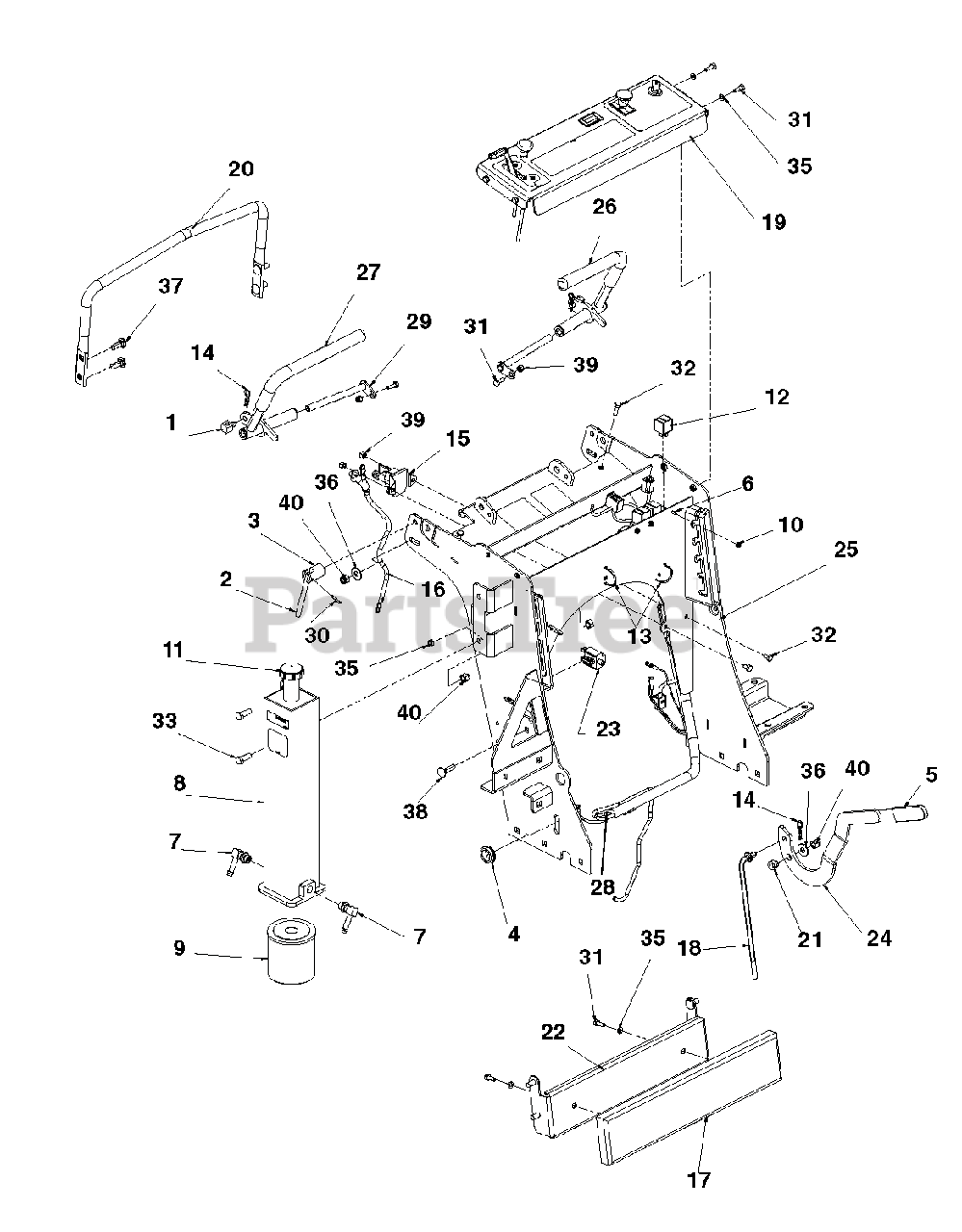

994604 (GSRKA1934S) - Ariens Surfer 34" Stand-On Mower, 19hp Kawasaki (SN: 000101 & Above) Fuel, Hydraulic and Handle Assembly Parts Diagram

Surfer 34" Stand-On Mower, 19hp Kawasaki

Fuel, Hydraulic and Handle Assembly Parts Diagram

  • Title

1

Ariens D13028

SWIVEL ADJUSTER-THREAD SIZE 5/

$83.99

$

Usually ships in 4-12 days

0

2

Ariens D13309

LEVER, LOCK Y

$

$

Not available

3

Ariens D13308

BASE, LOCK LEVER Y

$

$

Not available

4

Ariens 03384007

GROMMET:RUB:.88IDX1.38ODX.14GR

$3.49

$

Usually ships in 4-12 days

0

5

Ariens D18079

GRIP, PVC .250 X 1.00 X 3.63

$3.99

$

Usually ships in 4-12 days

0

6

Ariens D24020

SCREW,8-32X1/2

$

$

Not available

7

Ariens D24028

FTG, 90 9/16MOR X 3/8HOSE

$9.99

$

Usually ships in 4-12 days

0

8

Ariens TCA15373

RESERVOIR, HYDRAULIC

$

$

Not available

9

Ariens GDA10137

FILTER, OIL

$28.99

$

In Stock, only 4 left!

0

10

Ariens M63431

#8.32 ELASTIC STOP NUT

$

$

Not available

11

Ariens TCA15122

CAP, FILLER, OIL

$27.99

$

Usually ships in 4-12 days

0

12

Ariens 00102770

RELAY, ISO MINI ELEC.

$21.99

$

In Stock, only 1 left!

0

13

Ariens 00111910

CABLE TIE, .15 X 8.50

$

$

Not available

14

Ariens 00121080

PIN, HAR .091X1.63 5/16-1/2 Y
(Superseded to 06700219)

$2.99

$

In Stock, Qty 11

0

15

Ariens 03551000

SOLENOID

$34.99

$

In Stock, Qty 5

0

16

Ariens 00180842

CABLE, 12" STARTER

$15.99

$

Usually ships in 4-12 days

0

17

Ariens 00200606

PAD, THIGH

$

$

Not available

18

Ariens 00200615

LINK, BRAKE Y

$28.99

$

Usually ships in 4-12 days

0

19

Ariens 03731503

CONTROL PANEL W/DECALS GDANE

Note: (switches sold seperately)

$

$

Not available

20

Ariens 03730751

SUPPORT, HANDLE PAINTED

$112.99

$

Usually ships in 4-12 days

0

21

Ariens 00200671

BUSHING, BRAKE PIVOT Y

$

$

Not available

22

Ariens 00200690

WLDT, THIGH PAD BRACKET

$64.99

$

Usually ships in 4-12 days

0

23

Ariens 00200705

SWITCH, NO-NO-NC GREY PLUNGER

$17.99

$

In Stock, only 1 left!

0

24

Ariens 00201022

BRAKE LEVER, OFFSET

$17.99

$

Usually ships in 4-12 days

0

25

Ariens 03728840

WLDT, CONSOLE 34 W/DECALS YELW

$

$

Not available

26

Ariens 03731000

RH CONTROL LEVER W/GRIP

$162.99

$

In Stock, only 1 left!

0

27

Ariens 03730900

LH CONTROL LEVER W/GRIP

$

$

Not available

28

Ariens AA201197

HARNESS, WIRING

$185.99

$

Usually ships in 4-12 days

0

29

Ariens 00203893

WLDT, PIN AND LOCK Y

$34.99

$

Usually ships in 4-12 days

0

30

Ariens 34H60

PIN, SPRING

$

$

Not available

31

Ariens 00960001

BOLT, 1/4-20X.750 HEX 5 Y

$

$

Not available

32

Ariens 00960002

BOLT, 1/4-20X1.00 HEX 5 Y
(Superseded to 05947700)

$1.49

$

In Stock, Qty 7

0

33

Ariens 00960046

BOLT, 3/8-16X1.00 HEX 5 Y
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

34

Ariens AA960500

NUT, 1/4-20 STD HEX GR5 Y

$

$

Not available

35

Ariens AA960600

WASHER, .250 MED SPRG LOCK Y

$

$

Not available

36

Ariens 00960702

WASHER, .375 REG FLAT Y
(Superseded to 06435900)

$1.49

$

Usually ships in 4-12 days

0

37

Ariens 00963020

BOLT, 3/8-16X1.00 CRG 5 Y
(Superseded to 06223600)

$2.49

$

In Stock, Qty 19

0

38

Ariens 00963053

BOLT, 3/8-16X1.25 CRG 5 Y

$

$

Not available

39

Ariens 00964040

LOCKNUT, 1/4-20 WHIZ Y

$

$

Not available

40

Ariens 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available
