994604 (GSRKA1934S) - Great Dane Surfer Walk-Behind Mower (SN: 000101 & Above) Deck Assembly Parts Diagram

Surfer Walk-Behind Mower

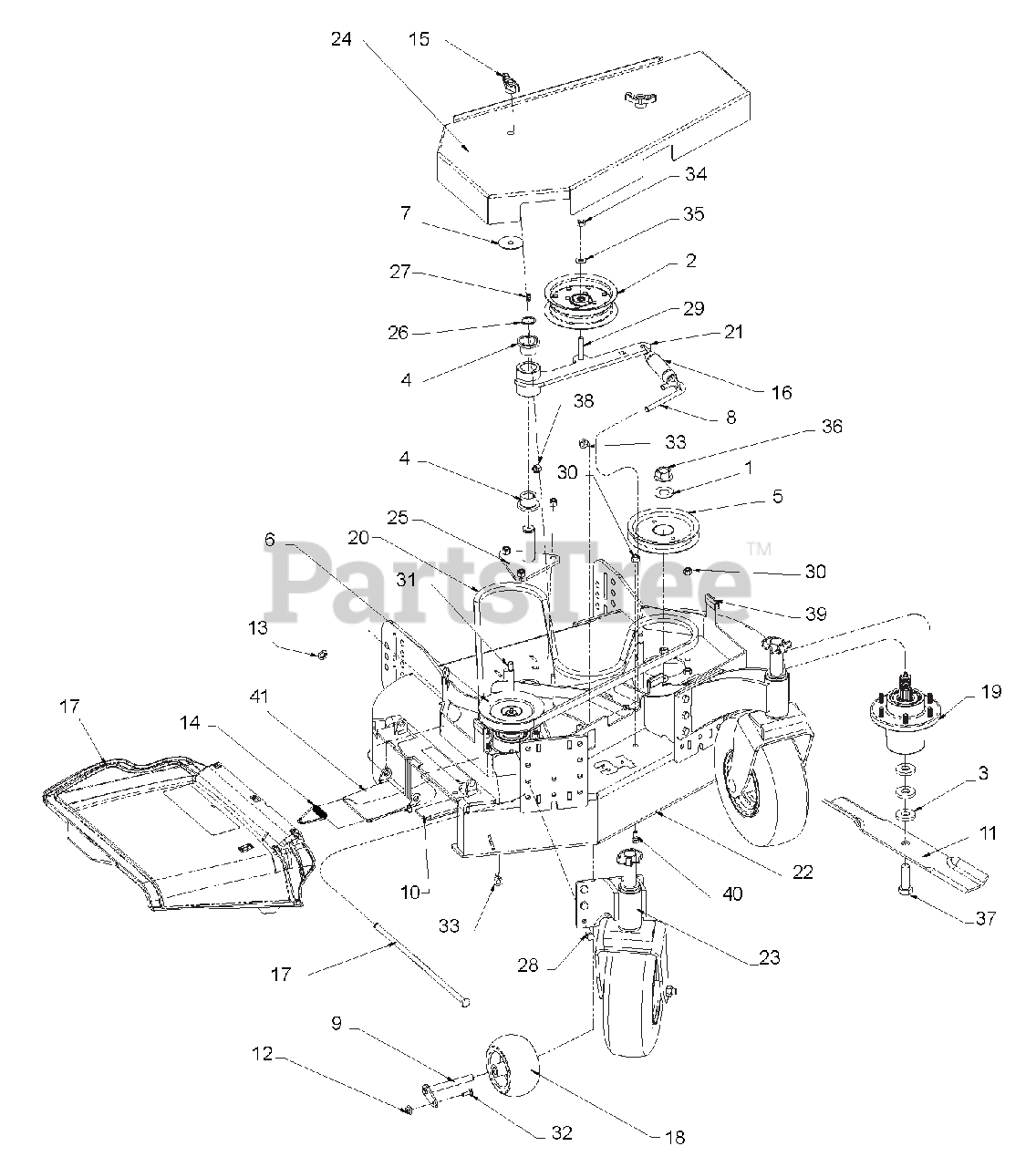

Deck Assembly Parts Diagram

  • Title

1

Gravely 03399703

WASHER, .75X1.3125X.120
(Superseded to 06401037)

$2.99

$

In Stock, Qty 8

0

2

Gravely D18032

PULLEY, FLAT 5.00X.375 W/BRG
(Superseded to 07346700)

$86.99

$

In Stock, Qty 9

0

3

Gravely D18055

WASHER, .630X1.50X.250 FLAT Y
(Superseded to 06401033)

$7.99

$

In Stock, only 4 left!

0

4

Gravely D18076

BRG, FLG 1.00X1.25X1.00

$7.99

$

In Stock, Qty 7

0

5

Gravely 03399702

PULLEY, SPLINE SPINDLE LSE

$79.99

$

In Stock, only 2 left!

0

6

Gravely 03828700

PULLEY, SPLINE SPINDLE LSE

$

$

Not available

7

Gravely D24019

WASHER, .402X2.00X.055 FEND Y

$

$

Not available

8

Gravely D23058

J-BOLT, 3/8-16 X 4.00 Y

$6.99

$

In Stock, only 2 left!

0

9

Gravely GDA10103

PIVOT, RETAINER WELD

$59.99

$

In Stock, Qty 5

0

10

Gravely GDU10230

BLADE, 16.500 X .80 LIFT

$30.99

$

In Stock, Qty 5

0

11

Gravely GDU10231

BLADE, 18.000 X .80 LIFT

$33.99

$

In Stock, Qty 20+

0

12

Gravely H122207

NUT-1/4" FLANGE PREVAILING TOR

$

$

Not available

13

Gravely H141123

RETAINER #

$

$

Not available

14

Gravely 03393800

SPRING, TORSION .460"X.138"

$6.99

$

Usually ships in 4-12 days

0

15

Gravely M119352

KNOB, 3/8-16 INSERT

$4.99

$

In Stock, only 4 left!

0

16

Gravely N242189

SPRING, EXT

$14.99

$

Usually ships in 4-12 days

0

17

Gravely TCA16387

CHUTE DISCHARGE ASSY #

$38.99

$

In Stock, only 2 left!

0

18

Gravely TCU18744

WHEEL, GAGE

$15.99

$

In Stock, Qty 10

0

19

Gravely 00200260

ASSY, SPINDLE HOUSING
(Superseded to 00200262)

$307.99

$

Usually ships in 4-12 days

0

20

Gravely 00201010

BELT, HB 80.3 EL AMD OHR

$75.99

$

Usually ships in 4-12 days

0

21

Gravely 00201145

WLDT, IDLER ARM

$64.99

$

Usually ships in 4-12 days

0

22

Gravely 03729404

WLDT, FIXD DECK GRDNE W/DECALS

$

$

Not available

23

Assembly, Front Wheel Caster (see page 16 for parts)

Note: (see page 16 for parts)

$

$

Not available

24

Gravely 00201357

SHIELD, DECK W/DECALS GRT DANE

$

$

Not available

25

Gravely 00201178

WLDT, IDLER PIVOT

$

$

Not available

26

Gravely 00424390

SNAP RING, 1.00 X .042 EXT
(Superseded to 05700160)

$4.99

$

Usually ships in 4-12 days

0

27

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$4.99

$

In Stock, only 2 left!

0

28

Gravely 00960046

BOLT, 3/8-16X1.00 HEX 5 Y
(Superseded to 05948700)

$2.49

$

In Stock, Qty 20+

0

29

Gravely 00960051

BOLT, 3/8-16X2.25 HEX 5 Y
(Superseded to 05962900)

$5.49

$

In Stock, Qty 20+

0

30

Gravely 00960502

NUT, 3/8-16 STD HEX GR5 Y

$

$

Not available

31

Gravely 00963019

BOLT, 3/8-16X1.00 CRG 5 SN Y

$

$

Not available

32

Gravely 00963095

BOLT, 1/4-20X.750 CRG 5 Y
(Superseded to 06219900)

$1.99

$

In Stock, Qty 20+

0

33

Gravely 00964016

LOCKNUT, 3/8-16 WHIZ Y
(Superseded to 06534900)

$2.49

$

In Stock, Qty 20+

0

34

Gravely 00964022

LOCKNUT, 3/8-16 CROWN Y

$

$

Not available

35

Gravely 00964501

WASHER, .406X.813X.065 FLAT Y
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

36

Gravely 00964024

LOCKNUT, 3/4-16 CROWN PL
(Superseded to 06500031)

$4.99

$

In Stock, Qty 16

0

37

Gravely 00967348

BOLT, 5/8-11 X 2.00 HEX 8 Y
(Superseded to 05901725)

$6.99

$

In Stock, Qty 7

0

38

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

39

Gravely 00999538

TRIM, LOCK 1/4" EDGE

$6.99

$

Usually ships in 4-12 days

0

40

Gravely 00963033

BOLT, 3/8-16X.750 CRG 5 LN Y

$

$

Not available

41

Gravely 00200095

BRKT, SUPPORT DISCHARGE CHUTE

$26.99

$

Usually ships in 4-12 days

0
