994604 (GSRKA1934S) - Great Dane Surfer Walk-Behind Mower (SN: 000101 & Above) Engine, Hydraulic and Main Frame Assembly Parts Diagram

Surfer Walk-Behind Mower

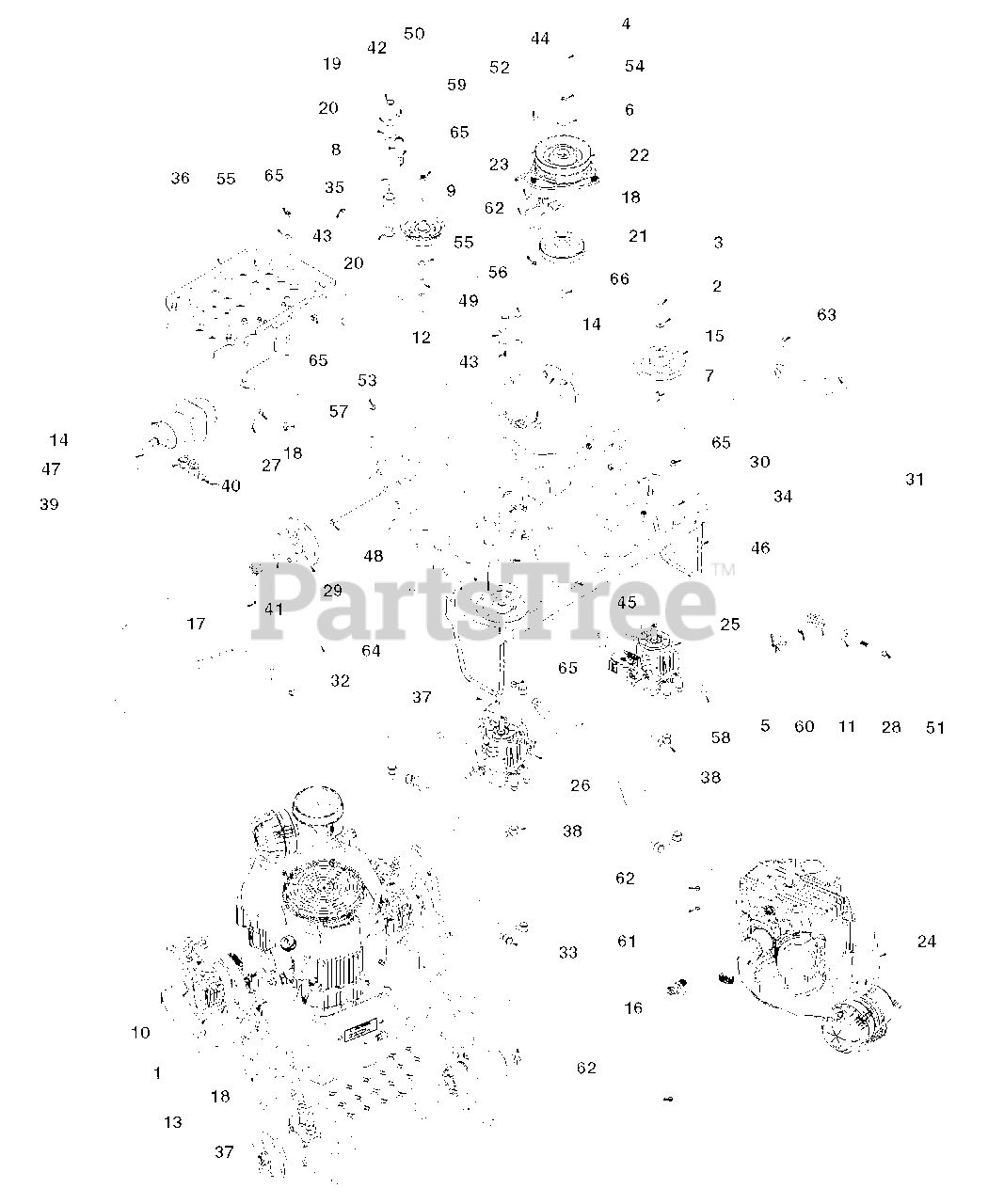

Engine, Hydraulic and Main Frame Assembly Parts Diagram

  • Title

1

Gravely DT5332

Hose, 3/8 SAE30r7 Fuel & Oil

$5.99

$

Usually ships in 4-12 days

0

2

Gravely D14160

Washer, .250 Wide Heavy Flat Y

$3.49

$

Usually ships in 4-12 days

0

3

Gravely D14213

Bolt, M6 x 1.00 x 10 Hex 8.8 Y

$

$

Not available

4

Gravely D14252

Bolt, 7/16-20 x 3.00 Hex 5 Y
(Superseded to 05900037)

$6.99

$

In Stock, only 3 left!

0

5

Gravely D18038

Switch (N.0.)

Note: (N.0.)

$4.99

$

Usually ships in 4-12 days

0

6

Gravely D18056

Spacer, .468 x 1.38 x .375 Y

$20.99

$

Usually ships in 4-12 days

0

7

Gravely D18067

Key, M5 x M5 x M30 RD

$

$

Not available

8

Gravely D18071

Spring, Ext .900 x .135x4.50 Y

$11.99

$

Usually ships in 4-12 days

0

9

Gravely D18314

Pulley, V-belt 4.00x.379 w/Bearing
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

10

Gravely D18379

Clamp, Hose - 1/2" Pinch

$3.99

$

Usually ships in 4-12 days

0

11

Gravely D38128

Spring, Com 1.22x.162x2.50 Y

$18.99

$

Usually ships in 4-12 days

0

12

Gravely GDA10004

Weldment, Pivot Idler Mount

$

$

Not available

13

Gravely M86863

Fitting, Tun 3/8 Hose

$

$

Not available

14

Gravely 04915500

Motor, Wheel HGM-12p-7172
(Superseded to 05015500)

$905.99

$

Usually ships in 4-12 days

0

15

Gravely TCA15316

Assembly, Pump Pulley w/Set Screw

$47.99

$

Usually ships in 4-12 days

0

16

Gravely TCA16240

Fitting, Oil Drain

$

$

Not available

17

Gravely 11H237

Pin, Cot .125 x 2.00 EXTP Y

$

$

Not available

18

Gravely 00111910

Tie Wrap, Black

$

$

Not available

19

Gravely 00150052

Bushing, Machine .750 x 1.25 x .048

$4.99

$

Usually ships in 4-12 days

0

20

Gravely 00191179

Bearing, Flange .750 x 1.000 x .750 x 1.250

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 00200318

Pulley, V-belt 4.78pd x 1.000

$56.99

$

Usually ships in 4-12 days

0

22

Gravely 00200665

Clutch Assembly, Ogura

$387.99

$

In Stock, only 1 left!

0

23

Gravely 00200666

Plate, Clutch Dog

$51.99

$

Usually ships in 4-12 days

0

24

Gravely 00200675

Engine, Kawasaki 19hp FH580V

$

$

Not available

25

Gravely 00200721

Assembly, Hyd Pump

$

$

Not available

26

Gravely 00200722

Assembly, Hyd Pump

$1612.99

$

Usually ships in 4-12 days

0

27

Gravely 00200769

Cover, Operator Presence Control

$

$

Not available

28

Gravely 00200770

Washer, Spring Y

$

$

Not available

29

Gravely 00200959

Assy, Rear Wheel Hub

$189.99

$

In Stock, only 2 left!

0

30

Gravely 00201009

Belt, HA 68.2 EL AMD OHR

$45.99

$

Usually ships in 4-12 days

0

31

Gravely 00201025

Weldment, RH Brake Arm

$51.99

$

Usually ships in 4-12 days

0

32

Gravely 00201027

Weldment, LH Brake Shaft

$

$

Not available

33

Gravely 00201091

Hose, Hyd 1/2 x 26 1/2 Ezflex

$75.99

$

Usually ships in 4-12 days

0

34

Gravely 03734710

Weldment, Frame 34 w/Decals

$

$

Not available

35

Gravely 00201143

Weldment, Idler Pivot

$

$

Not available

36

Gravely 00201199

Assy, Foot Plate

$

$

Not available

37

Gravely 00201051

Abrasion Sleeve

$

$

Not available

38

Gravely 00231046

Adapter, .75 FESW x 3/4MJICX90

$

$

Not available

39

Gravely 00231104

Adapter, Hydraulic Steel 7/8 "O" To .75

$

$

Not available

40

Gravely 00231647

Adapter, 8MJ-10MB90

$

$

Not available

41

Gravely 24M7158

Shim, .020 x .787 x 1.102

$15.99

$

Usually ships in 4-12 days

0

42

Gravely 00403490

Ring, Retaining-External .750 x .042

$

$

Not available

43

Gravely 00959995

Grease Zerk, .25-28 Straight .69 LG

$3.49

$

Usually ships in 4-12 days

0

44

Gravely 00960022

Bolt, Hex .31-18 x .75 Grade 5

$

$

Not available

45

Gravely 00960025

Bolt, Hex .31-18 x 1.50 Grade 5

$

$

Not available

46

Gravely 00960026

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

47

Gravely D18206

Key, Woodruff .1875 x .75

$

$

Not available

48

Gravely 00960046

Bolt, 3/8-16 x 1.00 Hex 5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

49

Gravely 00960049

Bolt, 3/8-16 x 1.75 Hex 5
(Superseded to 05958500)

$1.49

$

In Stock, only 4 left!

0

50

Gravely 00960052

Bolt, 3/8-16 x 2.50 Hex 5

$

$

Not available

51

Gravely 00960055

Bolt, 3/8-16 x 3.25 Hex 5

$

$

Not available

52

Gravely 00960078

Bolt, 7/16-14 x .750 Hex 5

$

$

Not available

53

Gravely 00960502

Nut-Hex .31-18

$

$

Not available

54

Gravely 00960602

Washer, .375 Medium Spring Lock Y

$

$

Not available

55

Gravely 00960702

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06435900)

$1.49

$

Usually ships in 4-12 days

0

56

Gravely 00963020

Bolt, Round Head Square Neck .38-16x1.00 G 5
(Superseded to 06223600)

$2.49

$

In Stock, Qty 19

0

57

Gravely 00963033

Bolt, Round Head Square Neck .38-16x1.00 G 5

$

$

Not available

58

Gravely 00963053

Bolt, Round Head Square Neck .38-16x1.25 G 5

$

$

Not available

59

Gravely 00964001

Nut, .38-16 Jam Grade 5
(Superseded to 06500910)

$0.99

$

In Stock, Qty 9

0

60

Gravely 00964013

Nut-Locking-Nylon 10-24 with Insert

$

$

Not available

61

Gravely 00967034

Nut-Jam .312-18

$

$

Not available

62

Gravely 00967115

Nut-Locking-Nylon .312-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

63

Gravely 00967155

Pin-Roll .156 x 1.00

$

$

Not available

64

Gravely 00967340

Screw, Machine 10-24 x .625 Panhead

$2.49

$

Usually ships in 4-12 days

0

65

Gravely 00968087

Nut-Locking-Nylon .38-16

$

$

Not available

66

Gravely D18145

Key, .250 x .250 x .995 TPR

$7.49

$

Usually ships in 4-12 days

0
