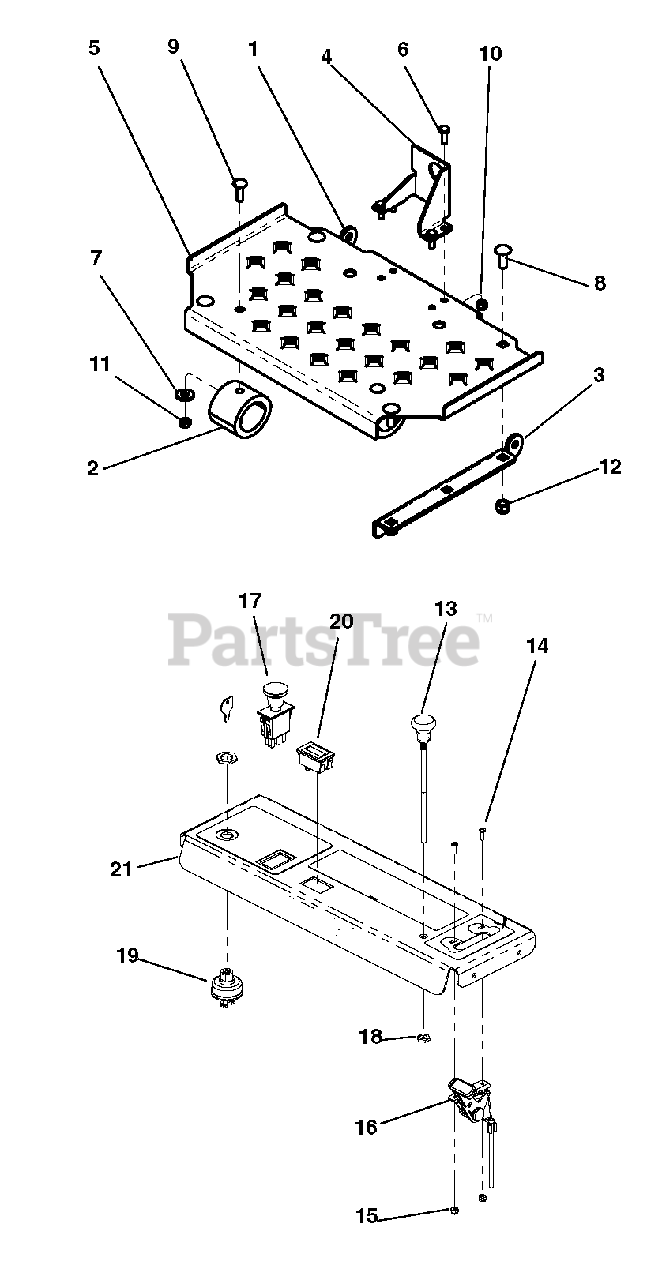

994604 (GSRKA1934S) - Great Dane Surfer Walk-Behind Mower (SN: 000101 & Above) Foot Plate and Console Componets Parts Diagram

Surfer Walk-Behind Mower

Foot Plate and Console Componets Parts Diagram

  • Title

1

Gravely 00200619

Plate, Platform Tab LH

$

$

Not available

2

Gravely 00200655

Bumper, Miner GBR-6

$

$

Not available

3

Gravely 00200693

Plate, Platform Tab Left Hand

$

$

Not available

4

Gravely 00200767

Anchor, Operator Presence Control

$

$

Not available

5

Gravely 00201136

Platform

$

$

Not available

6

Gravely 00960001

Bolt, Hex .25-20 x .75 Grade 5

$

$

Not available

7

Gravely 00960701

Washer, Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 7

0

8

Gravely 00963019

Bolt, .375-16 x 1.00 Round Head Square Neck G 5

$

$

Not available

9

Gravely 00963074

Bolt, .312-18 x 1.00 Round Head Square Neck Grade 5

$

$

Not available

10

Gravely 00964048

Nut, Locking-Nylon .25-20

$

$

Not available

11

Gravely 00967115

Nut, Locking-Nylon .312-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

12

Gravely 00968087

Nut, Locking-Nylon .38-16

$

$

Not available

13

Gravely D18427

Cable, Choke

$51.99

$

Usually ships in 4-12 days

0

14

Gravely D24020

Screw, 8-32 x .50 Pan PHL Y

$

$

Not available

15

Gravely M63431

Nut, 8-32 Elastic Stop

$

$

Not available

16

Gravely TCA15051

Cable, Throttle

$21.99

$

Usually ships in 4-12 days

0

17

Gravely 00136574

Switch, PTO Engagement

$28.99

$

In Stock, only 1 left!

0

18

Gravely 14H846

Nut, Hex .38-16

$

$

Not available

19

Gravely 00180620

Switch, Key - 3 Position

$35.99

$

In Stock, only 4 left!

0

20

Gravely 00192296

Meter, Hour Digital

$68.99

$

Usually ships in 4-12 days

0

21

Gravely 03731503

Top, Console w/Decals

$

$

Not available
