994604 (GSRKA1934S) - Great Dane Surfer Walk-Behind Mower (SN: 000101 & Above) Main Frame Assembly Parts Diagram

Surfer Walk-Behind Mower

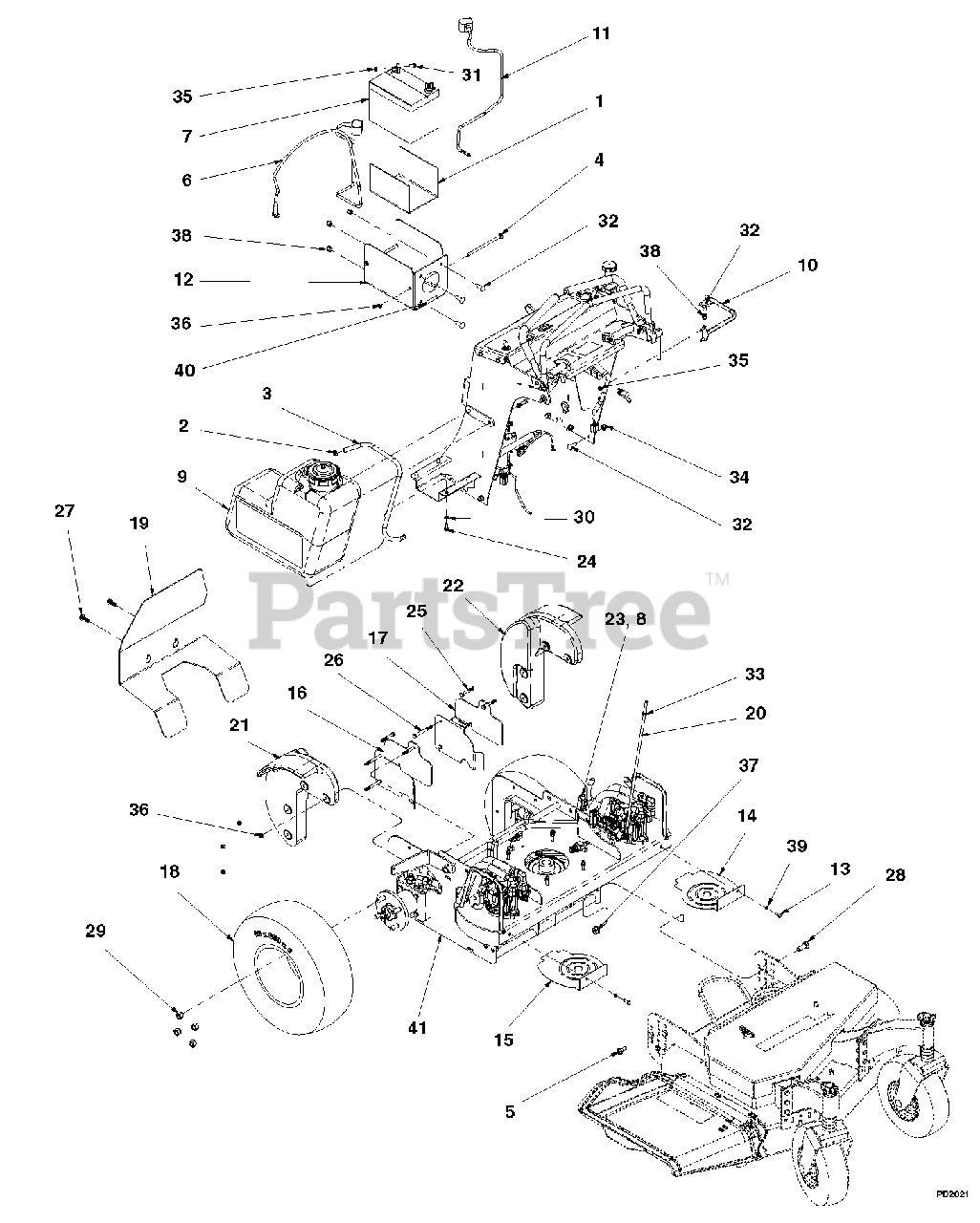

Main Frame Assembly Parts Diagram

  • Title

1

Gravely D28159

STRIP, RUBBER

$

$

Not available

2

Gravely M68342

CLAMP, HOSE (RED) #

Note: (Red) #

$

$

Not available

3

Gravely TCU21265

HOSE, 1/4" ID LOW PERM FUEL 50

$

$

Not available

4

Gravely 03H1832

BOLT, 5/16X6 LONG NK RD HD D-Z

$

$

Not available

5

Gravely 00135139

BOLT, 1/2X1.06X3/8-16 SLD 5 Y
(Superseded to 07070119)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 00181148

CABLE, BATTERY STARTER 48"

$

$

Not available

7

Gravely 00191832

BATTERY, 12V-U1-CCA270MIN
(Superseded to 01554800)

$

$

Not available

8

Gravely 00200658

PIN, CVS SPG 3/8" YOKE SPEC Y

$

$

Not available

9

Gravely 00201005

TANK, FUEL PUPPY PAW ASSEMBLY

$

$

Not available

10

Gravely AA201012

WLDT, RESERVOIR GUARD

$

$

Not available

11

Gravely AA201019

CABLE, BATTERY - 25" GROUND

$23.99

$

Usually ships in 4-12 days

0

12

Gravely 00201356

CONSLE BTRY BRKT W/DCAL GDN 34

$

$

Not available

13

Gravely 00960001

BOLT, 1/4-20X.750 HEX 5 Y

$

$

Not available

14

Gravely 00201328

SHIELD, LH PUMP BLACK

$

$

Not available

15

Gravely 00201331

SHIELD, RH PUMP (BLACK)

$

$

Not available

16

Gravely 03731200

SHIELD, RH MOTOR W/DECAL

$

$

Not available

17

Gravely 03731300

SHIELD, LH MOTOR W/DECAL

$

$

Not available

18

Gravely 00201150

ASSY, TIRE/WHL 18-6.50-8

$139.99

$

Usually ships in 4-12 days

0

19

Gravely 00298440

SHIELD, ENGINE W/DECALS GDANE

$

$

Not available

20

Gravely AA201194

ROD, CONTROL 5/16-24 X 22.75 Y

$

$

Not available

21

Gravely 00201202

RH CAST WEIGHT MACHINED

$

$

Not available

22

Gravely 00201204

LH CAST WEIGHT MACHINED

$

$

Not available

23

Gravely 00251907

YOKE, 3/8-24 RH ADJUSTABLE

$16.99

$

Usually ships in 4-12 days

0

24

Gravely 00960022

BOLT, 5/16-18X.750 HEX 5 Y

$

$

Not available

25

Gravely 00960027

BOLT, 5/16-18X2.00 HEX 5 Y
(Superseded to 05901805)

$1.99

$

In Stock, Qty 19

0

26

Gravely 00960031

BOLT, 5/16-18X3.00 HEX 5 Y
(Superseded to 05901933)

$3.99

$

In Stock, Qty 20+

0

27

Gravely 00960044

BOLT, 3/8-16X1.00 FGH 8 Y

$2.99

$

Usually ships in 4-12 days

0

28

Gravely 00960113

BOLT, 1/2-13X1.25 HEX 5 Y
(Superseded to 05958900)

$3.49

$

In Stock, Qty 6

0

29

Gravely 00960526

NUT, 1/2-20 LUG C
(Superseded to 06517600)

$1.99

$

In Stock, Qty 20+

0

30

Gravely AA960601

WASHER, .313 MED SPRG LOCK Y
(Superseded to 06308600)

$1.49

$

In Stock, Qty 20+

0

31

Gravely AA963001

BOLT, 1/4-20X.625 WSH Y

$

$

Not available

32

Gravely 00963019

BOLT, 3/8-16X1.00 CRG 5 SN Y

$

$

Not available

33

Gravely 00964003

NUT, 5/16-24 STD HEX GR5 Y

$

$

Not available

34

Gravely 00964016

LOCKNUT, 3/8-16 WHIZ Y
(Superseded to 06534900)

$1.99

$

In Stock, Qty 20+

0

35

Gravely 00964040

LOCKNUT, 1/4-20 WHIZ Y

$

$

Not available

36

Gravely 00967115

LOCKNUT, 5/16-18 NYLOC Y
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

37

Gravely 00967192

LOCKNUT, 1/2-13 WHIZ GR5 Y

$

$

Not available

38

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

39

Gravely AA960600

WASHER, .250 MED SPRG LOCK Y

$

$

Not available

40

Gravely 03743400

TRIM, RUBBER EDGE 2"

$

$

Not available

41

Power Unit 19 Narrow

$

$

Not available
