994604 (GSRKA1934S) - Great Dane Surfer Walk-Behind Mower (SN: 000101 & Above) Main Frame Assembly Parts Diagram

Surfer Walk-Behind Mower

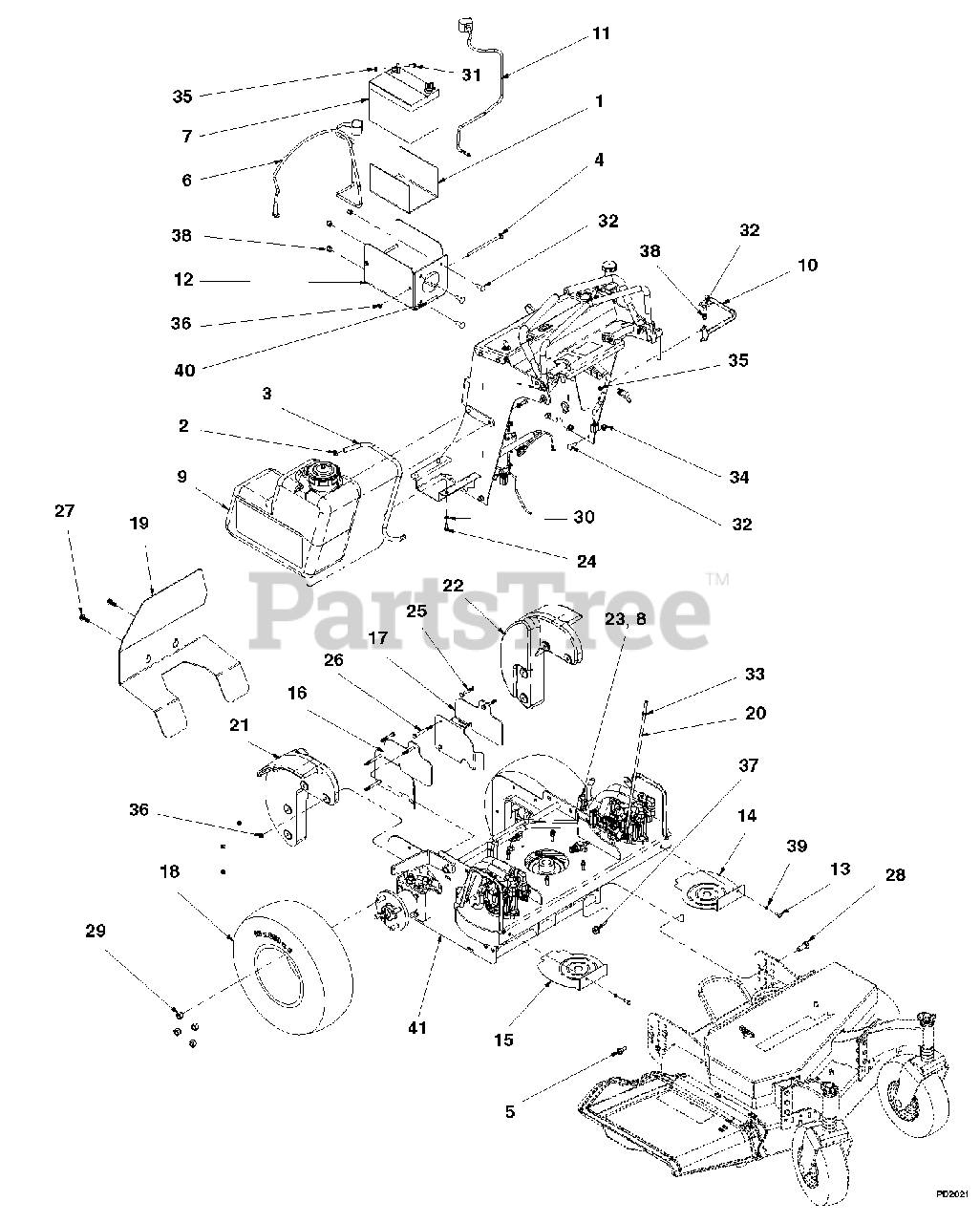

Main Frame Assembly Parts Diagram

  • Title

1

Gravely D28159

Pad, Battery Insulator

$15.99

$

Usually ships in 4-12 days

0

2

Gravely M68342

Clamp, Hose (Red) #

Note: (Red) #

$

$

Not available

3

Gravely TCU21265

Hose, 1/4" Id Low Perm Fuel 50

$

$

Not available

4

Gravely 03H1832

Cap Screw, 5/16" x 6"

$

$

Not available

5

Gravely 00135139

Bolt, .50 x 1.06 x .375-16 Sld 5 Y
(Superseded to 07070119)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 00181148

Cable, Battery Starter - 48"

$38.99

$

Usually ships in 4-12 days

0

7

Gravely 00191832

Battery, 12V-U1-CCA 270 min
(Superseded to 01554800)

$

$

Not available

8

Gravely 00200658

Pin, Clevis Spg 3/8" Yoke Spec Y

$

$

Not available

9

Gravely 00201005

Tank, Fuel

$

$

Not available

10

Gravely AA201012

Weldment, Reservior Guard

$

$

Not available

11

Gravely AA201019

Cable, Battery - 25" Ground

$22.99

$

Usually ships in 4-12 days

0

12

Gravely 00201356

Console Battery Bracket, w/Decal

$

$

Not available

13

Gravely 00960001

Bolt, .25-20 x .750 Hex 5 Y

$

$

Not available

14

Gravely 00201328

Shield, LH Pump

$

$

Not available

15

Gravely 00201331

Shield, RH Pump

$

$

Not available

16

Gravely 03731200

Shield, RH Motor

$

$

Not available

17

Gravely 03731300

Shield, LH Motor

$

$

Not available

18

Gravely 00201150

Assembly, Tire/Wheel 18/6.5 x 8 Slvr

$136.99

$

Usually ships in 4-12 days

0

19

Gravely 00298440

Shield, Engine

$

$

Not available

20

Gravely AA201194

Rod, Control 5/16 x 22.75 Y

$

$

Not available

21

Gravely 00201202

RH Cast Weight Machined

$

$

Not available

22

Gravely 00201204

LH Cast Weight Machined

$

$

Not available

23

Gravely 00251907

Clevis, .38-24 Adjustment

$15.99

$

Usually ships in 4-12 days

0

24

Gravely 00960022

Bolt, Hex .25-20 x .75 Grade 5

$

$

Not available

25

Gravely 00960027

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901805)

$1.49

$

In Stock, Qty 12

0

26

Gravely 00960031

Bolt, .312-18 x 3.00 Hex 5 Y
(Superseded to 05901933)

$3.99

$

In Stock, only 3 left!

0

27

Gravely 00960044

Bolt, .38-16 x 1.00 Fgh 8 Y

$2.49

$

Usually ships in 4-12 days

0

28

Gravely 00960113

Bolt, Hex .50-13 x 1.25 Grade 5
(Superseded to 05958900)

$3.49

$

Usually ships in 4-12 days

0

29

Gravely 00960526

Nut, .50-20 Lug C
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

30

Gravely AA960601

Washer, .313 Med Sprg Lock Y
(Superseded to 06308600)

$0.99

$

In Stock, Qty 20+

0

31

Gravely AA963001

Bolt, .25-20 x .625 Wsh Y

$

$

Not available

32

Gravely 00963019

Bolt, Round Head Square Neck .38-16x1.00 G 5

$

$

Not available

33

Gravely 00964003

Nut, Hex .312-24

$

$

Not available

34

Gravely 00964016

Nut, Flange .375-16
(Superseded to 06534900)

$1.49

$

In Stock, Qty 18

0

35

Gravely 00964040

Nut, Locking-Flange .250-20

$

$

Not available

36

Gravely 00967115

Nut, Locking-Nylon .312-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

37

Gravely 00967192

Nut, Spin Lock-Flange .50-13

$

$

Not available

38

Gravely 00968087

Nut, Locking-Nylon .38-16

$

$

Not available

39

Gravely AA960600

Washer, .313 Medium Spring Lock Y

$

$

Not available

40

Gravely 03743400

Trim, Rubber Edge 2"

$

$

Not available

41

Gravely N/A

Power Unit 19 Narrow

$

$

Currently unavailable
