994604 (GSRKA1934S) - Great Dane Surfer Walk-Behind Mower (SN: 000101 & Above) Spindle Assembly Parts Diagram

Surfer Walk-Behind Mower

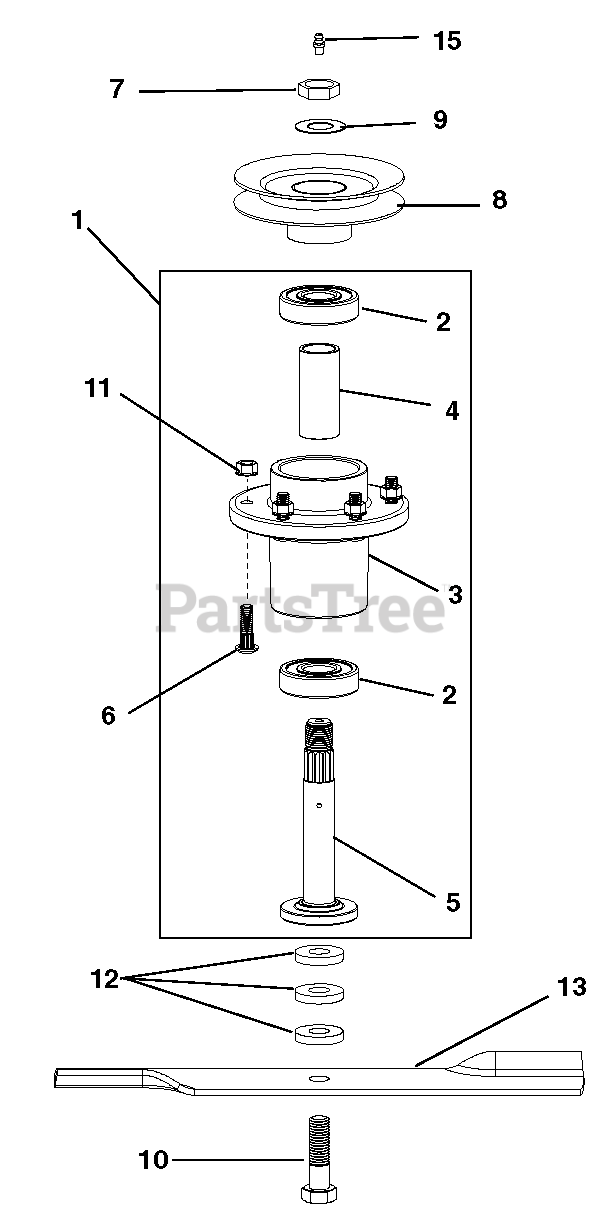

Spindle Assembly Parts Diagram

  • Title

1

Gravely 00200260

Spindle Assembly (Includes 2, 3, 4, 5, 15)
(Superseded to 00200262)

Note: (Includes 2, 3, 4, 5, 15)

$250.99

$

In Stock, only 1 left!

0

2

Gravely 00200046

Bearing, 6305LLC

$26.99

$

Usually ships in 4-12 days

0

3

Gravely 00200042

Casting, Spindle w/Studs

$87.99

$

Usually ships in 4-12 days

0

4

Gravely 00200044

Spacer, 1.250 x 1.000 x 2.780

$29.99

$

Usually ships in 4-12 days

0

5

Gravely 00200196

Shaft, Spindle .75-16

$

$

Not available

6

Gravely 00200045

Bolt, .38-16 x 1.25 Round Head Square Neck

$6.99

$

Usually ships in 4-12 days

0

7

Gravely 00964024

Locknut, .75-16 Crown Y
(Superseded to 06500031)

$3.99

$

In Stock, Qty 12

0

8

Gravely N/A

Pulley, Cutter Housing -

$

$

Currently unavailable

Refer to Deck Assembly on page 14

Refer to Deck Assembly on page 14

$

$

Not available

9

Gravely 03399703

Spacer, Spindle Top-Pulley

$3.99

$

In Stock, Qty 11

0

10

Gravely 00967348

Bolt, 5/8-11 x 2.00 Hex 8
(Superseded to 05901725)

$5.99

$

In Stock, Qty 12

0

11

Gravely 00960502

Nut, .38-16 Standard Hex Grade 5

$

$

Not available

12

Gravely D18055

Washer, .630 x 1.50 x .250 Flat
(Superseded to 06401033)

$6.99

$

In Stock, only 4 left!

0

13

Gravely GDU10231

Blade, 18.000 x .80 Lift

$27.99

$

In Stock, Qty 20+

0

14

Gravely GDU10230

Blade, 16.500 x .80 Lift

$27.99

$

In Stock, Qty 19

0

15

Gravely 00959995

Zerk, Grease S/O

$3.49

$

Usually ships in 4-12 days

0
