994806 (1952 S) - Ariens Pro-Zoom 52" Stand-On Mower, 19hp Kawasaki (SN: 000101 - 002499) Deck Assembly - 52-Inch Decks Parts Diagram

Pro-Zoom 52" Stand-On Mower, 19hp Kawasaki

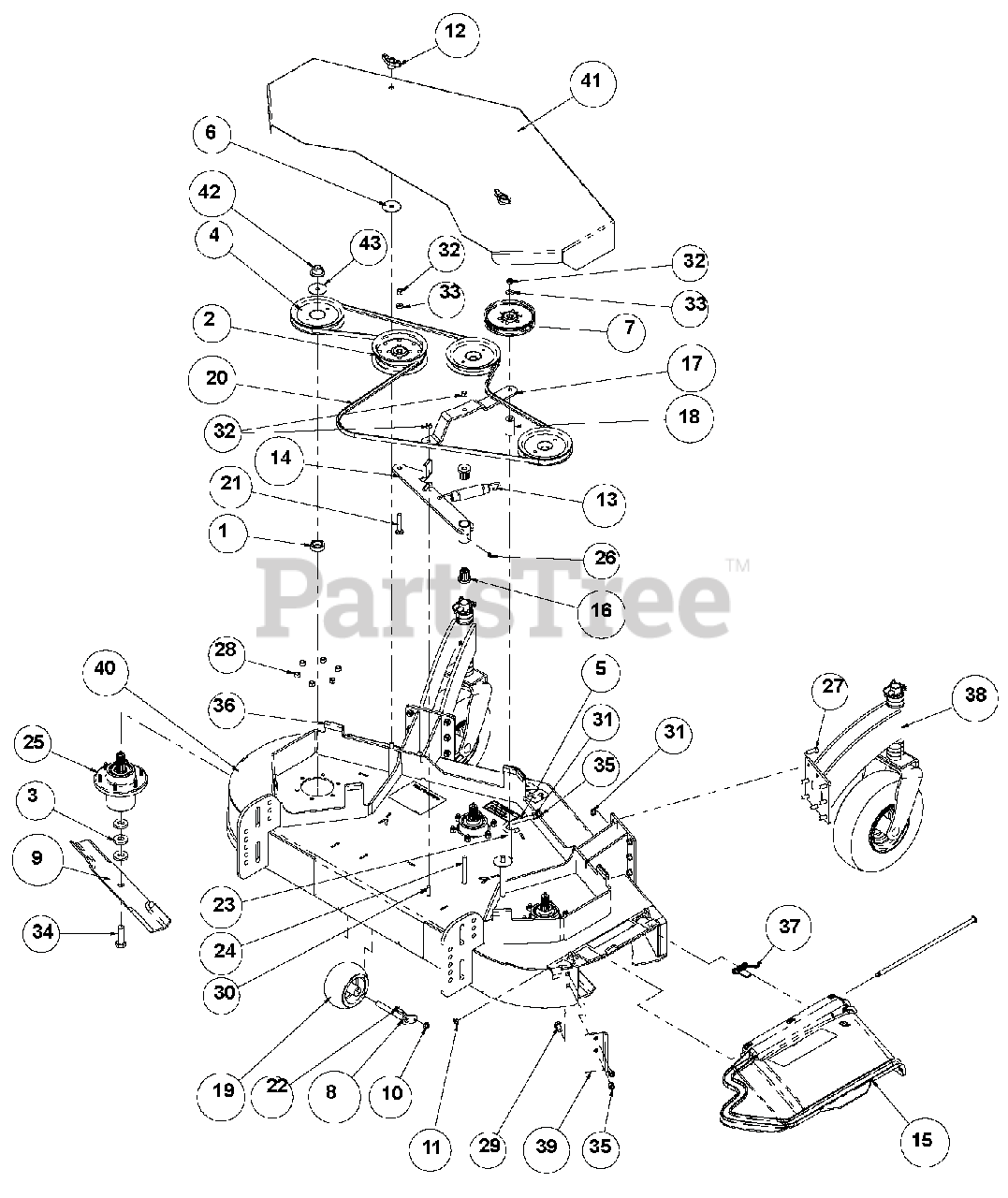

Deck Assembly - 52-Inch Decks Parts Diagram

  • Title

1

Ariens 00874200

SPACER, PULLEY
(Superseded to D13024)

$14.99

$

In Stock, only 2 left!

0

2

Ariens 07300107

PULLEY, FLAT TENSION IDLER
(Superseded to D18032)

$82.99

$

In Stock, Qty 5

0

3

Ariens 00875400

SPACER, BLADE BOLT
(Superseded to D18055)

$7.49

$

In Stock, only 4 left!

0

4

Ariens 03399702

PULLEY, SPLINE SPINDLE LSE

$76.99

$

In Stock, only 4 left!

0

5

Ariens 00876900

J-HOOK
(Superseded to D23058)

$6.49

$

Usually ships in 4-12 days

0

6

Ariens 06400030

WSHR-FL-STL .402X2.00X.055 YWZ

$4.99

$

Usually ships in 4-12 days

0

7

Ariens 07300112

PULLEY, FLAT BLADE-TO-BLADE
(Superseded to D28050)

$

$

Not available

8

Ariens 00878000

PIVOT, ANTI-SCALP ROLLER

$

$

Not available

9

Ariens 00878200

18.0" BLADE, 52" DECK
(Superseded to GDU10231)

$31.99

$

In Stock, Qty 16

0

10

Ariens 06500035

NUT-1/4" FLANGE PREVAILING TOR

$2.49

$

Usually ships in 4-12 days

0

11

Ariens 06900107

CLIP, RETAINER

$

$

Not available

12

Ariens 00955100

KNOB, 3/8-16 INSERT
(Superseded to M119352)

$3.99

$

In Stock, only 4 left!

0

13

Ariens 08300040

SPRING, DECK BELT TENSION
(Superseded to N242189)

$10.99

$

Usually ships in 4-12 days

0

14

Ariens 07300117

ARM, IDLER ENGINE-TO-BLADE
(Superseded to TCA15346)

$145.99

$

In Stock, only 1 left!

0

15

Ariens 00873900

DISCHARGE CHUTE, 48" DECK

$

$

Not available

16

Ariens TCU14540

BRG, FLG M10XM25XM27 FLUTED

$18.99

$

In Stock, only 3 left!

0

17

Ariens 00949900

STRAP, IDLER PULLEY
(Superseded to TCU18344)

$40.99

$

Usually ships in 4-12 days

0

18

Ariens 00886100

SPACER, BLADE-TO-BLADE PULLEY
(Superseded to TCU18742)

$19.99

$

Usually ships in 4-12 days

0

19

Ariens 07200327

V-BELT, 4L-RAW EDGE
(Superseded to 07238500)

$30.99

$

In Stock, Qty 5

0

20

Ariens 07200120

BELT, ENGINE-TO-BLADES, 52"DEC
(Superseded to TCU18848)

$108.99

$

In Stock, only 2 left!

0

21

Ariens 06213400

@BLT-RDHDSQNK .38-16X2.25 G5YZ
(Superseded to 06200301)

$4.99

$

In Stock, Qty 20+

0

22

Ariens 03H1729

BOLT, 1/4 X 1.00 A17D ZINC
(Superseded to 06219800)

$2.49

$

Usually ships in 4-12 days

0

23

Ariens 05900106

BOLT, 3/8-16 X 3-3/4 CHCS

$

$

Not available

24

Ariens 05900108

BOLT, 3/8-16 X 4.00 CHCS

$

$

Not available

25

Ariens 00200262

ASSY, SPINDLE S/O

$294.99

$

In Stock, only 1 left!

0

26

Ariens 07037900

GREASE ZERK, 1/4-28 STR .69 LG
(Superseded to 00959995)

$3.99

$

Usually ships in 4-12 days

0

27

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

28

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

29

Ariens 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

30

Ariens 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

31

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 17

0

32

Ariens 06543800

NUT, .38-16 LOW CROWN LK ACORN
(Superseded to 06534900)

$1.99

$

In Stock, Qty 17

0

33

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 00967348

BOLT, 5/8-11 X 2.00 HEX 8 Y
(Superseded to 05901725)

$6.49

$

In Stock, only 2 left!

0

35

Ariens 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

36

Ariens 00999538

TRIM, LOCK 1/4" EDGE

$6.49

$

Usually ships in 4-12 days

0

37

Ariens 03393800

SPRING, TORSION .460"X.138"

$6.49

$

Usually ships in 4-12 days

0

38

Ariens 03733014

ASSY, WHEEL & STRUT (ARIENS)

$

$

Not available

39

Ariens 03754059

PLATE, EXTENDER 48" HYDRO

$

$

Not available

40

Ariens 03761850

ASSY, 52 ARIENS FIXED DECK

$

$

Not available

41

Ariens 03761959

WLDT, ARIENS DECK SHIELD

$

$

Not available

42

Ariens 00964024

LOCKNUT, 3/4-16 CROWN PL
(Superseded to 06500031)

$3.99

$

In Stock, Qty 20+

0

43

Ariens 03399703

WASHER, .75X1.3125X.120
(Superseded to 06401037)

$2.49

$

In Stock, Qty 10

0
