994806 (1952 S) - Ariens Pro-Zoom 52" Stand-On Mower, 19hp Kawasaki (SN: 000101 - 002499) Pump Components Parts Diagram

Pro-Zoom 52" Stand-On Mower, 19hp Kawasaki

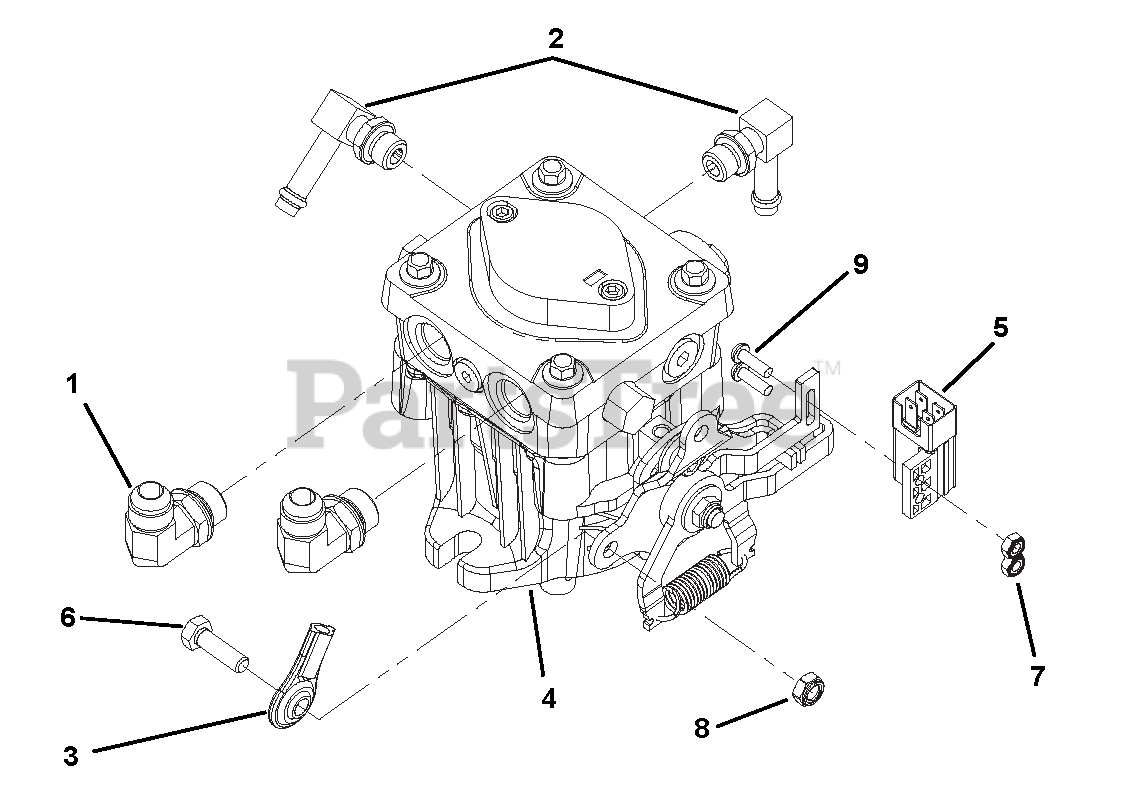

Pump Components Parts Diagram

  • Title

1

Ariens 00954100

FITTING, INCLUDES O-RING
(Superseded to D14196)

$5.99

$

Usually ships in 4-12 days

0

2

Ariens 07019700

FTG-ADPTR .562-18 ST THD

$6.99

$

Usually ships in 4-12 days

0

3

Ariens 03787100

ALIGNABALL, 5/16 RH THREAD

$12.99

$

In Stock, Qty 5

0

4

Ariens 00881400

PUMP, RH
(Superseded to TCA14965)

$841.99

$

Usually ships in 4-12 days

0

Ariens 00881500

PUMP, LH
(Superseded to TCA14966)

$841.99

$

Usually ships in 4-12 days

0

5

Ariens 00953100

SWITCH, PLUNGER DP -N.O.-N.C.
(Superseded to 08828100)

$20.99

$

Usually ships in 4-12 days

0

6

Ariens 09546900

SPINDLE, STEERING FWD TOWER 70

$

$

Not available

7

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

8

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

9

Ariens 06111100

SCR-MCH 10-24X.62 P/HD

$0.99

$

In Stock, Qty 16

0
