994806 (1952 S) - Ariens Pro-Zoom 52" Stand-On Mower, 19hp Kawasaki (SN: 000101 - 002499) Wheel and Strut Assembly Parts Diagram

Pro-Zoom 52" Stand-On Mower, 19hp Kawasaki

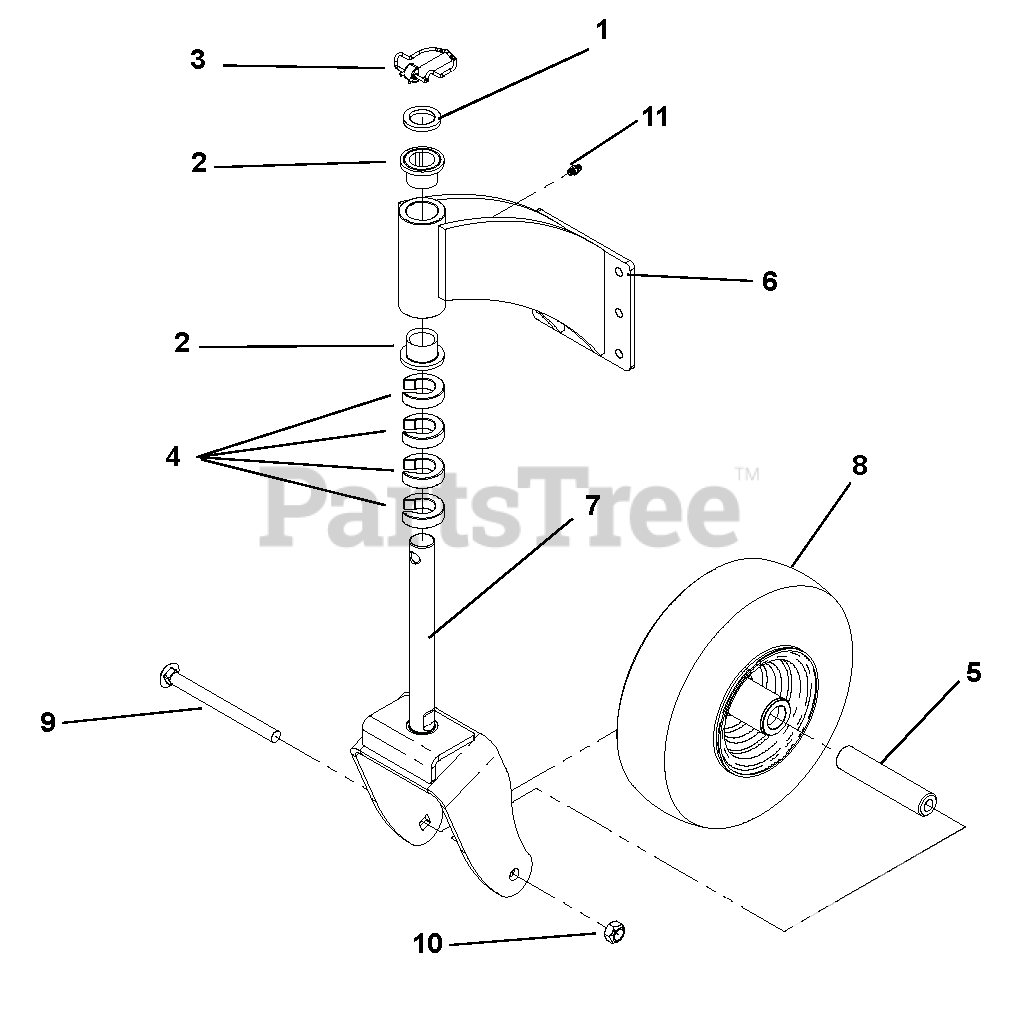

Wheel and Strut Assembly Parts Diagram

  • Title

1

Ariens 00958000

BUSHING, 1.03X1.501.179
(Superseded to D13008)

$9.99

$

Usually ships in 4-12 days

0

2

Ariens 00958100

BRG, FLG 1.00X1.25X1.00
(Superseded to D18076)

$5.99

$

In Stock, only 3 left!

0

3

Ariens 00958200

PIN, LOCK .438 X 2.00
(Superseded to 00161397)

$9.49

$

In Stock, only 2 left!

0

4

Ariens 00958300

C-SPACER, 1.00X1.77X.50
(Superseded to 00164145)

Note: (52-inch Decks)

$3.99

$

In Stock, Qty 7

0

5

Ariens 00958400

TUBE, 1.00X.50X4.76
(Superseded to 00191049)

$51.99

$

In Stock, only 2 left!

0

6

Ariens 03733059

WLDT, CASTER MOUNT ARIENS 52

Note: (52-inch Decks)

$

$

Not available

7

Ariens 03734359

WLDT, FR WHEEL FORK ARIENS 52

Note: (52-inch Decks)

$180.99

$

Usually ships in 4-12 days

0

8

Ariens 00958700

WHEEL, FRONT 11X4X5

$

$

Not available

9

Ariens 00963011

BOLT, 1/2-13X6.00 CRG Y
(Superseded to 06223400)

$9.49

$

Usually ships in 4-12 days

0

10

Ariens AA964000

LOCKNUT, 1/2-13 CROWN Y
(Superseded to 06528200)

$3.99

$

In Stock, only 2 left!

0

11

Ariens 07037900

GREASE ZERK, 1/4-28 STR .69 LG
(Superseded to 00959995)

$3.49

$

Usually ships in 4-12 days

0
