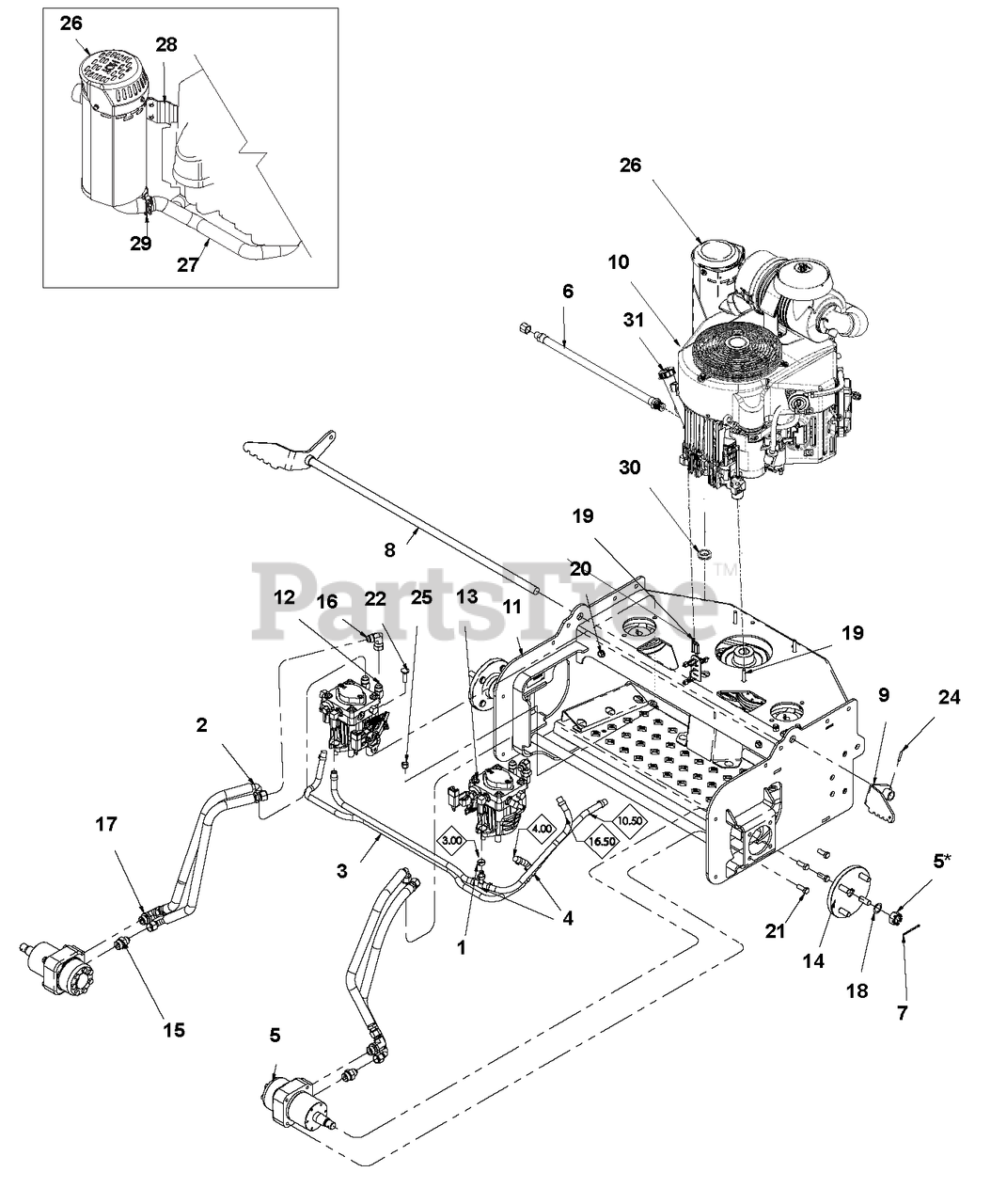

994806 (1952 S) - Ariens Pro-Zoom 52" Stand-On Mower, 19hp Kawasaki (SN: 002500 & Above) Engine, Hydraulic And Mainframe Assembly Parts Diagram

Pro-Zoom 52" Stand-On Mower, 19hp Kawasaki

Engine, Hydraulic And Mainframe Assembly Parts Diagram

  • Title

1

Ariens 00876600

HOSE CLAMP
(Superseded to D18394)

$97.99

$

In Stock, only 1 left!

0

2

Ariens 00876700

HOSE, HIGH PRESSURE
(Superseded to D18394)

$97.99

$

In Stock, only 1 left!

0

3

Ariens 00945300

HOSE, 3/8 SAE30R7 FUEL & OIL
(Superseded to DT5332)

$6.99

$

Usually ships in 4-12 days

0

4

Ariens 00879200

TEE FITTING
(Superseded to M86863)

$

$

Not available

5

Ariens 04915500

MOTOR, HYD WHEEL
(Superseded to 05015500)

Note: (*Includes Castle Nut, tighten to 163 N.m (120 lbf-ft))

$1002.99

$

Usually ships in 4-12 days

0

6

Ariens 04271700

DRAIN, M20 OIL

$36.99

$

Usually ships in 4-12 days

0

7

Ariens 06714100

@PIN-CTR .125X2.00 YWZC

$

$

Not available

8

Ariens 00896600

WLDT, BRAKE SHAFT
(Superseded to 00200612)

$

$

Not available

9

Ariens 00897000

WLDT, RH BRAKE ARM

$

$

Not available

10

Ariens 08200720

ENGINE, KAWASAKI FX600

$

$

Not available

11

Ariens 50546010

WLDT, DECK FRAME W/DCALS ARIEN

$

$

Not available

12

Ariens 00200721

ASSEMBLY, HYD PUMP

$

$

Not available

13

Ariens 00200722

ASSEMBLY, HYD PUMP

$1683.99

$

Usually ships in 4-12 days

0

14

Ariens 00200954

ASSY, REAR WHEEL HUB

$

$

Not available

15

Ariens 07025800

ADAPTER, HYD ST 7/8 "O" TO 3/4

$14.99

$

In Stock, only 1 left!

0

16

Ariens 00942900

ADAPTER, 3/4 FESW X 3/4MJICX90
(Superseded to 00231046)

$

$

Not available

17

Ariens 07036500

ADAPTER, 8MJ-10MB90

$

$

Not available

18

Ariens 05500132

BUSHING, MACH .750X1.25X.048 Y
(Superseded to 00150052)

$5.99

$

Usually ships in 4-12 days

0

19

Ariens 05901507

BLT-HEX.38-16X1.25FTHG5 EP80YZ

$3.49

$

In Stock, Qty 7

0

20

Ariens 00960044

BOLT, 3/8-16X1.00 FGH 8 Y

$3.49

$

Usually ships in 4-12 days

0

21

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

22

Ariens 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$3.99

$

In Stock, Qty 20+

0

23

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.99

$

In Stock, Qty 5

0

24

Ariens 05802900

PIN-ROLL .156X1.00

$1.49

$

In Stock, Qty 12

0

25

Ariens 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.99

$

In Stock, Qty 20+

0

26

Ariens 04311710

MUFFLER, KAWASAKI FX OFS STD

$

$

Not available

27

Ariens 04311720

MANIFOLD, EXH KAWASAKI FX STD

$

$

Not available

28

Ariens 04311730

BRACKET, MUFFLER KAWI OFS STD

$

$

Not available

29

Ariens 04311740

CLAMP, MUFFLER KAWI FX STD

$

$

Not available

30

Ariens 03384007

GROMMET:RUB:.88IDX1.38ODX.14GR

$4.99

$

Usually ships in 4-12 days

0

31

Ariens TCA15122

CAP, FILLER, OIL

$29.99

$

In Stock, only 2 left!

0
