994806 (1952 S) - Ariens Pro-Zoom 52" Stand-On Mower, 19hp Kawasaki (SN: 002500 & Above) Hydraulic Components Parts Diagram

Pro-Zoom 52" Stand-On Mower, 19hp Kawasaki

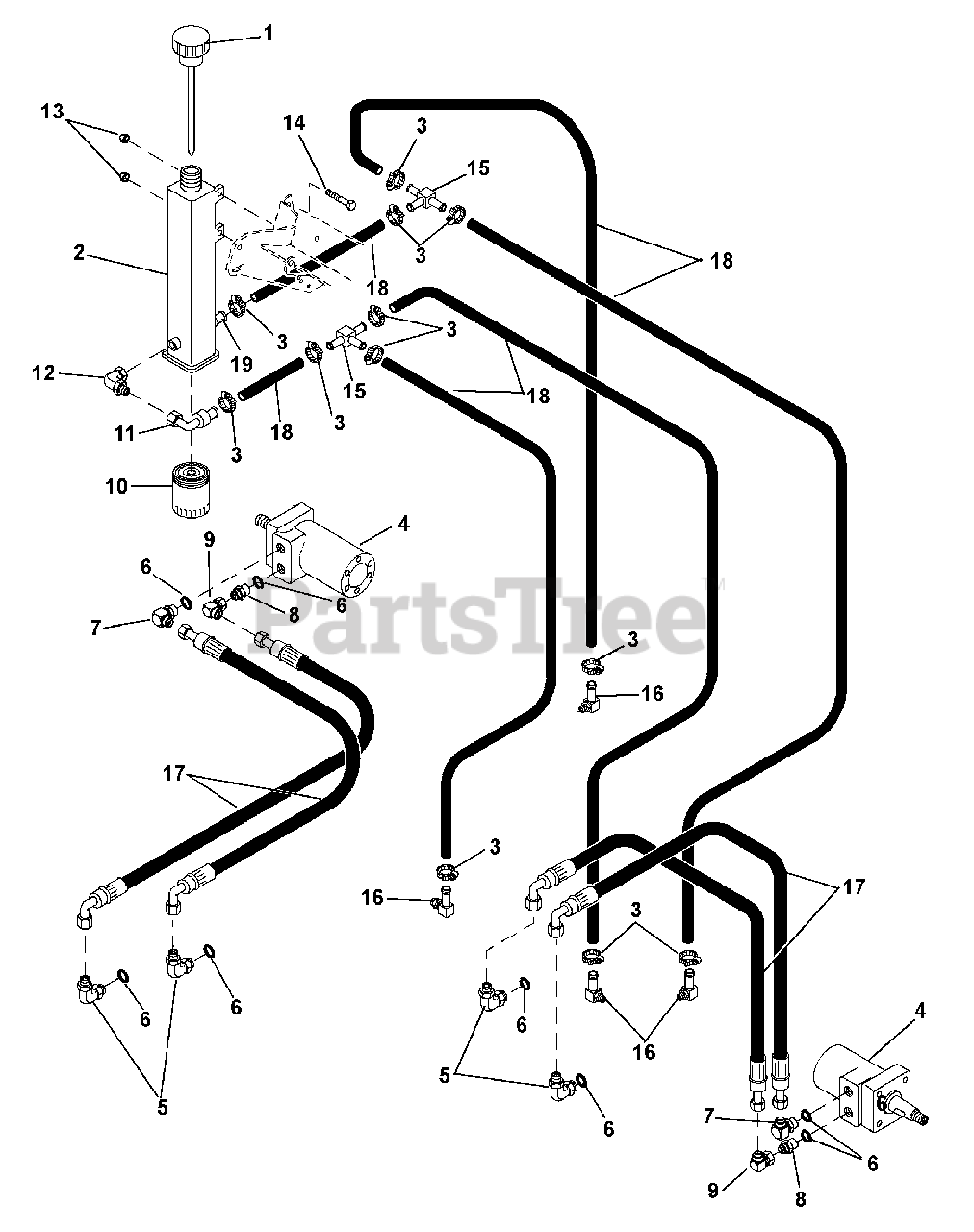

Hydraulic Components Parts Diagram

  • Title

1

Ariens 00882500

CAP
(Superseded to TCA15122)

$27.99

$

Usually ships in 4-12 days

0

2

Ariens 00883300

HYDRAULIC RESERVOIR, INC DECAL
(Superseded to TCA15373)

$

$

Not available

3

Ariens 00876600

HOSE CLAMP

$

$

Not available

4

Ariens 04915500

MOTOR, HYD WHEEL
(Superseded to 05015500)

$905.99

$

In Stock, only 2 left!

0

5

Ariens 00954100

FITTING, INCLUDES O-RING
(Superseded to D14196)

$5.99

$

Usually ships in 4-12 days

0

6

Ariens 05600007

O-RING, INCLUDED WITH FITTING

$

$

Not available

7

Ariens 07036500

ADAPTER, 8MJ-10MB90

$

$

Not available

8

Ariens 07025800

ADAPTER, HYD ST 7/8 "O" TO 3/4

$13.99

$

In Stock, only 2 left!

0

9

Ariens 00942900

ADAPTER, 3/4 FESW X 3/4MJICX90
(Superseded to 00231046)

$

$

Not available

10

Ariens 00669300

ELEMENT, OIL FILTER

$26.99

$

In Stock, Qty 8

0

11

Ariens 00954500

ELBOW FITTING

$14.99

$

Usually ships in 4-12 days

0

12

Ariens 08800800

ADPT 2503-6-6
(Superseded to 00313270)

$9.49

$

In Stock, only 1 left!

0

13

Ariens 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

14

Ariens 00960045

BOLT, 3/8-16X.750 HEX 5 Y
(Superseded to 05959400)

$1.49

$

In Stock, only 2 left!

0

15

Ariens 00879200

TEE FITTING
(Superseded to M86863)

$

$

Not available

16

Ariens 07019700

FTG-ADPTR .562-18 ST THD

$6.99

$

Usually ships in 4-12 days

0

17

Ariens 00876700

HOSE, HIGH PRESSURE
(Superseded to D18394)

$92.99

$

Usually ships in 4-12 days

0

18

Ariens 00945300

HOSE, 3/8 SAE30R7 FUEL & OIL
(Superseded to DT5332)

$5.99

$

Usually ships in 4-12 days

0

19

Ariens 00954400

ADAPTER, STRAIGHT FITTING

$5.99

$

Usually ships in 4-12 days

0

Ariens 00879100

TIE STRAPS

$

$

Not available
