994806 (1952 S) - Ariens Pro-Zoom 52" Stand-On Mower, 19hp Kawasaki (SN: 002500 & Above) Main Frame Assembly Parts Diagram

Pro-Zoom 52" Stand-On Mower, 19hp Kawasaki

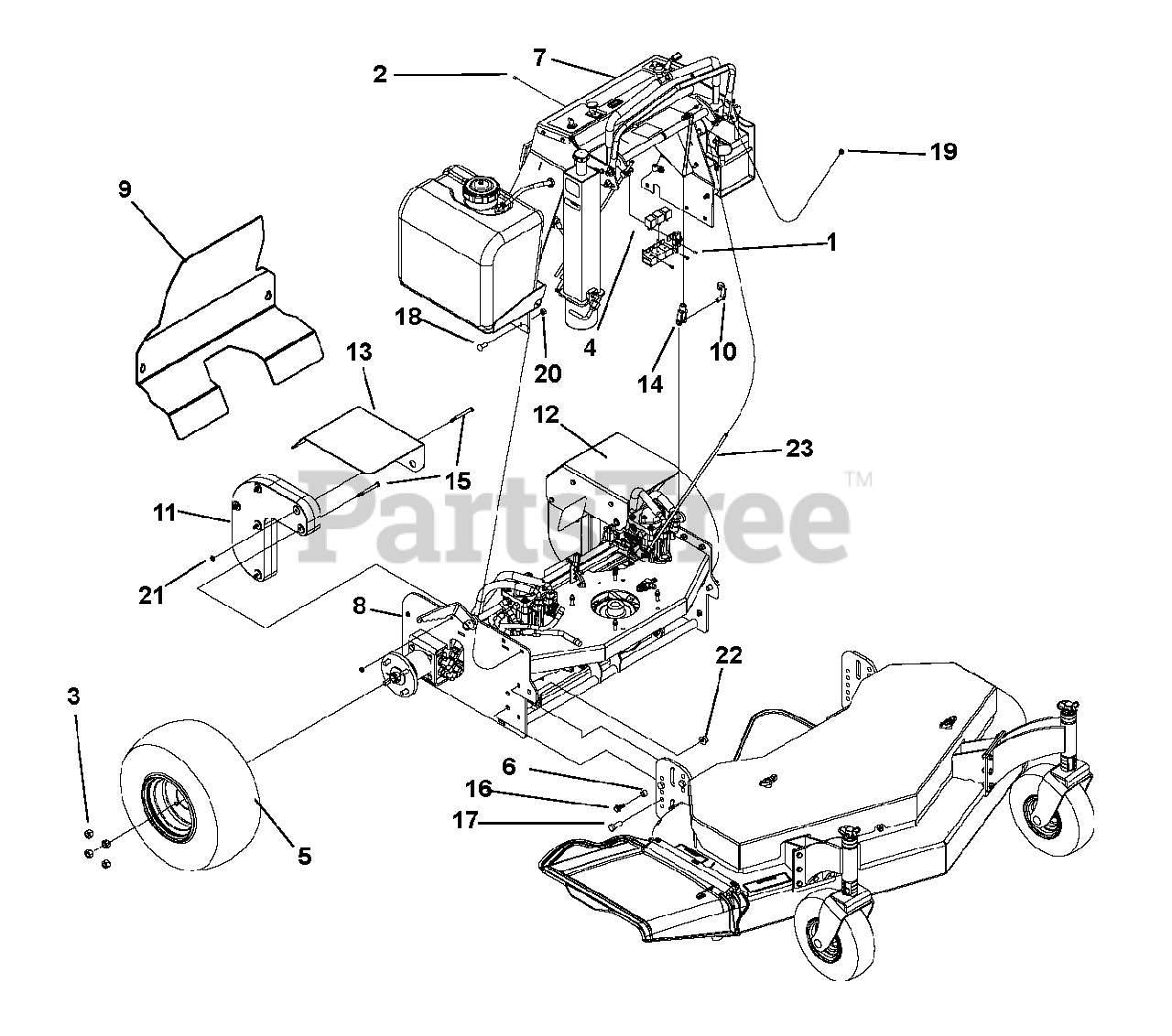

Main Frame Assembly Parts Diagram

  • Title

1

Ariens 06200013

@BLT-HEX 8-32 X .5 YWZC

$

$

Not available

2

Ariens 06531300

@NUT-LK-NYL 8-32 W/INSTR YWZC

$1.99

$

Usually ships in 4-12 days

0

3

Ariens 00960526

NUT, 1/2-20 LUG C
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 00888400

RELAY, ISO MINI ELEC.
(Superseded to 00102770)

$21.99

$

In Stock, only 1 left!

0

5

Ariens 00200601

ASSY, TIRE/WHL 18/8.5X8 YELLOW
(Superseded to 00200779)

$

$

Not available

6

Ariens 00942000

SPACER, .625X.120X.400 Y
(Superseded to 00200672)

$12.99

$

Usually ships in 4-12 days

0

7

Ariens 03731516

ASSEMBLY, ARIENS CONTROL PANEL

$

$

Not available

8

Ariens 03731106

POWER UNIT ARIENS 52 KAI

$

$

Not available

9

Ariens 03732650

GUARD, FOOT W/DECAL ARIENS 52

$

$

Not available

10

Ariens 06700005

PIN, CVS SPG 3/8" YOKE SPEC Y
(Superseded to 00200658)

$

$

Not available

11

Ariens 00942300

WEIGHT, CAST DRILLED
(Superseded to 00200775)

$

$

Not available

12

Ariens 03734259

FENDER, LH PAINTED ARIENS

$

$

Not available

13

Ariens 03832759

FENDER, RH PAINTED ARIENS

$

$

Not available

14

Ariens 00251907

YOKE, 3/8-24 RH ADJUSTABLE

$15.99

$

Usually ships in 4-12 days

0

15

Ariens 05971700

@BLT-HEX .31-18X3.25 GR5 YWZC

$

$

Not available

16

Ariens 00960044

BOLT, 3/8-16X1.00 FGH 8 Y

$2.49

$

Usually ships in 4-12 days

0

17

Ariens 05958900

@BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

18

Ariens 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06529500

NUT-HEX .312-24 YWZC
(Superseded to 06500939)

$1.99

$

Usually ships in 4-12 days

0

20

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

22

Ariens 06543300

NUT-SPNLK-FLG .50-13 YWZC
(Superseded to 06500928)

$3.99

$

Usually ships in 4-12 days

0

23

Ariens 00874400

CONTROL ROD
(Superseded to D13029)

$43.99

$

Usually ships in 4-12 days

0
