995025 - Parker Truck Loader with 10" Hose (SN: 000101 & Above) Engine & Base Assembly Parts Diagram

Truck Loader with 10" Hose

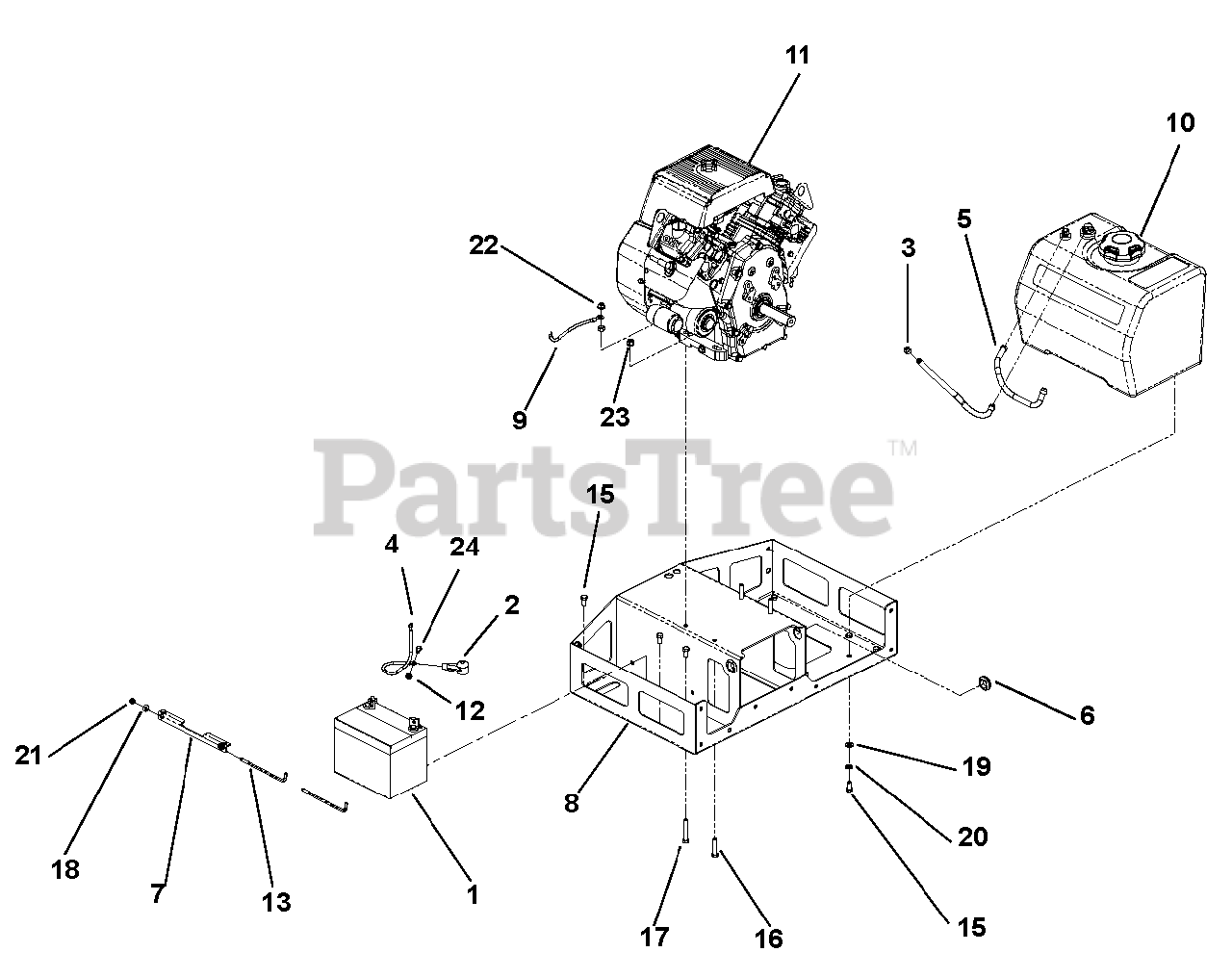

Engine & Base Assembly Parts Diagram

  • Title

1

Gravely N/A

Battery, 12V-U1-CCA270MIN

$

$

Currently unavailable

2

Gravely 00525800

Battery Terminal Boot, Red

$8.49

$

Usually ships in 4-12 days

0

3

Gravely R5610100

Clamp, Fuel Line

$

$

Not available

4

Gravely 03286000

Cable, Positive Battery 9.00" REVA2

$9.99

$

In Stock, only 2 left!

0

5

Gravely 03278100

Gas Hose, Low Perm .25 x 18"

$1.49

$

In Stock, Qty 20+

0

6

Gravely 03384007

Grommet, Rubber .88 ID x 1.38 OD x .14 GR

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 04231453

Strap, Battery Hold Down

$

$

Not available

8

Gravely 04244553

Weldment, Frame Base

$

$

Not available

9

Gravely 04267200

Cable, Battery Negative 10" .25 x .37

$

$

Not available

10

Gravely 04953200

Fuel Tank Assembly

$258.99

$

Usually ships in 4-12 days

0

11

NA*

Engine, Subaru 22 HP (995841)

Note: (995841)

$

$

Not available

Engine, Subaru 20 HP (995025)

Engine, Subaru 20 HP (995025)

Note: (995025)

$

$

Not available

12

Gravely R1079570

Nut, Lock Flange .25-20 YWZC

$

$

Not available

13

Gravely P360455

J-Bolt, 1/4-20

$7.99

$

Usually ships in 4-12 days

0

14

Gravely P88-112-B

Ring, Rubber Foot

$

$

Not available

15

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade 5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 10

0

16

Gravely 05958500

Bolt, Hex .38-16 x 1.75 Grade 5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 11

0

17

Gravely 05962900

Bolt, Hex .38-16 x 2.25 Grade 5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 15

0

18

Gravely 06437300

Washer, Flat .281 x .62 x .065 Stl YWZC
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

19

Gravely 06436300

Washer, Flat 1.010 x 1.505 x .062 Stl YWZC
(Superseded to 06401132)

$1.99

$

In Stock, Qty 12

0

20

Gravely 06308800

Washer, Lock .38 x .094 Reg YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 7

0

21

Gravely 06531000

Nut, Nyloc .25-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, only 1 left!

0

22

Gravely 06545500

Nut, Nyloc Flange .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 06529400

Nut, Hex .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06006127

Screw, Flange Head 1/4-20 x 5/8

$

$

Not available
