995025 - Parker Truck Loader with 10" Hose (SN: 000101 & Above) Fan Housing Assembly Parts Diagram

Truck Loader with 10" Hose

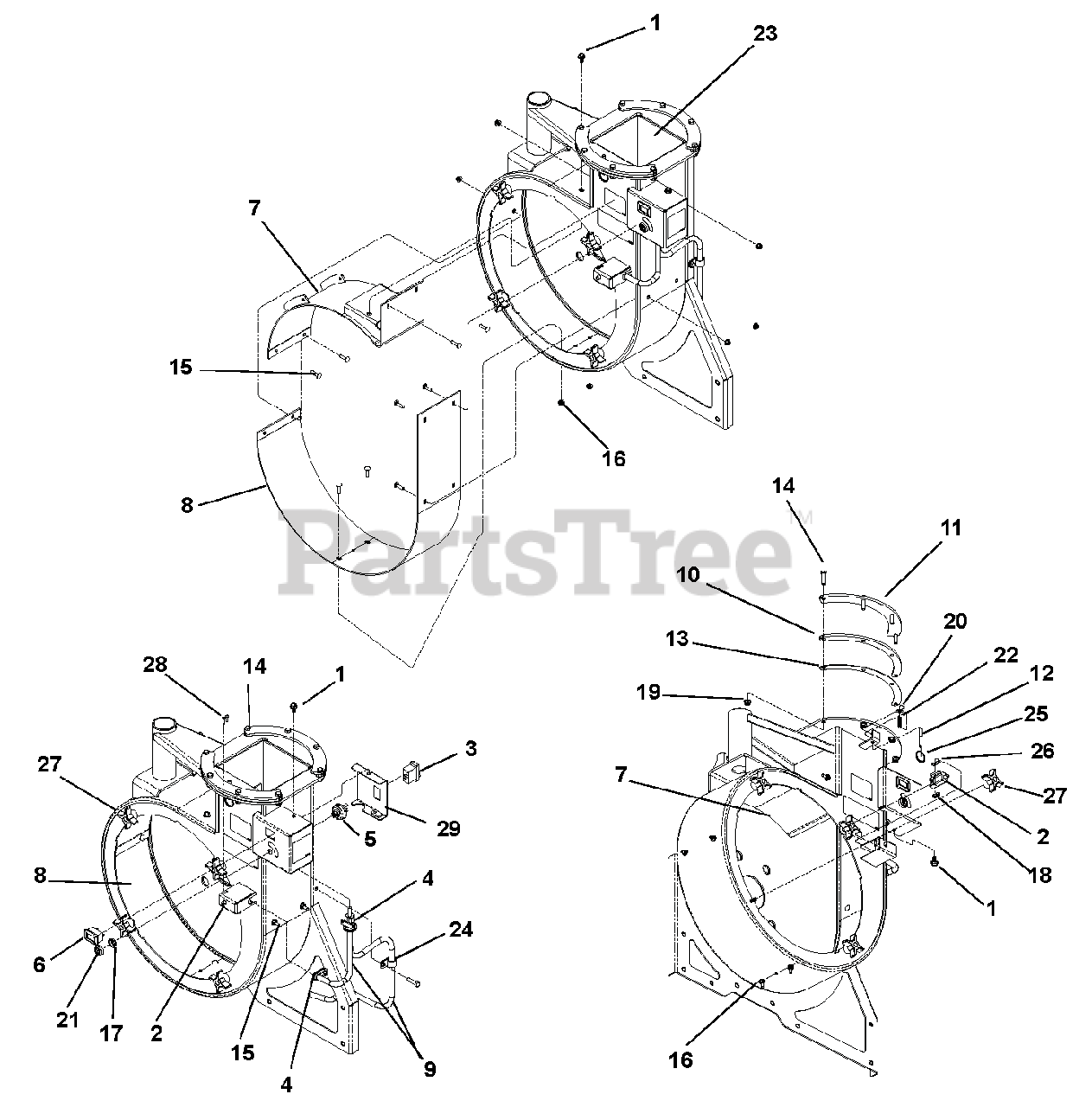

Fan Housing Assembly Parts Diagram

  • Title

1

Gravely 00147841

BOLT, 5/16-18X.625 FGH 5 Y

$

$

Not available

2

Gravely 00191256

SWITCH, PLUNGER DP - N.O.-N.C.
(Superseded to 08828100)

$21.99

$

In Stock, only 1 left!

0

3

Gravely 03272600

SWITCH-ROCKER, MOMENTARY
(Superseded to 03374200)

$19.99

$

Usually ships in 4-12 days

0

4

Gravely 03384007

GROMMET:RUB:.88IDX1.38ODX.14GR

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 03602300

KEY SWITCH

$26.99

$

In Stock, Qty 13

0

Gravely 00105684

KEY-IGN SERVICE ONLY
(Superseded to 02460700)

$10.99

$

In Stock, Qty 20+

0

6

Gravely 04196510

METER, HOUR SMART SENSE W/O SV

$63.99

$

Usually ships in 4-12 days

0

7

Gravely 04217553

WLDT, BAFFLE 22 TR (RED)

Note: (995841)

$137.99

$

Usually ships in 4-12 days

0

Gravely 04246553

LINER, 20 TRUCK LOADER (RED)

Note: (995025)

$105.99

$

Usually ships in 4-12 days

0

8

Gravely 04217653

PLATE, LINER 22HP (RED)

Note: (995841)

$114.99

$

Usually ships in 4-12 days

0

Gravely 04260953

LINER, LOWER - 20 TRUCK LOADER

Note: (995025)

$

$

Not available

9

Gravely 04236000

WIRE HARNESS, TRUCK LOADERS

$

$

Not available

10

Gravely 04240453

SPACER, FLANGE (RED)

$

$

Not available

11

Gravely 04240553

FLANGE, TOP (RED)

$

$

Not available

12

Gravely 04265100

PIN, SPRING LATCH

$30.99

$

Usually ships in 4-12 days

0

13

Gravely 04265653

SPACER, FLANGE .060 (RED)

$

$

Not available

14

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 12

0

15

Gravely 06219800

BLT-RDHDSQNK .25-20X1.00 G5YZ
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

16

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06517400

NUT- PANEL .562-24 GRECO

$21.99

$

In Stock, Qty 6

0

18

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 07517700

CAP - IGNITION SWITCH

$3.99

$

In Stock, Qty 11

0

22

Gravely 08300700

SG-COMP .028X.34X1.062 WLD75

$6.49

$

In Stock, only 2 left!

0

23

Gravely 50552017

ASSY, WLDT HOUS W/DECALS - RED

Note: (995841)

$

$

Not available

Gravely 50552004

ASSY, FAN HOUSING W/DECALS RED

Note: (995025)

$

$

Not available

24

Gravely E53830

P-CLIP, .750 INSULATED

$3.99

$

Usually ships in 4-12 days

0

25

Gravely M88183

RING, LOCKING

$

$

Not available

26

Gravely M94087

STRIP, BACK-UP Y

$

$

Not available

27

Gravely P350139

KNOB-5/16 THREAD

$10.99

$

Usually ships in 4-12 days

0

28

Gravely P710130

SCR-MC 8-32 X .62 NICKEL

$

$

Not available

29

Gravely 04217853

WLDT, SWITCH COVER (RED)

$

$

Not available
