995025 - Parker Truck Loader with 10" Hose (SN: 000101 & Above) Fan Housing Assembly Parts Diagram

Truck Loader with 10" Hose

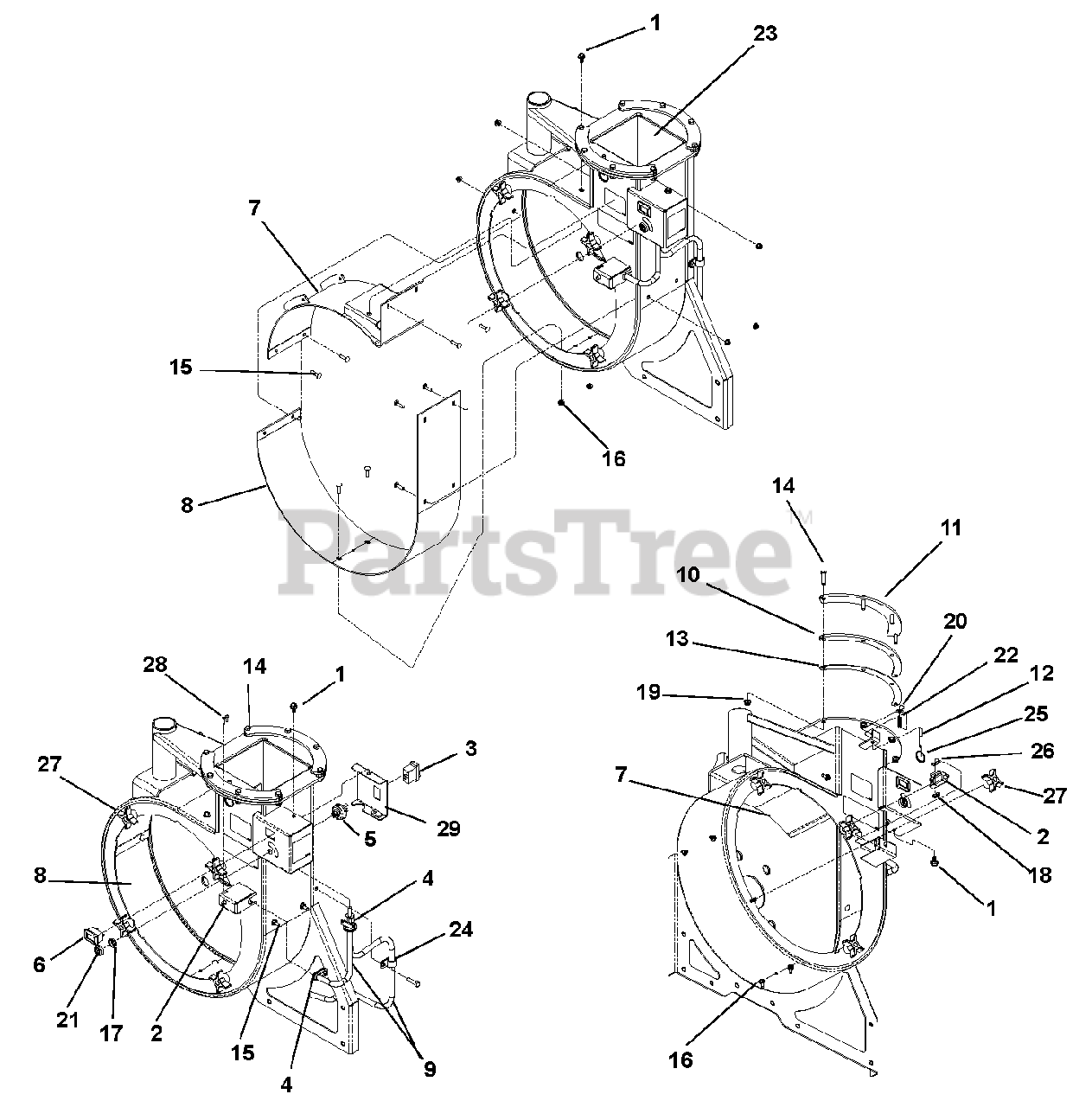

Fan Housing Assembly Parts Diagram

  • Title

1

Gravely 00147841

Bolt, 5/16-18 x .625 Grade 5

$

$

Not available

2

Gravely 00191256

Switch, Plunger N.O.-N.C
(Superseded to 08828100)

$20.99

$

In Stock, only 1 left!

0

3

Gravely 03272600

Switch, Rocker Momentary Rev 0
(Superseded to 03374200)

$19.99

$

Usually ships in 4-12 days

0

4

Gravely 03384007

Grommet, Rubber .881 D x .14 GR

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 03602300

Key Switch

$26.99

$

In Stock, only 2 left!

0

Gravely 00105684

Ignition Key
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

6

Gravely 04196510

Meter, Hour Smart Sense without SV

$59.99

$

Usually ships in 4-12 days

0

7

Gravely 04217553

Baffle, 22 HP (995841)

Note: (995841)

$134.99

$

In Stock, only 1 left!

0

Gravely 04246553

Baffle, 18 HP (995025)

Note: (995025)

$103.99

$

Usually ships in 4-12 days

0

8

Gravely 04217653

Plate, Liner 22 HP (995841)

Note: (995841)

$111.99

$

Usually ships in 4-12 days

0

Gravely 04260953

Plate, Liner 18 HP (995025)

Note: (995025)

$

$

Not available

9

Gravely 04236000

Wire Harness, Truck Loaders

$

$

Not available

10

Gravely 04240453

Spacer, Flange

$

$

Not available

11

Gravely 04240553

Flange, Top

$

$

Not available

12

Gravely 04265100

Pin, Spring Latch

$29.99

$

Usually ships in 4-12 days

0

13

Gravely 04265653

Spacer, Flange .060

$

$

Not available

14

Gravely 05947500

Bolt, Hex .31-18 x 1.25 Grade 5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

15

Gravely 06219800

Bolt, Round Head Square Neck .25-20 x 1.00 Grade 5 YWZC
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

16

Gravely 06500012

Nut, .25-20 Nyloc Flange
(Superseded to 06500813)

$1.49

$

In Stock, Qty 12

0

17

Gravely 06517400

Nut, Panel .562-24 Grieco

$13.99

$

In Stock, only 1 left!

0

18

Gravely 06536000

Nut, Nyloc 10-24 w/insert YWZX
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

19

Gravely 06545400

Nut, Nyloc .31-18 Flange YXZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 19

0

20

Gravely 06437300

Washer, Flat .281 x .62 x .065 Stl YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

21

Gravely 07517700

Cap, Ignition Switch

$3.99

$

In Stock, Qty 9

0

22

Gravely 08300700

Spring, Compression .028 x .34 x 1.062

$5.99

$

Usually ships in 4-12 days

0

23

Gravely 50552017

Weldment, Fan Housing Assembly w/Decals 22 HP (995841)

Note: (995841)

$

$

Not available

Gravely 50552004

Weldment, Fan Housing Assembly w/Decals 20 HP (995025)

Note: (995025)

$

$

Not available

24

Gravely E53830

P-Clip, Insulated .750

$3.99

$

Usually ships in 4-12 days

0

25

Gravely M88183

Ring, Retaining

$

$

Not available

26

Gravely M94087

Strip, Backup

$

$

Not available

27

Gravely P350139

Knob, 5/16 Thread

$9.99

$

Usually ships in 4-12 days

0

28

Gravely P710130

Screw, Machine 8-32 x .62 Nickel

$

$

Not available

29

Gravely 04217853

Weldment, Switch Cover

$

$

Not available
