995025 - Parker Truck Loader with 10" Hose (SN: 000101 & Above) Vacuum Hose Assembly Parts Diagram

Truck Loader with 10" Hose

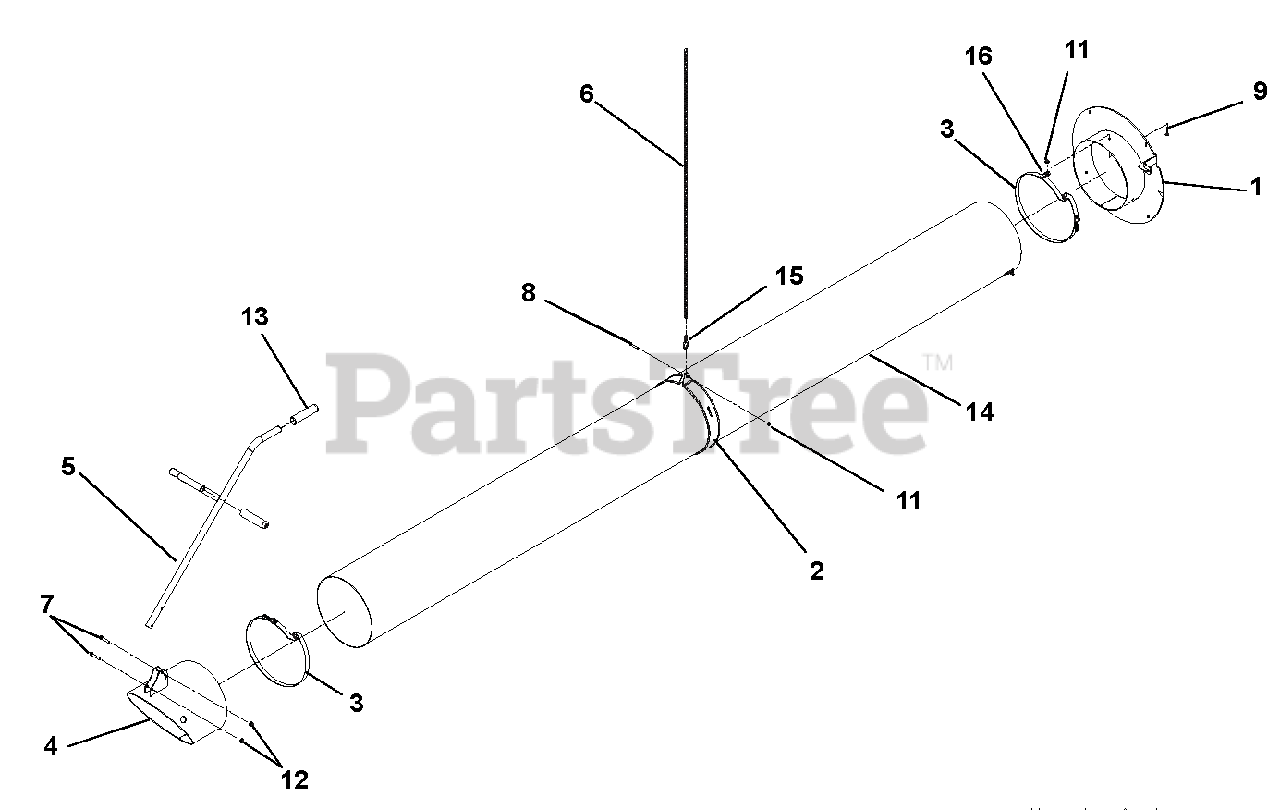

Vacuum Hose Assembly Parts Diagram

  • Title

1

Gravely 04216353

WLDT, COVER PLATE (RED)

Note: (995841)

$

$

Not available

Gravely 04225253

WLDT, INTAKE ADAPTER 10"

Note: (995025)

$

$

Not available

2

Gravely 04217353

BAND, HOSE SUPPORT 12"

Note: (995841)

$

$

Not available

Gravely 04247653

CLAMP 10" - RED

Note: (995025)

$

$

Not available

3

Gravely P360344

CLAMP; BRIDGE 12IN

Note: (995841)

$50.99

$

Usually ships in 4-12 days

0

Gravely P360222

CLAMP-HOSE 10" STEP

Note: (995025)

$58.99

$

Usually ships in 4-12 days

0

4

Gravely 04217453

WLDT, TUBE PICKUP 12" (RED)

Note: (995841)

$

$

Not available

Gravely 04238453

WLDT, TUBE, 10" PICKUP - RED

Note: (995025)

$131.99

$

Usually ships in 4-12 days

0

5

Gravely 04238653

WLDT, HANDLE TRUCK LD (RED)
(Superseded to 04238651)

$

$

Not available

6

Gravely 04247400

CHAIN, .148 X 5 FOOT

$31.99

$

Usually ships in 4-12 days

0

7

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 9

0

8

Gravely 05964700

BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05901935)

$2.49

$

In Stock, Qty 12

0

9

Gravely 06219800

BLT-RDHDSQNK .25-20X1.00 G5YZ
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

10

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

Note: (not shown)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 07518700

HANDLE GRIP
(Superseded to 07500239)

$3.99

$

In Stock, only 2 left!

0

14

Gravely P360386

HOSE 12" X 12' CLEAR

Note: (995841)

$

$

Not available

Gravely P360221

HOSE-10"X 12' FLX-THANE CLEAR

Note: (995025)

$512.99

$

Usually ships in 4-12 days

0

15

Gravely P430103

HOOK-SPRING 2450S-3/16"

$

$

Not available

16

Gravely 04314051

CLIP, HOSE

$

$

Not available
