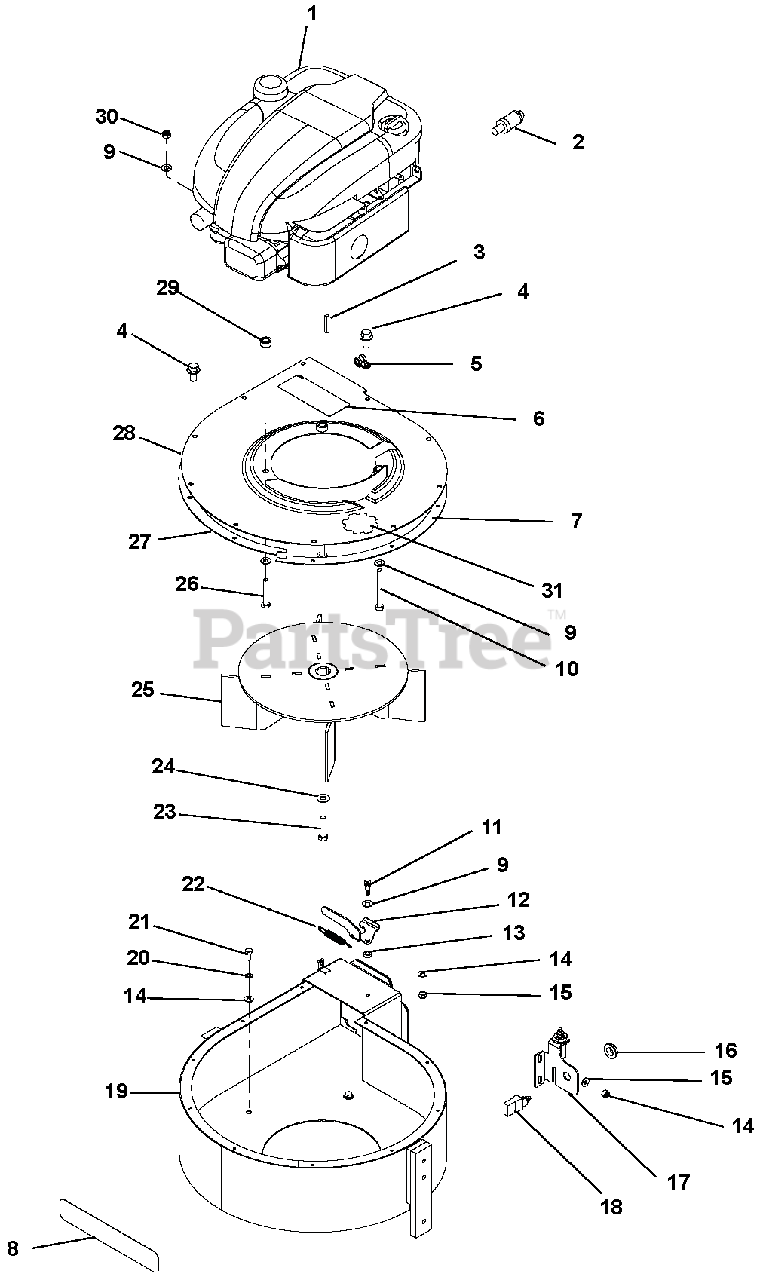

995029 - Gravely APV Vacuum, Briggs & Stratton (SN: 000101 & Above) Engine And Housing Assembly Parts Diagram

APV Vacuum, Briggs & Stratton

Engine And Housing Assembly Parts Diagram

  • Title

1

Gravely 08200633

B&S, PRO 850,SPEC,121Q120122F1

$

$

Not available

2

Gravely P350183

VALVE-OIL DRAIN (6783A) - ORDE

Note: (6783A)

$13.99

$

Usually ships in 4-12 days

0

3

Gravely P74-83-A

3/16 X 1 3/8 " LONG KEY-PY &

$4.99

$

Usually ships in 4-12 days

0

4

Gravely 07430101

SCR-HEX-FLG .25-14 X.63 SLFTAP

$4.99

$

Usually ships in 4-12 days

0

5

Gravely P78-120-A

CUSHIONED LOOP CLAMP-P - 3/8"

$

$

Not available

6

Gravely 04147800

DECAL, DANGER READ MANUAL

$

$

Not available

7

Gravely P410029-1

APV FAN HOUSING GASKET LEFT

$7.49

$

Usually ships in 4-12 days

0

8

Gravely 05239900

DECAL, 9.5" GRAVELY LOGO

$9.49

$

In Stock, Qty 12

0

9

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05962500

BLT-HEX .31-18X3.00 GR5 YWZC
(Superseded to 05901933)

$4.99

$

In Stock, Qty 20+

0

11

Gravely 07070103

BLT-SHLDR .313X.375X.250-20

$4.99

$

Usually ships in 4-12 days

0

12

Gravely P410061

APV-HOLD DOWN LEVER

$

$

Not available

13

Gravely P82-135-A

SPACER-.316 X .498 X .197

$19.99

$

Usually ships in 4-12 days

0

14

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.99

$

In Stock, Qty 12

0

16

Gravely P350135

SWITCH NUT 9250

$4.99

$

Usually ships in 4-12 days

0

17

Gravely P410060-1

APV- BRACKET SWITCH.125R 1S2B

$

$

Not available

18

Gravely P740283

SESWITCH-DELTA (7050-10 REV D)

$

$

Not available

19

Gravely P410010

APV-FAN HOUSING WMT ASSY

$364.99

$

Usually ships in 4-12 days

0

20

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 05900338

BLT-HEX .25-20X.63 GR5 YWZC
(Superseded to 05901722)

$2.99

$

Usually ships in 4-12 days

0

22

Gravely P430051

SPRING-RETURN .313 X .438 X 2.

$4.99

$

Usually ships in 4-12 days

0

23

Gravely 05986700

BLT-HEX .38-24X1.50 HEX 8 YWZC

$4.99

$

Usually ships in 4-12 days

0

24

Gravely P360154

WSR-BELLEVILLE 3/8 (90127A031)

Note: (90127A031)

$4.99

$

Usually ships in 4-12 days

0

25

Gravely P410020BAL

APV-FAN ASSY; BALANCED

$

$

Not available

26

Gravely 05957200

BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$2.49

$

In Stock, Qty 17

0

27

Gravely P410029-2

APV FAN HOUSING GASKET-RIGHT

$7.49

$

Usually ships in 4-12 days

0

28

Gravely 50300800

DECK WLDT WITH DECALS

$

$

Not available

29

Gravely P83-181-A

SPACER-.413 X .75 X .39

$

$

Not available

30

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.99

$

In Stock, Qty 5

0

31

Gravely 08000507

DECAL, GRAVELY HERITAGE-SMALL

$29.99

$

Usually ships in 4-12 days

0
