995029 - Gravely APV Vacuum, Briggs & Stratton (SN: 000101 & Above) Wheel Assembly Parts Diagram

APV Vacuum, Briggs & Stratton

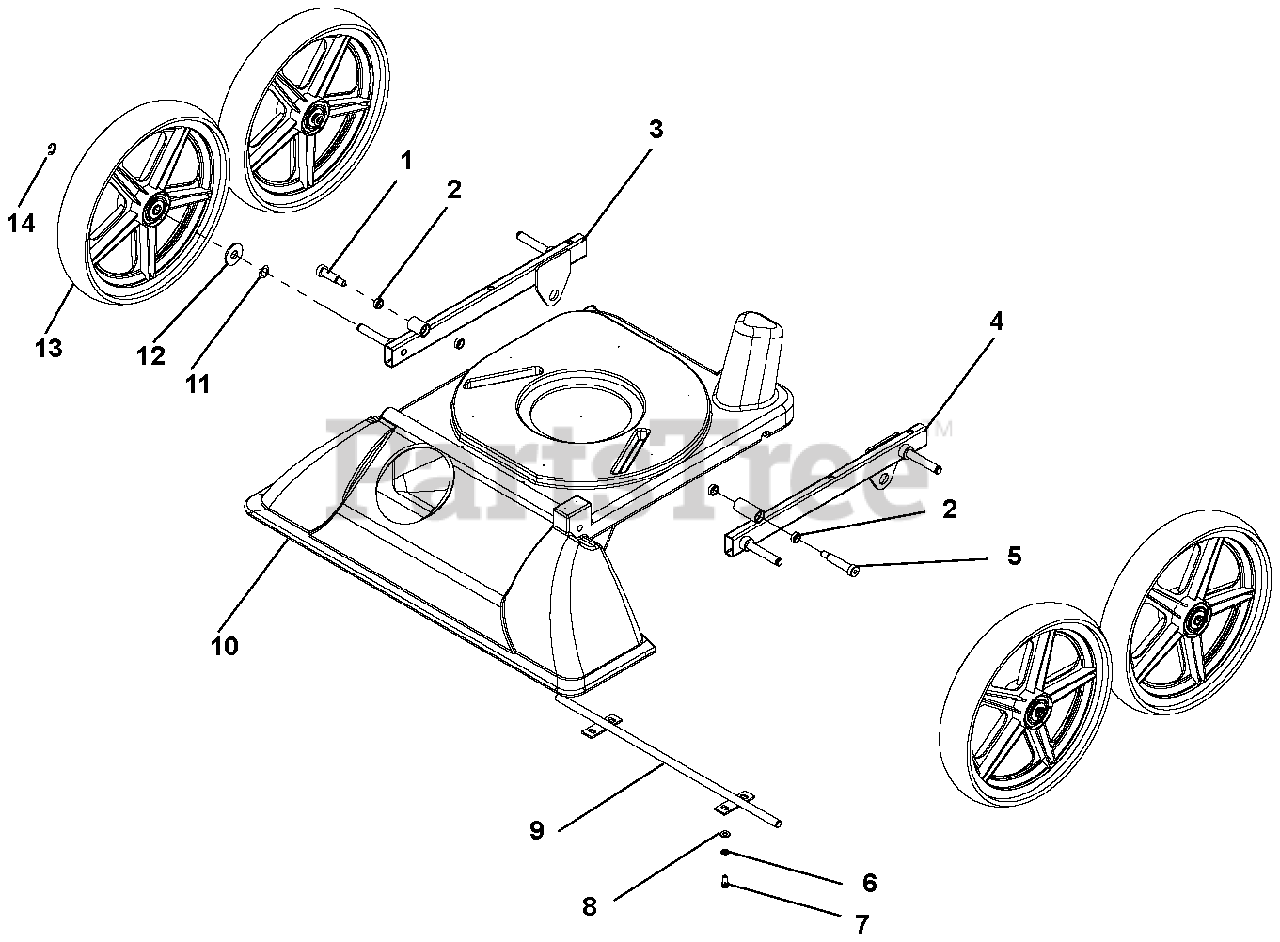

Wheel Assembly Parts Diagram

  • Title
1

Gravely 07070121

Bolt, Shoulder .5 x 1.25 x .38-16

$5.99

$

Usually ships in 4-12 days

0

2

Gravely P361103

Oilite Sleeve AA-618-16

$3.99

$

Usually ships in 4-12 days

0

3

Gravely P410076

APV Side Rail Weldment Assembly, Right

$146.99

$

Usually ships in 4-12 days

0

4

Gravely P410071

APV Side Rail Weldment Assembly, Left

$146.99

$

Usually ships in 4-12 days

0

5

Gravely 07070127

Bolt, Shoulder .5 x 2.0 x .38-16

$5.99

$

Usually ships in 4-12 days

0

6

Gravely 06308400

Washer, Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

7

Gravely 05900338

Bolt, Hex .25-20 x .63
(Superseded to 05901722)

$1.99

$

Usually ships in 4-12 days

0

8

Gravely 06437300

Washer, Flat, Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 17

0

9

Gravely P410077

APV Bar, Body Adjustment

$77.99

$

Usually ships in 4-12 days

0

10

Gravely P410001R

APV Main Housing, w/Hose, '07 Red

$

$

Not available

11

Gravely P711524

Washer, Wave .52 x .87 x .01

$3.99

$

Usually ships in 4-12 days

0

12

Gravely P711510

Washer, Flat .50 x 1.37 x .10

$3.99

$

Usually ships in 4-12 days

0

13

Gravely P410051

APV Wheel, Spartech 14"

$55.99

$

In Stock, only 1 left!

0

14

Gravely 05700138

Retaining Ring, E External .50

$

$

Not available
