995030 (CL-125) - Gravely 25" Walk-Behind Reel Mower, Kohler (SN: 000101 & Above) Caster Wheel Assembly Parts Diagram

25" Walk-Behind Reel Mower, Kohler

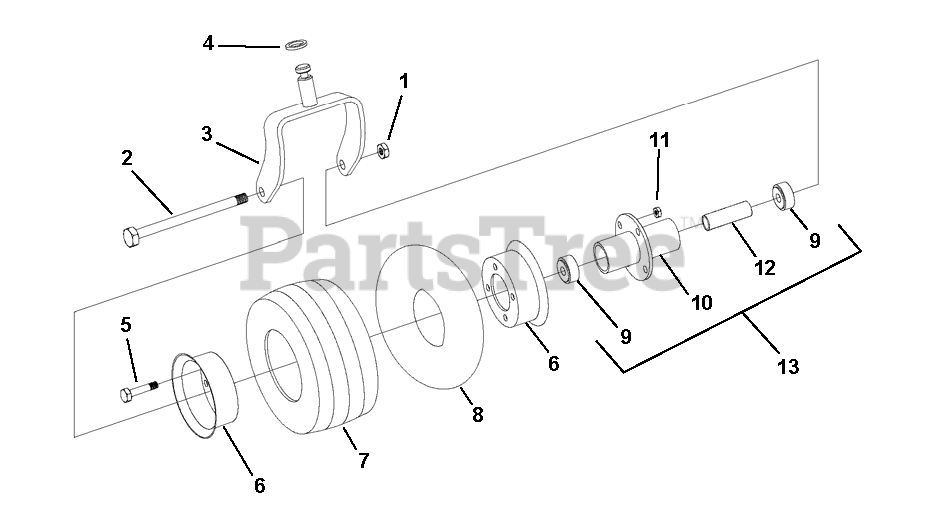

Caster Wheel Assembly Parts Diagram

  • Title

1

Gravely 02136000

NYLOCK JAM NUT 1/2-13 CP

$

$

Not available

2

Gravely 05900815

HEX HD CPSC 1/2-13 X 5-1/2

$

$

Not available

3

Gravely 02797253

FORK WELDMENT

$

$

Not available

4

Gravely 02106800

SHIM 1310

$

$

Not available

5

Gravely 05900801

HHCS 3/8-16 X 1 G5 20034
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 07100630

RIM TWO PIECE LESS BOLT 5112

$

$

Not available

7

Gravely 07100627

TIRE TURF TREAD CASTER 5058-T

$

$

Not available

8

Gravely 07100629

TUBE TIRE 5059

$

$

Not available

9

Gravely 05400238

BEARING FLANGE 1059-B

$

$

Not available

10

Gravely 07100653

HUB WELDMENT,CL

$

$

Not available

11

Gravely 06500610

HEX NUT 3/8-16 CP 8151200

$

$

Not available

12

Gravely 06400540

WHEEL HUB BEARING SPACE 500110

$

$

Not available

13

Gravely 03758000

HUB ASSEMBLY, CL WHEEL

Note: (Includes Items 9 - 12)

$

$

Not available

N/A

Gravely 03758300

TAIL WHEEL/FORK ASSEMBLY

Note: (Includes Items 1 - 3 and 5 - 12)

$

$

Not available
