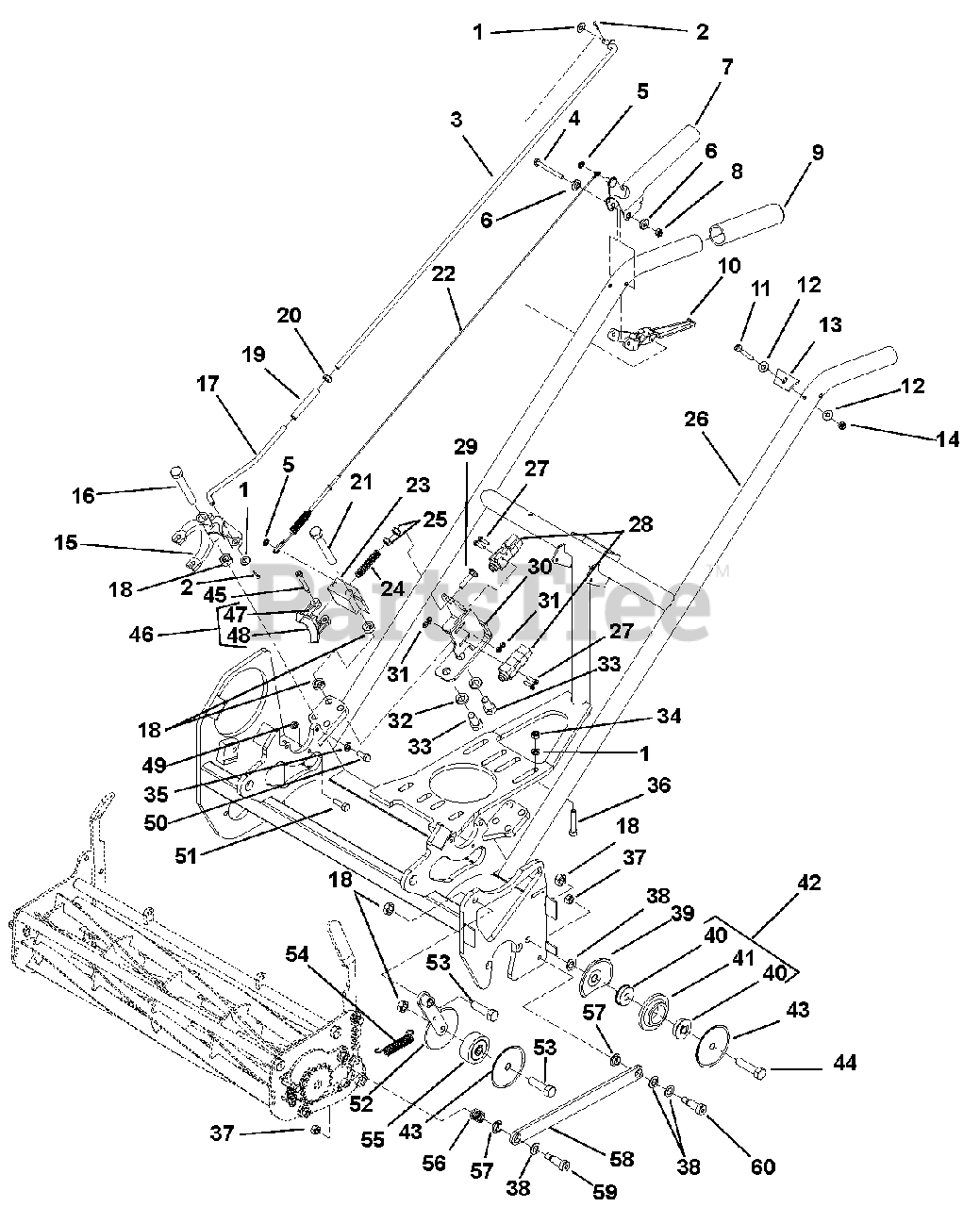

995030 (CL-125) - Gravely 25" Walk-Behind Reel Mower, Kohler (SN: 000101 & Above) Frame Assembly- Left Side View Parts Diagram

25" Walk-Behind Reel Mower, Kohler

Frame Assembly- Left Side View Parts Diagram

  • Title

1

Gravely 06400807

5/16 WASHER USS YZ 923

$

$

Not available

2

Gravely 06700109

COTTER PIN 3/32 X 5/8 1893

$

$

Not available

3

Gravely 02818900

ROD CLUTCH STRAIGHT 5098

$

$

Not available

4

Gravely 05901323

HHCS, 1/4-20 X 2-3/4

$

$

Not available

5

Gravely 05717600

RG-RTNG-EXT .250X.010

$1.49

$

In Stock, Qty 20+

0

6

Gravely 00399300

BSHG, FLG .266X.42X.150 PM

$5.99

$

In Stock, Qty 7

0

7

Gravely 00398151

PADDLE, CLUTCH - LH COMPACT

$46.99

$

In Stock, only 2 left!

0

8

Gravely 06500513

HEX NUT 1/4-20 CP NYLOCK 44566

$

$

Not available

9

Gravely 02812600

GRIP 5051

$

$

Not available

10

Gravely 02797000

CLUTCH HAND LEVER 5026

$

$

Not available

11

Gravely 02110600

PAN HD SCREW 1/4-20 X 2 1369-2

$

$

Not available

12

Gravely 06400532

FLATWASHER 1/4 ZP SAE 44567

$

$

Not available

13

Gravely 03378400

HANDLE STOP, CL

$

$

Not available

14

Gravely 06500429

HEX NUT 1/4-20 CP 15531

$

$

Not available

15

Gravely 02103451

IRON FORK

$

$

Not available

16

Gravely 02816800

HEX HD CPSC 1/2-20 X 3.5" 5076

$

$

Not available

17

Gravely 02819000

ROD ANGLE LEFT 5099

$

$

Not available

18

Gravely 02223900

JAM NUT 1/2-20 CP NF 44608

$

$

Not available

19

Gravely 02819200

COUPLER CLUTCH ROD 5101

$

$

Not available

20

Gravely 06500601

HEX NUT 5/16-24 CP 744

$

$

Not available

21

Gravely 05901213

1/2-20 x 3 HHCS 802365

$

$

Not available

22

Gravely 03764200

CL BRAKE CABLE ASSEMBLY

$

$

Not available

23

Gravely 03377551

WELDMENT,BRAKING BLOCK, RH

$

$

Not available

24

Gravely 08300314

ENGINE CL. ROD SPRING P 202437

$

$

Not available

25

Gravely 06500428

HEX NUT 5/16-18 YZ 15528

$

$

Not available

26

Gravely 04330353

FRAME WELDMENT, CL12

Note: (995030, 032)

$

$

Not available

Gravely 04330453

FRAME WELDMENT,CL130 (PAINT)

Note: (995033, 035)

$

$

Not available

27

Gravely 06100126

PAN HEAD PHILLIPS 10-24 X .75

$

$

Not available

28

Gravely 01668500

SWITCH-REEL CONTROL 07325

$

$

Not available

29

Gravely 06200022

CARRIAGE BOLT 5/16-18 x 1-1/2"

$

$

Not available

30

Gravely 03377851

WELDMENT,BRAKING,RH

$

$

Not available

31

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 06300028

LOCKWASHER 1/2 CP PG 1/2 15806

$4.99

$

Usually ships in 4-12 days

0

33

Gravely 05900717

HEX HD CPSC 1/2-20 X 1 G5 1732

$

$

Not available

34

Gravely 06500512

HEX NUT 5/16-18 CP NYLOC 44553
(Superseded to 06500820)

$1.99

$

In Stock, Qty 5

0

35

Gravely 06400522

5/16 LOCK WASHER YZP 3269

$

$

Not available

36

Gravely 06200101

CARR BOLT 5/16-18 X 1- 5141016

$

$

Not available

37

Gravely 02091800

JAM NUT 3/8-16 10151200

$

$

Not available

38

Gravely 06400402

WASHER 3/4OD X 1/2ID .055 SHIM

$

$

Not available

39

Gravely 02389053

INNER CHAIN GUIDE (CUPPED)

Note: (Cupped)

$

$

Not available

40

Gravely 05400238

BEARING FLANGE 1059-B

$

$

Not available

41

Gravely 02094500

CHAIN IDLER SHELL 1059SH

$

$

Not available

42

Gravely 02094400

CHAIN IDLER ASSEMBLY 1059-A

Note: (Includes Items 40 and 41)

$

$

Not available

43

Gravely 02819853

DISC, CHAIN GUIDE

$

$

Not available

44

Gravely 05900639

HEX HD CPSC 1/2-20 X 2 G 15025

$

$

Not available

45

Gravely 02101700

PIN 1169

$

$

Not available

46

Gravely 02101500

BRAKE ASSY 1166-7

Note: (Includes Items 47 and 48)

$

$

Not available

47

Gravely 02101400

BRAKE SHOE 1166

$

$

Not available

48

Gravely 02101600

LINING BRAKE SHOE 1167

$

$

Not available

49

Gravely 02221000

JAM NUT 5/16-18CP 44516

$

$

Not available

50

Gravely 05900620

HHCS 5/16 X 3/4 G5 ZP 1161006

$

$

Not available

51

Gravely 05900621

HHCS 5/16-18 X 1 G5 ZP 1161010

$

$

Not available

52

Gravely 02383353

IDLER BRACKET WELDMENT

$

$

Not available

53

Gravely 02818000

HHCS 1/2-20 X 1.75 FULL THD

$

$

Not available

54

Gravely 02100300

SPRING: IDLER HIGH TENSIO 1131

$

$

Not available

55

Gravely 02094600

IDLER 1060

$

$

Not available

56

Gravely 02815600

SPRING REEL 5067

$

$

Not available

57

Gravely 05500733

BUSHING 5046

$10.99

$

Usually ships in 4-12 days

0

58

Gravely 02799053

ARM, REEL LINK

$

$

Not available

59

Gravely 02799300

1/2X3/4X3/8-16 SHOULDER SCREW

$

$

Not available

60

Gravely 05901019

SHOULDER SCR 1/2 DIA 3/8 X 1

$

$

Not available

61

Gravely 02117700

SPROCKET 10T KOHLER E 1563-1K

$

$

Not available

62

Gravely 06400539

SPROCKET SPACER KOHLER 500099

$

$

Not available

63

Gravely 06400512

FLATWASHER 1"X.389IDX.089 2100

$

$

Not available

64

Gravely 05901215

HEX HD CPSC 8MM-1.25 X 20MM

$

$

Not available

65

Gravely 02227400

SPROCKET 40B17 X 3/4IN 500036

$

$

Not available
