995030 (CL-125) - Gravely 25" Walk-Behind Reel Mower, Kohler (SN: 000101 & Above) Frame Assembly- Right Side View Parts Diagram

25" Walk-Behind Reel Mower, Kohler

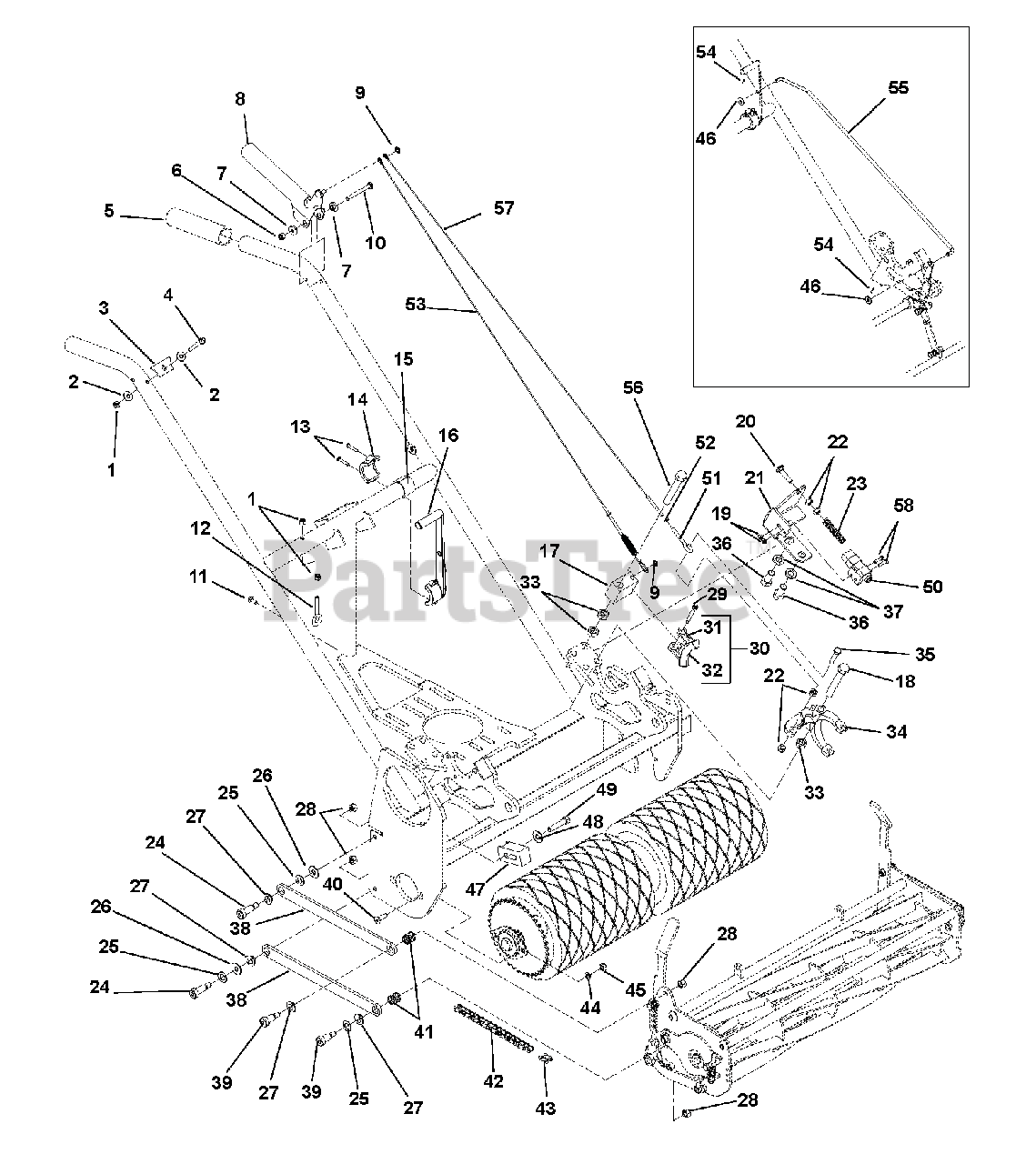

Frame Assembly- Right Side View Parts Diagram

  • Title

?1

Gravely 06500429

HEX NUT 1/4-20 CP 15531

$

$

Not available

2

Gravely 06400532

FLATWASHER 1/4 ZP SAE 44567

$

$

Not available

3

Gravely 03378453

HANDLE STOP, CL

$

$

Not available

4

Gravely 02110600

PAN HD SCREW 1/4-20 X 2 1369-2

$

$

Not available

5

Gravely 02812600

GRIP 5051

$

$

Not available

6

Gravely 06500513

HEX NUT 1/4-20 CP NYLOCK 44566

$

$

Not available

7

Gravely 00399300

BSHG, FLG .266X.42X.150 PM

$5.99

$

In Stock, Qty 7

0

8

Gravely 00398351

PADDLE, CLUTCH - RH COMPACT

$27.99

$

In Stock, only 2 left!

0

9

Gravely 05717600

RG-RTNG-EXT .250X.010

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05900918

HEX HD CPSC 1/4-20X2-1/2 44000

$

$

Not available

11

Gravely 05901133

SCREW CASTER PIN 5096

$

$

Not available

12

Gravely 07000725

EYEBOLT, I-EDGE 07917

$

$

Not available

13

Gravely 06100126

PAN HEAD PHILLIPS 10-24 X .75

$

$

Not available

14

Gravely 02139653

HAND LEVER CAP

$

$

Not available

15

Gravely 05500516

LEVER BUSHING 1866

$

$

Not available

16

Gravely 02815153

REEL LIFT HANDLE

$

$

Not available

17

Gravely 03373551

WELDMENT,BRAKING BLOCK, LH

$

$

Not available

18

Gravely 02816800

HEX HD CPSC 1/2-20 X 3.5" 5076

$

$

Not available

19

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06200022

CARRIAGE BOLT 5/16-18 x 1-1/2"

$

$

Not available

21

Gravely 03373751

BRAKING RETAINER, LH

$

$

Not available

22

Gravely 06500428

HEX NUT 5/16-18 YZ 15528

$

$

Not available

23

Gravely 08300314

ENGINE CL. ROD SPRING P 202437

$

$

Not available

24

Gravely 05901019

SHOULDER SCR 1/2 DIA 3/8 X 1

$

$

Not available

25

Gravely 06400402

WASHER 3/4OD X 1/2ID .055 SHIM

$

$

Not available

26

Gravely 06400739

WASHER 778

$

$

Not available

27

Gravely 05500733

BUSHING 5046

$10.99

$

Usually ships in 4-12 days

0

28

Gravely 02091800

JAM NUT 3/8-16 10151200

$

$

Not available

29

Gravely 02101700

PIN 1169

$

$

Not available

30

Gravely 02101500

BRAKE ASSY 1166-7

Note: (Includes Items 31 & 32)

$

$

Not available

31

Gravely 02101400

BRAKE SHOE 1166

$

$

Not available

32

Gravely 02101600

LINING BRAKE SHOE 1167

$

$

Not available

33

Gravely 02223900

JAM NUT 1/2-20 CP NF 44608

$

$

Not available

34

Gravely 02103451

IRON FORK

$

$

Not available

35

Gravely 05900738

HHCS 5/16-18 X 1-1/2 20011

$

$

Not available

36

Gravely 05900717

HEX HD CPSC 1/2-20 X 1 G5 1732

$

$

Not available

37

Gravely 06300028

LOCKWASHER 1/2 CP PG 1/2 15806

$4.99

$

Usually ships in 4-12 days

0

38

Gravely 02799053

ARM, REEL LINK

$

$

Not available

39

Gravely 02799300

1/2X3/4X3/8-16 SHOULDER SCREW

$

$

Not available

40

Gravely 05901132

SCREW 5081

$

$

Not available

41

Gravely 02815600

SPRING REEL 5067

$

$

Not available

42

Gravely 03760700

CHAIN,TRACTION DRIVE(31"#423)

Note: (31" #423)

$

$

Not available

43

Gravely 02268800

MASTER LINK #43 50019288

$

$

Not available

44

Gravely 06400522

5/16 LOCK WASHER YZP 3269

$

$

Not available

45

Gravely 06500428

HEX NUT 5/16-18 YZ 15528

$

$

Not available

46

Gravely 06400509

FLATWASHER 5/16 HARD SAE YZ
(Superseded to 06401017)

$1.49

$

In Stock, Qty 20+

0

47

Gravely 02793900

ADJUSTER CHAIN 5012

$

$

Not available

48

Gravely 06400421

FLATWASHER 3/8 USS ZP 15915

$

$

Not available

49

Gravely 05900931

HEX HD CPSC 3/8-16 X 1-3/4

$

$

Not available

50

Gravely 01668500

SWITCH-REEL CONTROL 07325

$

$

Not available

51

Gravely 07001520

EYE BOLT 3/16 10-24 X 3"

$

$

Not available

52

Gravely 01277500

NUT-HEX 10-24 E-NI

$

$

Not available

53

Gravely 03764200

CL BRAKE CABLE ASSEMBLY

$

$

Not available

54

Gravely 06700109

COTTER PIN 3/32 X 5/8 1893

$

$

Not available

55

Gravely 02813900

MOWER LIFT ROD 29IN LONG 5057

$

$

Not available

56

Gravely 05901213

1/2-20 x 3 HHCS 802365

$

$

Not available

57

Gravely 03764400

CL REEL CLUTCH CABLE ASSEMBLY

$

$

Not available

58

Gravely 061001262

Screw, Pan Head Phillips 10-20 x .75

$

$

Not available
