995030 (CL-125) - Gravely 25" Walk-Behind Reel Mower, Kohler (SN: 000101 & Above) Front Roller Assembly Parts Diagram

25" Walk-Behind Reel Mower, Kohler

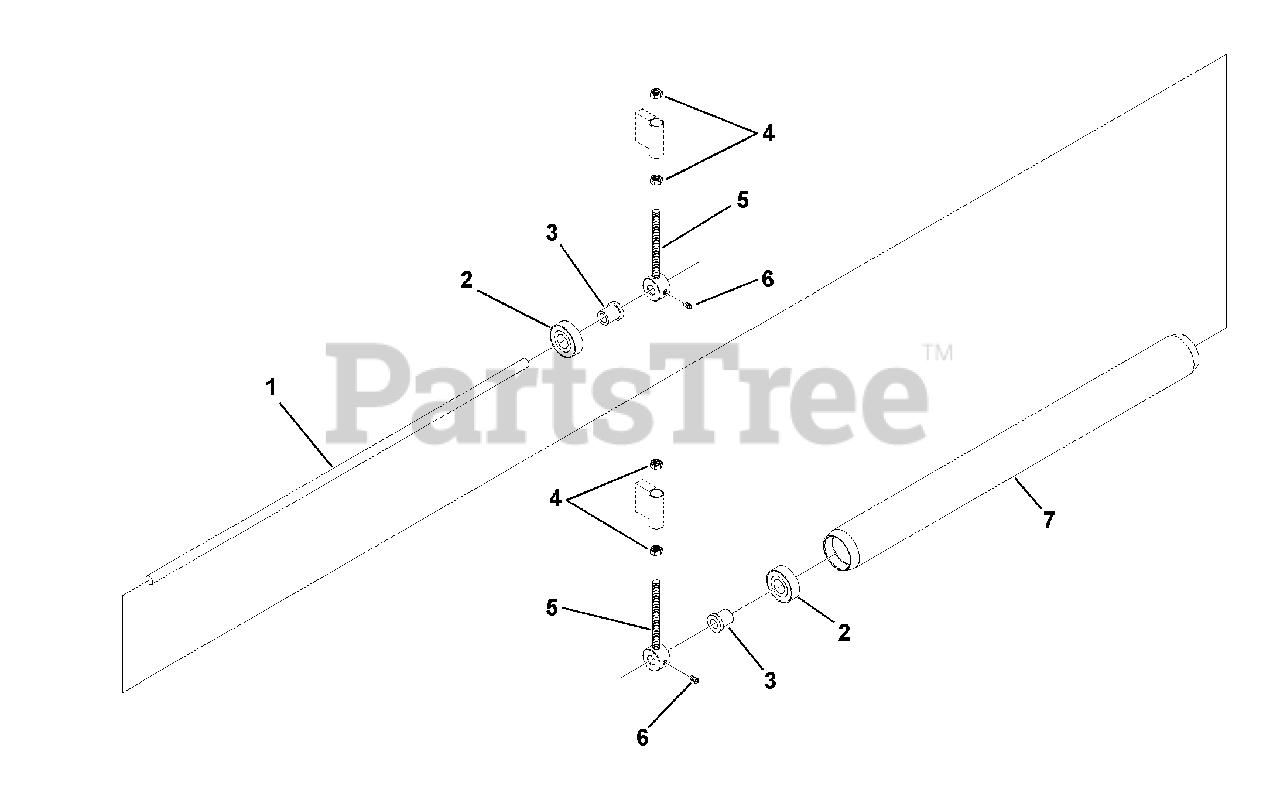

Front Roller Assembly Parts Diagram

  • Title

1

Gravely 02793500

FRONT ROLLER SHAFT CL- 5011-25

Note: (995030, 032)

$

$

Not available

Gravely 02793600

FRONT ROLLER SHAFT CL- 5011-30

Note: (995033, 035)

$

$

Not available

2

Gravely 05400515

BEARING 47MM X 20MM 50026271

$

$

Not available

3

Gravely 05500730

BUSHING 5032

$

$

Not available

4

Gravely 02116100

JAM NUT 1/2 -13 CP 15519

$

$

Not available

5

Gravely 02820551

FRONT ROLLER ADJUSTER WELDMENT

$

$

Not available

6

Gravely 06000123

SETSCR SQ HD CUP PT 1/4-20X1/2

$

$

Not available

7

Gravely 02819400

ROLLER TUBE 25 in 5104-25

Note: (995030, 032)

$

$

Not available

Gravely 02819500

ROLLER;TUBE 30IN 5104-30

Note: (995033, 035)

$

$

Not available
