995030 (CL-125) - Gravely 25" Walk-Behind Reel Mower, Kohler (SN: 000101 & Above) Reel Lift Shaft Assembly 25 Mowers Parts Diagram

25" Walk-Behind Reel Mower, Kohler

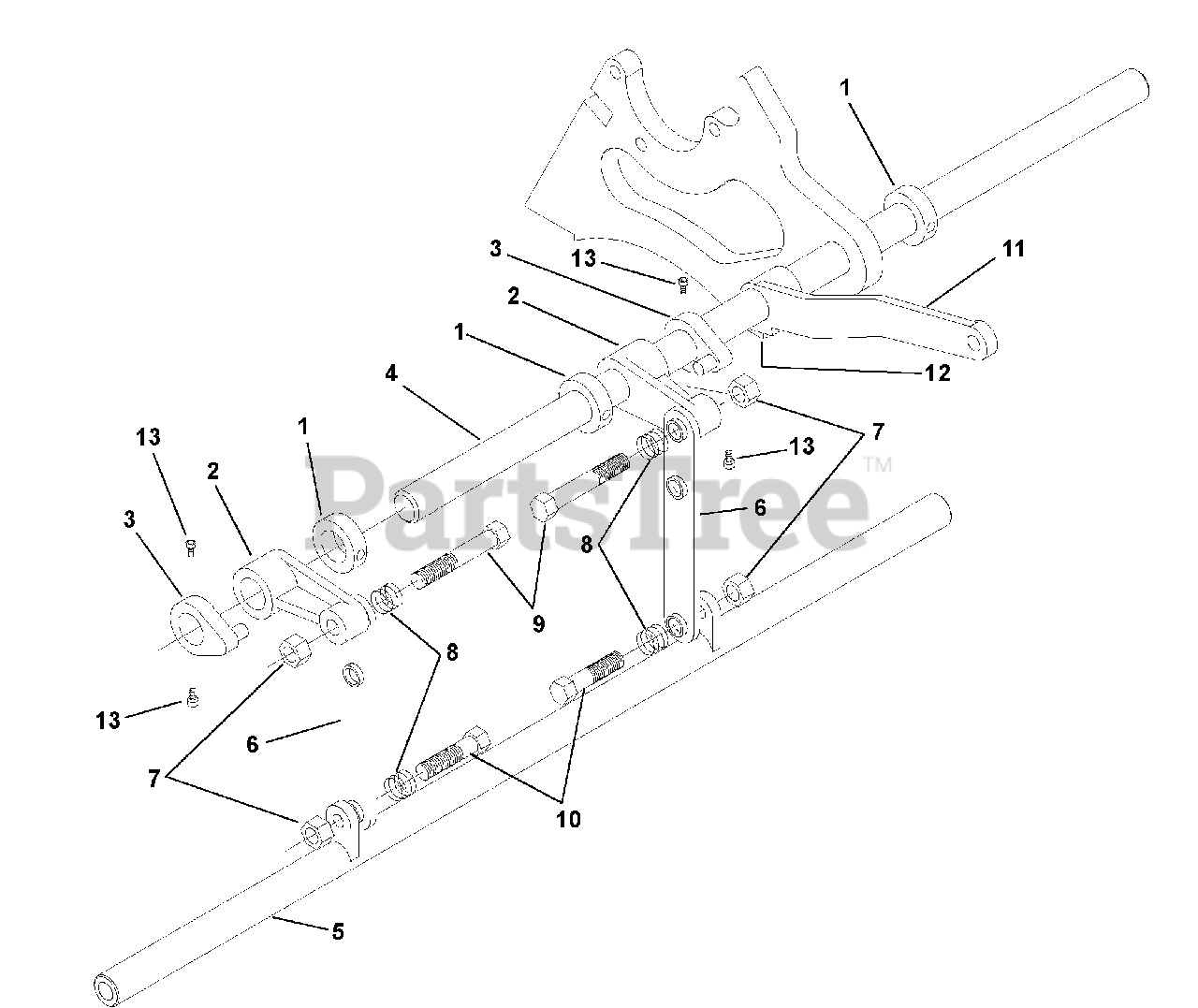

Reel Lift Shaft Assembly 25 Mowers Parts Diagram

  • Title

1

Gravely 02166600

COLLAR 3270-1

$

$

Not available

2

Gravely 02815353

ARM, REEL LIFT

$

$

Not available

3

Gravely 02814753

LIFT COLLAR

$

$

Not available

4

Gravely 02814100

SHAFT LIFT 25 in 5060-25

$

$

Not available

5

Gravely 06472851

SPACER BAR REAR CL125

$

$

Not available

6

Gravely 02889900

LINK,CUTTER CARRYING

$

$

Not available

7

Gravely 06500610

HEX NUT 3/8-16 CP 8151200

$

$

Not available

8

Gravely 08300423

SPRING 729

$

$

Not available

9

Gravely 05900931

HEX HD CPSC 3/8-16 X 1-3/4

$

$

Not available

10

Gravely 05900824

HEX HD CPSC 3/8-16 X 1-1/2

$

$

Not available

11

Gravely 02815853

LEVER, REEL LIFT

$

$

Not available

12

Gravely 05900735

SOC SET SCREW 5/16-24 19541002

$

$

Not available

13

Gravely 06000114

SETSCR HEX SOC HD 1/4-20 X 3/8

$

$

Not available
