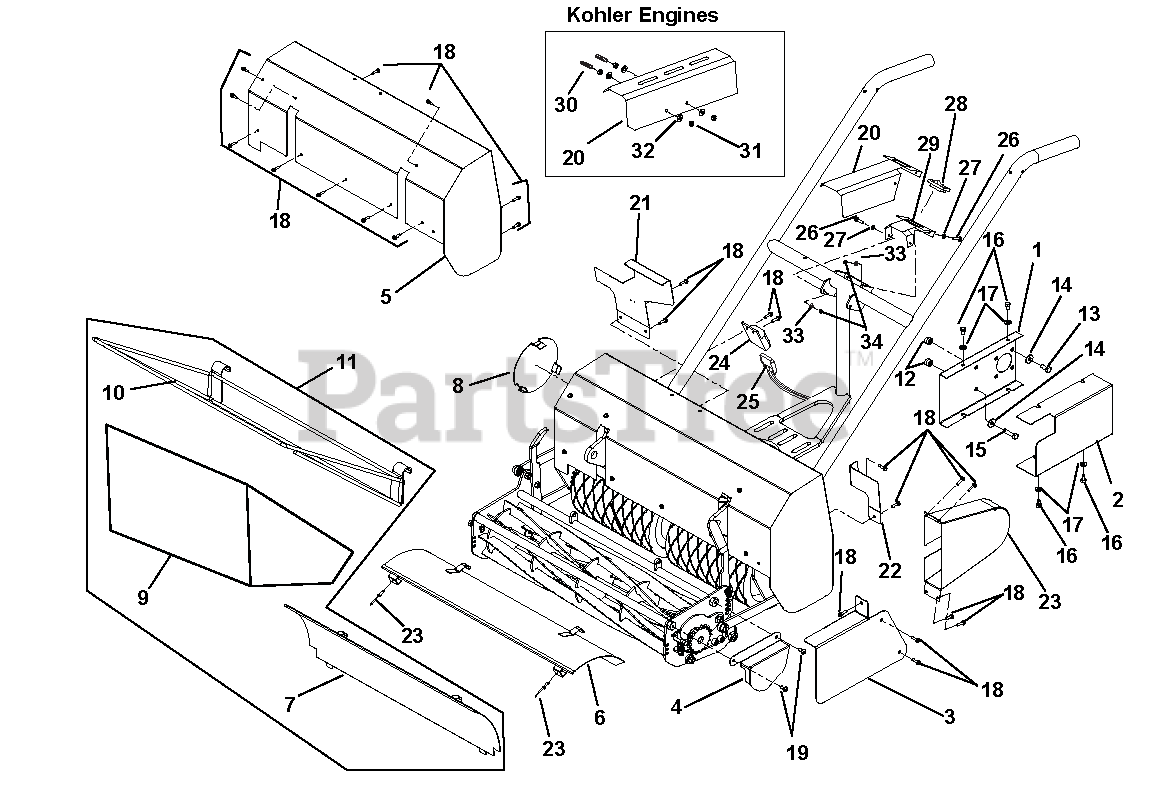

995030 (CL-125) - Gravely 25" Walk-Behind Reel Mower, Kohler (SN: 000101 & Above) Shields, Grass Catcher and wiring Parts Diagram

25" Walk-Behind Reel Mower, Kohler

Shields, Grass Catcher and wiring Parts Diagram

  • Title

1

Gravely 02976853

INNER CHAIN GUARD WLDMT-KOHLER

$

$

Not available

2

Gravely 02976953

OUTER CHAIN GUARD WELD CL130 K

Note: (995030, 033)

$

$

Not available

Gravely 03383753

OUTER GUARD WLDMT,CL25 KOHLER

Note: (995030, 033)

$

$

Not available

3

Gravely 02977553

SAFETY CHAIN GUARD

$34.99

$

Usually ships in 4-12 days

0

4

Gravely 02813753

GUARD, REEL CHAIN

$84.99

$

Usually ships in 4-12 days

0

5

Gravely 03255153

MAIN GUARD,CL-125

Note: (995030, 032)

$

$

Not available

Gravely 03255253

MAIN GUARD CL-130

Note: (995033, 035)

$

$

Not available

6

Gravely 02813153

GUARD, REEL CL 125 STANDARD

Note: (995030, 032)

$

$

Not available

Gravely 02813353

GUARD,REEL CL 130 STANDARD

Note: (995033, 035)

$

$

Not available

7

Gravely 02817762

GRASS DEFLECTOR FRONT THROW 25

Note: (995030, 032)

$

$

Not available

Gravely 02817862

GRASS DEFLECTOR FRONT THROW 30

Note: (995033, 035)

$

$

Not available

8

Gravely 02231053

CLUTCH ACCESS COVER

$

$

Not available

9

Gravely 02822300

125 GRASS BAG ONLY 5202-25

Note: (995030, 032)

$

$

Not available

Gravely 02822400

130 GRASS BAG ONLY 5202-30

Note: (995033, 035)

$

$

Not available

10

Gravely 02232553

GRASS CATCHER FRAME CL-125

Note: (995030, 032)

$

$

Not available

Gravely 02232653

GRASS CATCHER FRAME CL-130

Note: (995033, 035)

$

$

Not available

11

Gravely 79501300

KIT, CL-125 GRASS CATCHER

Note: (Includes 7, 9 and 10) (995030, 032

$

$

Not available

Gravely 79502700

KIT, CL-130 GRASS CATCHER

Note: (Includes 7, 9 and 10) (995033, 035

$

$

Not available

12

Gravely 02234500

KHOLER GUARD SPACER; SH 500165

Note: (995030, 033)

$

$

Not available

13

Gravely 05901215

HEX HD CPSC 8MM-1.25 X 20MM

$

$

Not available

14

Gravely 06400509

FLATWASHER 5/16 HARD SAE YZ
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 02072200

HEX HD CPSC M8-1.25 X 35MM 8.8

$

$

Not available

16

Gravely 05900736

HEX HD CPSC 1/4-20 X 1/2 20009

$

$

Not available

17

Gravely 06400423

FLATWASHER 1/4 ZP D STD 15918

$

$

Not available

18

Gravely 06100205

SCREW, #10-16X1/2,HEX SELFDRIL

$

$

Not available

19

Gravely 05901133

SCREW CASTER PIN 5096

$

$

Not available

20

Gravely 03377951

MUFFLER SHEILD, KOHLER CL

Note: (995030, 033)

$

$

Not available

21

Gravely 03377053

REAR SHIELD,RH CL125

Note: (995030, 032)

$

$

Not available

Gravely 03377253

REAR SHIELD,RH CL130

Note: (995033, 035)

$

$

Not available

22

Gravely 03376953

REAR SHIELD,LH CL125 W/KOHLER

Note: (995030, 032)

$

$

Not available

Gravely 03377153

REAR SHIELD,LH CL130

Note: (995033, 035)

$

$

Not available

23

Gravely 02953900

BLIND RIVET 1/8"X 1/4"STEEL

$

$

Not available

24

Gravely 08885700

MODULE,INTERLOCK,RECOIL, 1201

$89.99

$

In Stock, only 4 left!

0

25

Gravely 03378500

HARNESS, WIRING, CL

$

$

Not available

26

Gravely 05900618

HEX HD CPSC 1/4-20 X 3/4

$

$

Not available

27

Gravely 06400423

FLATWASHER 1/4 ZP D STD 15918

$

$

Not available

28

Gravely 01676500

SWITCH, ELECTRIC CLUTCH 07496

$

$

Not available

29

Gravely 03746051

MOUNT:CL SWITCH W/KOHLER ENG

Note: (995030, 033)

$

$

Not available

30

Gravely 06000037

SETSCR HEX SOC HD 1/4-28X1-1/4

Note: (995030, 033)

$

$

Not available

31

Gravely 06500528

HEX NUT 1/4-28 CP 44702

Note: (995030, 033)

$

$

Not available

32

Gravely 06400825

FLATWASHER 1/4 SAE HRD YZ

Note: (995030, 033)

$

$

Not available

33

Gravely 06300034

LOCKWASHER 1/4 CP PG 1/4 15905

$

$

Not available

34

Gravely 06500429

HEX NUT 1/4-20 CP 15531

$

$

Not available
