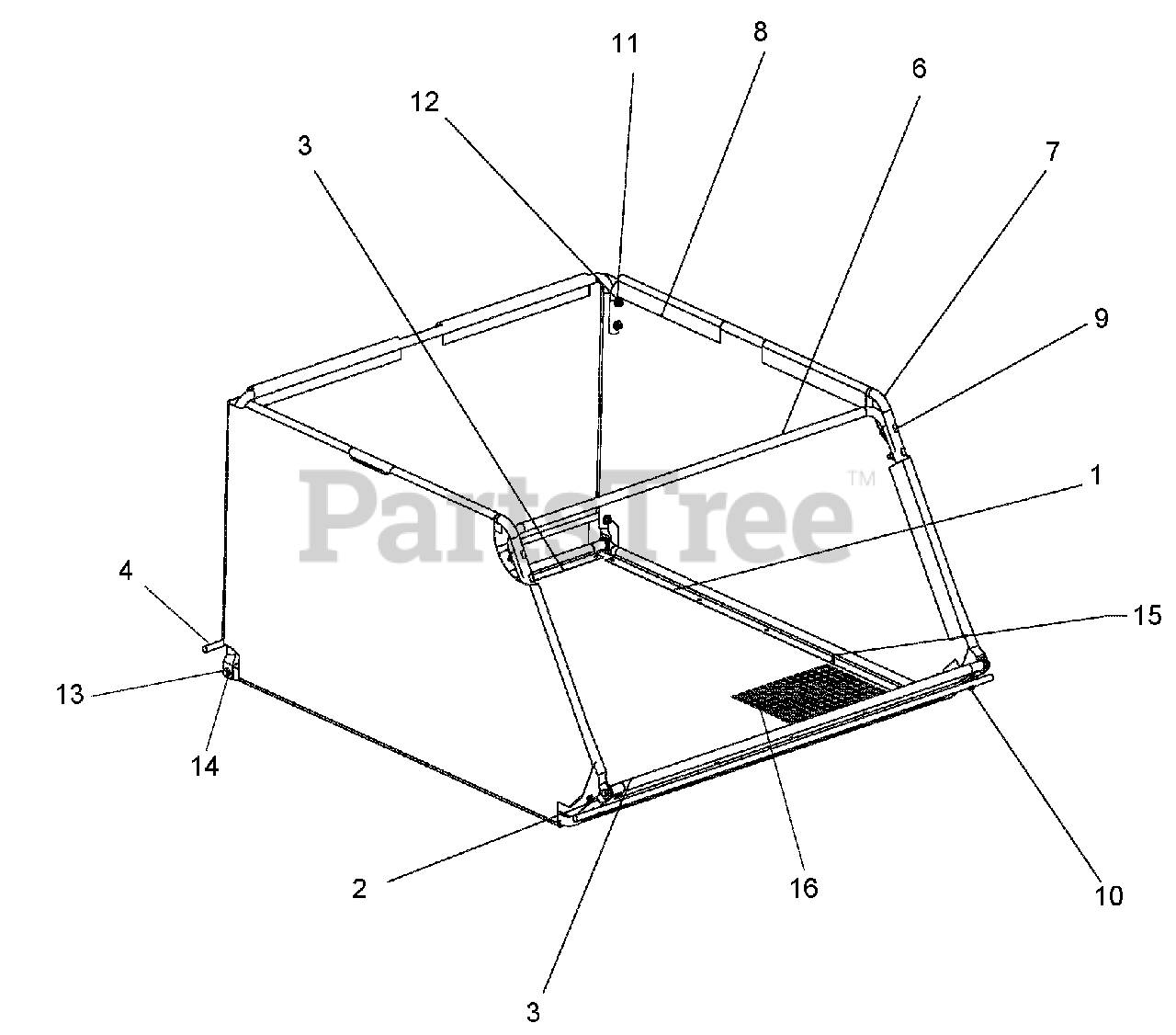

995031 - Gravely Tow-Behind 36" Trailing Lawn Sweeper Mesh Bottom (SN: 000101 & Above) Basket Assembly Parts Diagram

Tow-Behind 36" Trailing Lawn Sweeper Mesh Bottom

Basket Assembly Parts Diagram

  • Title

1

Gravely PSA-1590-C

Basket Clamp Assembly

$

$

Not available

2

Gravely PSA-1591-C

Basket Clamp Assembly

$

$

Not available

3

Gravely PSA-1427-B

Basket Clamp Assembly

$90.99

$

Usually ships in 4-12 days

0

4

Gravely P86-105-B

Support Rod

$

$

Not available

5

Gravely P82-86-B

Rear Upright

$

$

Not available

6

Gravely P82-87-B

Front Upright

$

$

Not available

7

Gravely P80-137-B

Frame Basket Side Top

$

$

Not available

8

Gravely 04288100

Basket Assembly

$

$

Not available

9

Gravely P69-416-32

Bolt, 1/4-20 x 2.0 Contour Hd.

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 05952500

Bolt, Hex .25-20X1.50
(Superseded to 05901739)

$1.49

$

In Stock, Qty 8

0

11

Gravely 06435800

Washer, Flat Steel .312X.734X.065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 10

0

12

Gravely 06533200

Nut, Hex, 1/4-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 7

0

13

Gravely 06308600

Lockwasher .31X.078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 05946900

Bolt, Hex .31-18X1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

15

Gravely P92-28

Rivet, Bulb Tite

$

$

Not available

16

Gravely P360900

Basket Bottom, Mesh

$

$

Not available

17

Gravely P89-57-C

Basket Bottom, Solid

$

$

Not available

18

Gravely 04295900

Wind Apron (Not Shown)

Note: (Not Shown)

$101.99

$

Usually ships in 4-12 days

0
