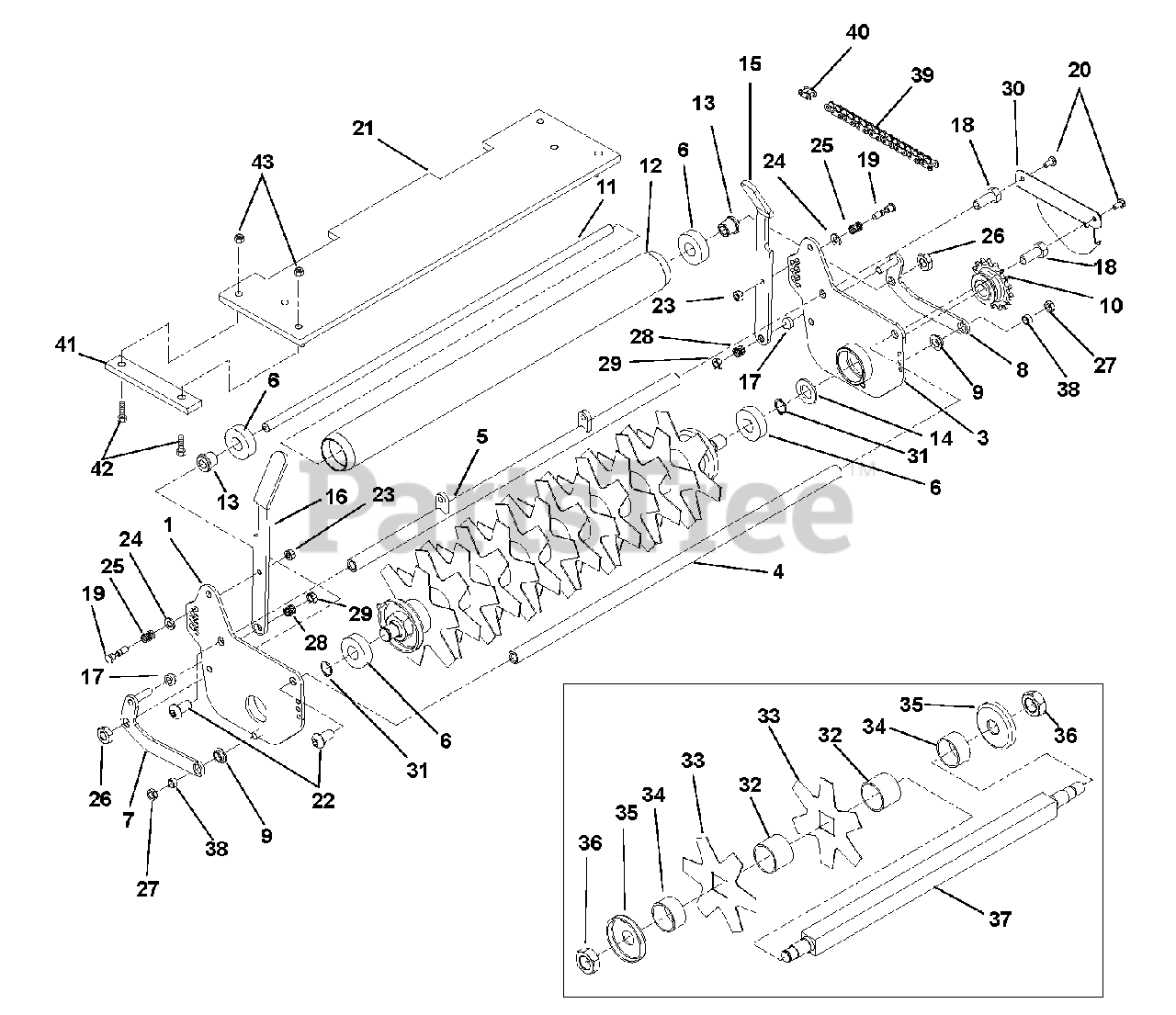

995032 (CL-125) - Gravely 25" Walk-Behind Reel Mower, Honda (SN: 000101 & Above) Verticutter Head Assembly Parts Diagram

25" Walk-Behind Reel Mower, Honda

Verticutter Head Assembly Parts Diagram

  • Title

1

Gravely 02228800

SHAFT ASSM.CL125 14 BL 500096

Note: (995030, 032)

$

$

Not available

Gravely 02096500

V-CUT SHAFT ASSY. CL-13 111006

Note: (995033, 035)

$

$

Not available

2

Gravely 02096300

END PLATE WELD. RH LOCK 111002

$

$

Not available

3

Gravely 02096200

END PLATE WELD. LH LOCK 111001

$

$

Not available

4

Gravely 06400725

SPACER BAR 25 in 5033-25

Note: (995030, 032)

$

$

Not available

Gravely 02797500

SPACE BAR 30 in 5033-30

Note: (995033, 035)

$

$

Not available

5

Gravely 06400728

SPACER BAR 25 in REAR 5106-25

Note: (995030, 032)

$

$

Not available

Gravely 06400729

SPACER BAR 30 in REAR 5106-30

Note: (995033, 035)

$

$

Not available

6

Gravely 05400515

BEARING 47MM X 20MM 50026271

$

$

Not available

7

Gravely 02796200

REAR ROLLER HEIGHT ARM 5021R

$

$

Not available

8

Gravely 02796100

REAR ROLLER HEIGHT ARM 5021L

$

$

Not available

9

Gravely 05500733

BUSHING 5046

$10.99

$

Usually ships in 4-12 days

0

10

Gravely 02105300

SPROCKET 17T 1238

$

$

Not available

11

Gravely 02797900

AXLE ROLLER 25 in 5036-25

Note: (995030, 032)

$

$

Not available

Gravely 02798000

AXLE ROLLER 30 in 5036-30

Note: (995033, 035)

$

$

Not available

12

Gravely 02819400

ROLLER TUBE 25 in 5104-25

Note: (995030, 032)

$

$

Not available

Gravely 02819500

ROLLER;TUBE 30IN 5104-30

Note: (995033, 035)

$

$

Not available

13

Gravely 05500730

BUSHING 5032

$

$

Not available

14

Gravely 02106800

SHIM 1310

$

$

Not available

15

Gravely 02797600

HANDLE QA LH 5034L

$

$

Not available

16

Gravely 02797700

HANDLE QA RH 5034R

$

$

Not available

17

Gravely 05500731

BUSHING 60 DEGREE 5037

$

$

Not available

18

Gravely 02821000

SP. HHCS 1/2-13 X 1-1/4 ( 5114

Note: (Hole)

$

$

Not available

19

Gravely 79503800

RLRS,9BLD GRV FRT SMTH REAR 3-

$

$

Not available

20

Gravely 05901133

SCREW CASTER PIN 5096

$

$

Not available

21

Gravely 02099000

CL 125 VERTICUTTER TOP SHIELD

$

$

Not available

22

Gravely 02799200

BUTTON HD 1/2-13 X 1 ZP 5047

$

$

Not available

23

Gravely 06500424

HEX NUT 5/16-24 UNF YZ 15501

$

$

Not available

24

Gravely 06400727

WASHER QA BELLEVILLE 5/16 5091

$

$

Not available

25

Gravely 02815500

SPRING QA 5066

$

$

Not available

26

Gravely 02135900

NYLOCK JAM NUT 1/2-20 1780

$

$

Not available

27

Gravely 02847200

JAM NUT 3/8-24 ZP 724-J

$

$

Not available

28

Gravely 08300423

SPRING 729

$

$

Not available

29

Gravely 02817200

NUT 3/8 - 24 NYLON JAM 5084

$

$

Not available

30

Gravely 02813700

REEL CHAIN GUARD 5055-1

$

$

Not available

31

Gravely 05700117

SNAP RING 3/4 EXTERNAL 80437

$

$

Not available

32

Gravely 02228900

BLADE SPACER 1.50 X 2 500097

$

$

Not available

33

Gravely 02688400

VERTI-CUT BLADE 6.5 50037631

$

$

Not available

34

Gravely 02229000

BLADE SPACER 1.00 X 2 500098

$

$

Not available

35

Gravely 06400632

SHAFT WASHER 50022381

$

$

Not available

36

Gravely 02117200

JAM NUT 1-14 NF 15614

$3.99

$

Usually ships in 4-12 days

0

37

Gravely 02228600

SHAFT LOCKE 25 VERTI-C 500094

Note: (995030, 032)

$

$

Not available

Gravely 02096400

VERTI-CUTTER SHAFT LOCK 111004

Note: (995033, 035)

$

$

Not available

38

Gravely 05500734

BUSHING 5092

$

$

Not available

39

Gravely 03760500

CHAIN,REEL DRIVE (56"#423)

Note: (56" # 423)

$

$

Not available

40

Gravely 02268800

MASTER LINK #43 50019288

$

$

Not available

41

Gravely 03764551

RETAINER,CL V-CUTT TOP SHIELD

$

$

Not available

42

Gravely 05900808

HEX HD CPSC 1/4-20 X 1-3/4

$

$

Not available

43

Gravely 06500513

HEX NUT 1/4-20 CP NYLOCK 44566

$

$

Not available
