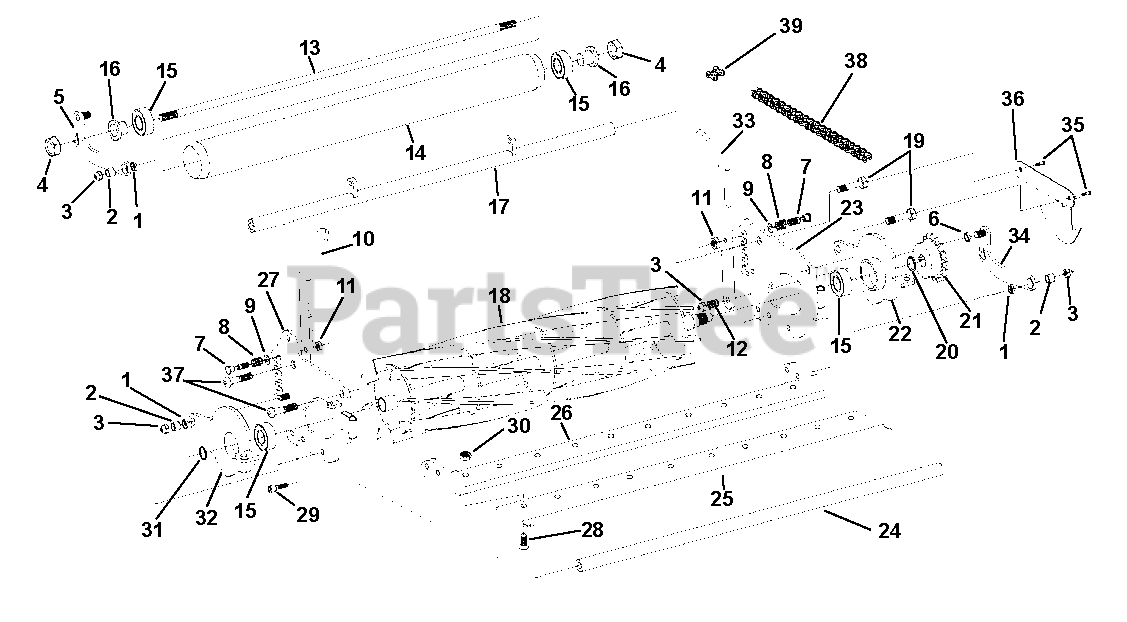

995033 (CL-130) - Gravely 30" Walk-Behind Reel Mower, Kohler (SN: 000101 & Above) Reel Assembly Parts Diagram

30" Walk-Behind Reel Mower, Kohler

Reel Assembly Parts Diagram

  • Title

1

Gravely 05500733

Bushing, Sintered Steel, Oil Impregnated

$10.99

$

Usually ships in 4-12 days

0

2

Gravely 05500734

Bushing

$

$

Not available

3

Gravely 02847400

Nut, .375-24 Nyloc Jam

$

$

Not available

4

Gravely 02817200

Nut, Jam Nyloc .50-20

$

$

Not available

5

Gravely 02796253

Arm, Rear Roller Height Right Hand

$

$

Not available

6

Gravely 05500731

Bushing, 60 Degree

$

$

Not available

7

Gravely 02798200

Pin, Quick Adjust

$

$

Not available

8

Gravely 02815500

Spring, Quick Adjust

$

$

Not available

9

Gravely 06400727

Washer, Quick Adjust

$

$

Not available

10

Gravely 02797753

Handle, Quick Adjust Right Hand

$

$

Not available

11

Gravely 06500601

Nut, Hex .312-24

$

$

Not available

12

Gravely 08300423

Spring

$

$

Not available

13

Gravely 02797900

Axle, Roller 25-Inch (995030, 032)

Note: (995030, 032)

$

$

Not available

Gravely 02798000

Axle, Roller 30-Inch (995033, 035)

Note: (995033, 035)

$

$

Not available

14

Gravely 02819400

Tube, Roller 25-Inch (995030, 032)

Note: (995030, 032)

$

$

Not available

Gravely 02819500

Tube, Roller 30-Inch (995033, 035)

Note: (995033, 035)

$

$

Not available

15

Gravely 05400515

Bearing 47 mm x 20 mm x 14 mm

$

$

Not available

16

Gravely 05500730

Bushing

$

$

Not available

17

Gravely 06472851

Bar, Rear Spacer 25-Inch (995030, 032)

Note: (995030, 032)

$

$

Not available

Gravely 06472951

Bar, Rear Spacer 30-Inch (995033, 035)

Note: (995033, 035)

$

$

Not available

18

Gravely 79518200

Reel, 25-Inch 6-Blade (995030, 032)

Note: (995030, 032)

$

$

Not available

Gravely 79518100

Reel, 25-Inch 8-Blade (995030, 032)

Note: (995030, 032)

$

$

Not available

Gravely 02643100

Reel, 30-Inch 6-Blade (995033, 035)

Note: (995033, 035)

$

$

Not available

Gravely 79518300

Reel, 30-Inch 8-Blade (995033, 035)

Note: (995033, 035)

$

$

Not available

19

Gravely 02821000

Cap Screw, Special, Hex Head .50-13 x 1.25

$

$

Not available

20

Gravely 02106800

Shim

$

$

Not available

21

Gravely 02105300

Sprocket, 17 Tooth

$

$

Not available

22

Gravely 05401653

Housing, Bearing Left Hand

$

$

Not available

23

Gravely 02794153

Side Plate, Left Hand

$

$

Not available

24

Gravely 06472551

Bar, Spacer 25-Inch (995030, 032)

Note: (995030, 032)

$

$

Not available

Gravely 02797551

Bar, Spacer 30-Inch (995033, 035)

Note: (995033, 035)

$

$

Not available

25

Gravely 02818300

Bed Knife 25-Inch (995030, 032)

Note: (995030, 032)

$

$

Not available

Gravely 02818400

Bed Knife 30-Inch (995033, 035)

Note: (995033, 035)

$

$

Not available

26

Gravely 02796751

Weldment, Bedbar 25-Inch (995030, 032)

Note: (995030, 032)

$

$

Not available

Gravely 02796851

Weldment, Bedbar 30-Inch (995033, 035)

Note: (995033, 035)

$

$

Not available

27

Gravely 02794553

Side Plate Right Hand

$

$

Not available

28

Gravely 02222600

Screw, Hex Socket Flat CSK Head .312 x 1

$

$

Not available

29

Gravely 02816500

Cap Screw, Hex Socket Head .38-16 x .625 Stainless Stee

$

$

Not available

30

Gravely 06500512

Nut, Hex Nyloc .312-18
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 05700117

Snap Ring, .75 External

$

$

Not available

32

Gravely 05400653

Housing, Bearing Right Hand

$

$

Not available

33

Gravely 02797653

Handle, Quick Adjust Left Hand

$

$

Not available

34

Gravely 02796153

Arm, Rear Roller Height Left Hand

$

$

Not available

35

Gravely 05901133

Screw, Pan Head Slotted, Stainless Steel .25-28

$

$

Not available

36

Gravely 02813753

Chain Guard, Reel

$83.16

$

In Stock, only 1 left!

0

37

Gravely 02799200

Screw, Button Head .50-13 x 1

$

$

Not available

38

Gravely 03760500

Chain, Reel Drive (56" # 423)

Note: (56" # 423)

$

$

Not available

39

Gravely 02268800

Master Link

$

$

Not available
