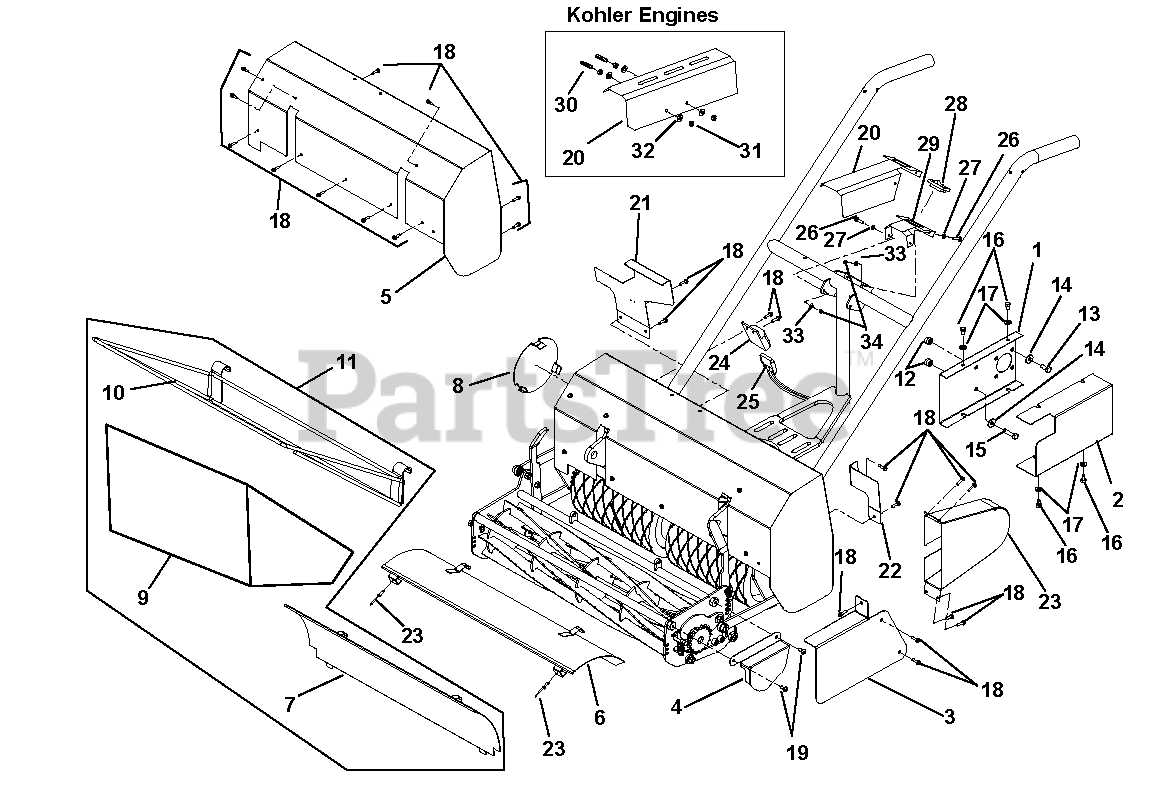

995033 (CL-130) - Gravely 30" Walk-Behind Reel Mower, Kohler (SN: 000101 & Above) Shields, Grass Catcher and wiring Parts Diagram

30" Walk-Behind Reel Mower, Kohler

Shields, Grass Catcher and wiring Parts Diagram

  • Title

1

Gravely 02976853

Inner Chain Guard

$

$

Not available

2

Gravely 02976953

Outer Chain Guard (995030, 033)

Note: (995030, 033)

$

$

Not available

03388753

Outer Chain Guard (995030, 033)

Note: (995030, 033)

$

$

Not available

3

Gravely 02977553

Chain Guard, Reel

$33.82

$

In Stock, only 1 left!

0

4

Gravely 02813753

Chain Guard, Sprocket

$83.16

$

In Stock, only 1 left!

0

5

Gravely 03255153

Guard, Main 25-Inch (995030, 032)

Note: (995030, 032)

$

$

Not available

Gravely 03255253

Guard, Main 30-Inch (995033, 035)

Note: (995033, 035)

$

$

Not available

6

Gravely 02813153

Guard, Reel 25-Inch (995030, 032)

Note: (995030, 032)

$

$

Not available

Gravely 02813353

Guard, Reel 30-Inch (995033, 035)

Note: (995033, 035)

$

$

Not available

7

Gravely 02817762

Deflector, Front Throw 25-Inch (995030, 032)

Note: (995030, 032)

$

$

Not available

Gravely 02817862

Deflector, Front Throw 30-Inch (995033, 035)

Note: (995033, 035)

$

$

Not available

8

Gravely 02231053

Cover, Clutch Access

$

$

Not available

9

Gravely 02822300

Grass Bag, 25-Inch (995030, 032)

Note: (995030, 032)

$

$

Not available

Gravely 02822400

Grass Bag, 30-Inch (995033, 035)

Note: (995033, 035)

$

$

Not available

10

Gravely 02232553

Frame, Grass Catcher 25-Inch (995030, 032)

Note: (995030, 032)

$

$

Not available

Gravely 02232653

Frame, Grass Catcher 30-Inch (995033, 035)

Note: (995033, 035)

$

$

Not available

11

Gravely 79501300

Kit, Grass Catcher 25-Inch (Includes 7, 9 and 10) (995030, 032

Note: (Includes 7, 9 and 10) (995030, 032

$

$

Not available

Gravely 79502700

Kit, Grass Catcher 30-Inch (Includes 7, 9 and 10) (995033, 035

Note: (Includes 7, 9 and 10) (995033, 035

$

$

Not available

12

Gravely 02234500

Spacer, Guard (995030, 033)

Note: (995030, 033)

$

$

Not available

13

Gravely 05901215

Cap Screw, Hex Head M8 x 1.25 x 20mm

$

$

Not available

14

Gravely 06400509

Washer, Flat .312
(Superseded to 06401017)

$0.99

$

In Stock, only 3 left!

0

15

Gravely 02072200

Cap Screw, Hex Head M8 x 1.25 x 35mm

$

$

Not available

16

Gravely 05900736

Cap Screw, Hex Head .25-20 x .50

$

$

Not available

17

Gravely 06400423

Washer, Flat .25

$2.49

$

Usually ships in 4-12 days

0

18

Gravely 06100205

Screw, Hex Self-Drilling 10-16 x .5

$

$

Not available

19

Gravely 05901133

Screw, Pan Head Slotted, Stainless Steel .25-28

$

$

Not available

20

Gravely 03377951

Guard, Muffler (995030, 033)

Note: (995030, 033)

$

$

Not available

21

Gravely 03377053

Shield, Rear Right Hand (995030, 032)

Note: (995030, 032)

$

$

Not available

Gravely 03377253

Shield, Rear Right Hand (995033, 035)

Note: (995033, 035)

$

$

Not available

22

Gravely 03376953

Shield, Rear Left Hand (995030, 032)

Note: (995030, 032)

$

$

Not available

Gravely 03377153

Shield, Rear Left Hand (995033, 035)

Note: (995033, 035)

$

$

Not available

23

Gravely 02953900

Rivet, Blind Steel .125

$

$

Not available

24

Gravely 08885700

Module, Interlock Recoil

$87.99

$

Usually ships in 4-12 days

0

25

Gravely 03378500

Harness, Wiring

$

$

Not available

26

Gravely 05900618

Cap Screw, Hex Head .25-20 x .75

$

$

Not available

27

Gravely 06400423

Washer, Flat .25

$2.49

$

Usually ships in 4-12 days

0

28

Gravely 01676500

Switch, Electric Clutch

$

$

Not available

29

Gravely 03746051

Mount, Switch (995030, 033)

Note: (995030, 033)

$

$

Not available

30

Gravely 06000037

Set Screw, Socket Head .25-20 x 1.25 (995030, 033)

Note: (995030, 033)

$

$

Not available

31

Gravely 06500528

Nut, Hex .25-28 (995030, 033)

Note: (995030, 033)

$

$

Not available

32

Gravely 06400825

Washer, Flat, SAE Hard .25 (995030, 033)

Note: (995030, 033)

$

$

Not available

33

Gravely 06300034

Washer, Lock .25

$

$

Not available

34

Gravely 06500429

Nut, Hex .25-20

$

$

Not available
