995034 - Gravely Tow-Behind 36" Trailing Lawn Sweeper Hard Bottom (SN: 000101 & Above) Basket Assembly Parts Diagram

Tow-Behind 36" Trailing Lawn Sweeper Hard Bottom

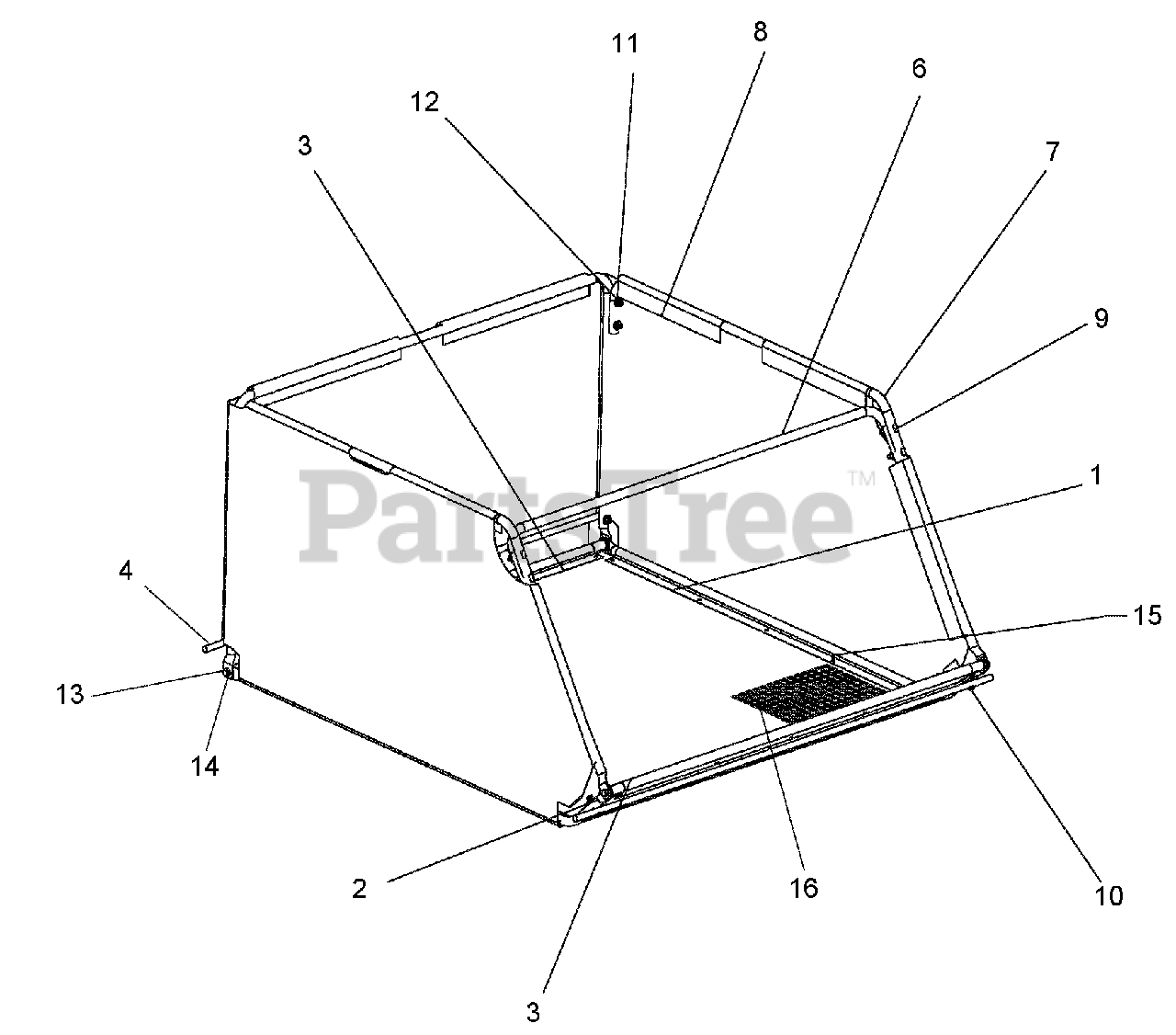

Basket Assembly Parts Diagram

  • Title

1

Gravely PSA-1590-C

SWP-BASKET CLAMP ASSY.

$

$

Not available

2

Gravely PSA-1591-C

SWP-BASKET CLAMP ASSY.

$

$

Not available

3

Gravely PSA-1427-B

SWP-BOTTOM BASKET CLAMP ASY

$

$

Not available

4

Gravely P86-105-B

SUPPORT ROD

$

$

Not available

5

Gravely P82-86-B

REAR UPRIGHT

$

$

Not available

6

Gravely P82-87-B

FRONT BSKT. BRACE

$

$

Not available

7

Gravely P80-137-B

FRAME BASKET SIDE TOP

$

$

Not available

8

Gravely 04288100

BASKET, SEWING

$

$

Not available

9

Gravely P69-416-32

BLT-CONT HEAD 1/4-20 X 2.00

$6.99

$

Usually ships in 4-12 days

0

10

Gravely 05952500

BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.99

$

In Stock, Qty 8

0

11

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

13

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

15

Gravely P92-28

BULB TITE RIVET (1PLZ7)

$

$

Not available

16

Gravely P360900

SCREEN MESH 46.313X39.125X.063

$

$

Not available

17

Gravely P89-57-C

BASKET BOTTOM

$

$

Not available

18

Gravely 04295900

WIND APRON ASSEMBLY SU

Note: (Not Shown)

$103.99

$

Usually ships in 4-12 days

0
