995036 - Gravely Estate Master Tow-Behind 100" Trailing Lawn Sweeper, Mesh (SN: 000101 & Above) Basket Assembly Parts Diagram

Estate Master Tow-Behind 100" Trailing Lawn Sweeper, Mesh

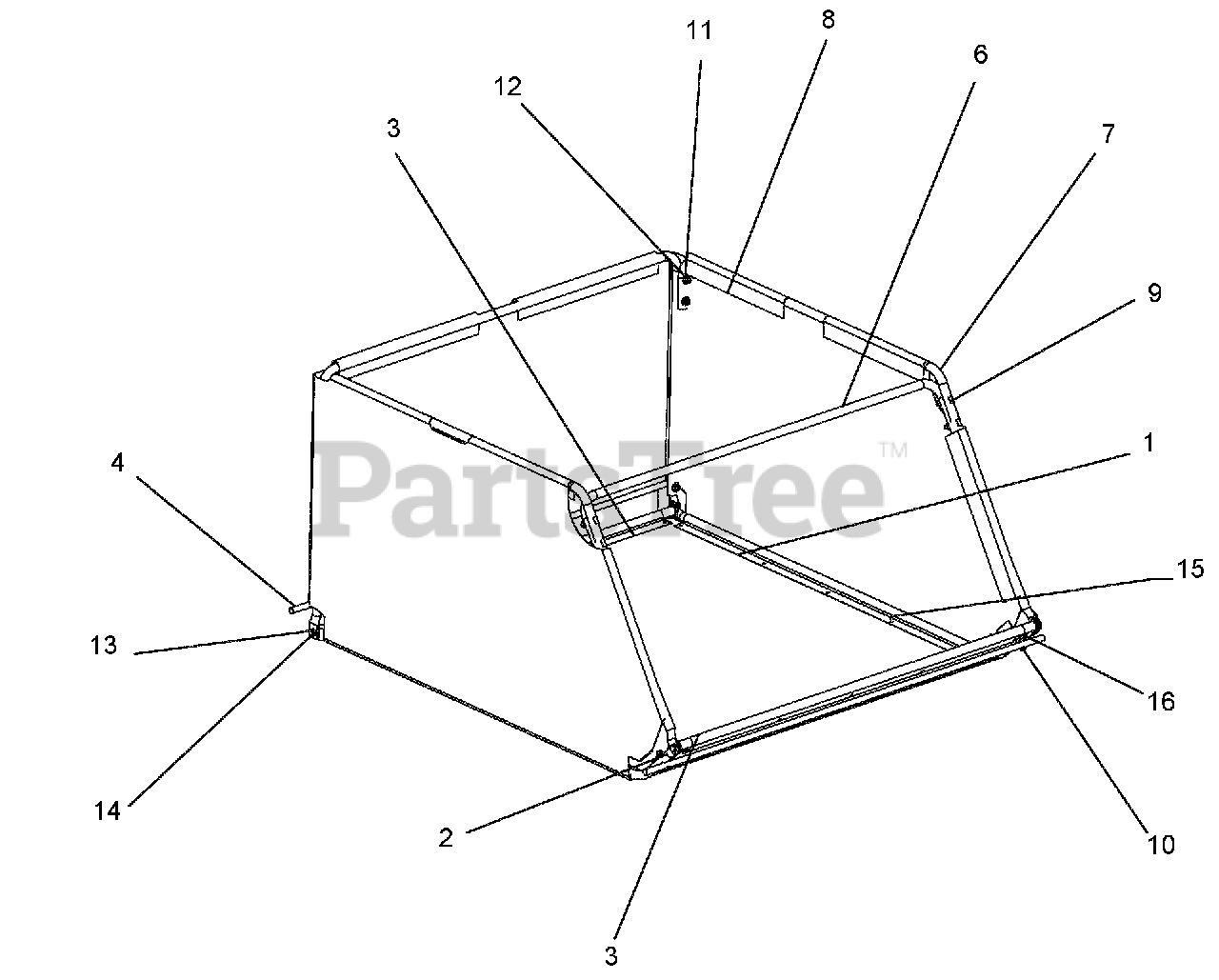

Basket Assembly Parts Diagram

  • Title

1

Gravely PSA-1590-C

Basket Clamp Assembly

$

$

Not available

2

Gravely PSA-1591-C

Basket Clamp Assembly

$

$

Not available

3

Gravely PSA-1427-B

Basket Clamp Assembly

$90.99

$

Usually ships in 4-12 days

0

4

Gravely P86-105-B

Support Rod

$

$

Not available

5

Gravely P82-86-B

Rear Upright

$

$

Not available

6

Gravely P82-87-B

Front Upright

$

$

Not available

7

Gravely P80-137-B

Frame Basket Side Top

$

$

Not available

8

Gravely 04288100

Basket Assembly

$

$

Not available

9

Gravely P69-416-32

Bolt, 1/4-20 x 2.0 Contour Hd.

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 05952500

Bolt, 1/4-20 x 1.5 Hex 5
(Superseded to 05901739)

$1.49

$

In Stock, Qty 8

0

11

Gravely 06435800

Washer, .312 x .734 x .065 Flat
(Superseded to 06401124)

$0.99

$

In Stock, Qty 10

0

12

Gravely 06533200

Nut, Hex 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 7

0

13

Gravely 06308600

Washer, 5/16 Spring Lock
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 05946900

Bolt, 5/16-18 x 1.00 Hex 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

15

Gravely P92-28

Rivet, Bulb Tite

$

$

Not available

16

Gravely P360900

Basket Bottom, Mesh

$

$

Not available

17

Gravely P89-57-C

Basket Bottom, Solid

$

$

Not available

18

Gravely 04295900

Wind Apron (Not Shown)

Note: (Not Shown)

$101.99

$

Usually ships in 4-12 days

0
