995042 - Gravely Tow-Behind Truck Loader, 12" Hose (SN: 000101 & Above) Engine Parts Diagram

Tow-Behind Truck Loader, 12" Hose

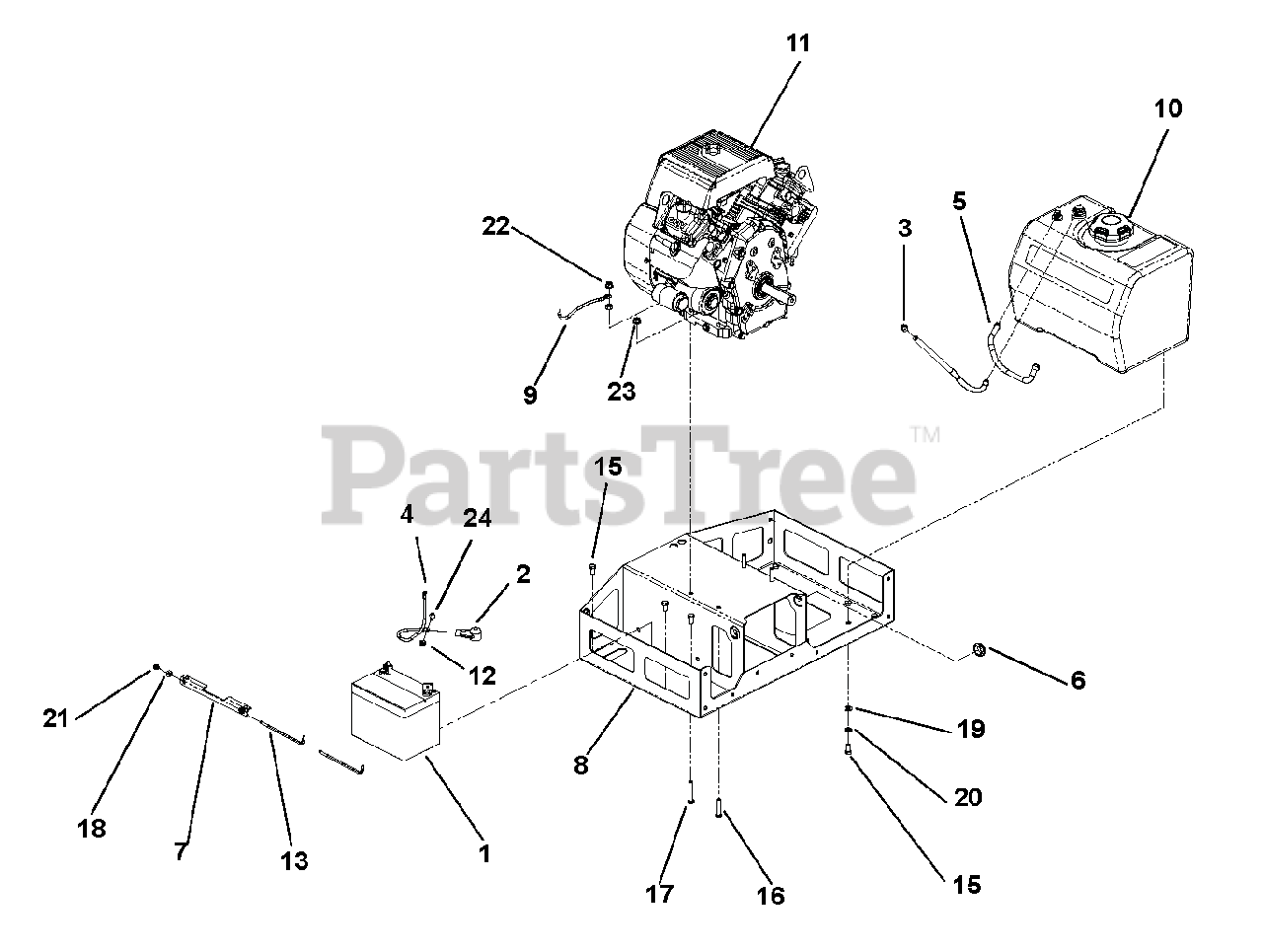

Engine Parts Diagram

  • Title

1

Battery, 12V-U1-CCA270MIN

$

$

Not available

2

Gravely 00525800

BOOT, BATTERY TERMINAL-RED

$8.49

$

Usually ships in 4-12 days

0

3

Gravely R5610100

Clamp, Fuel Line

$

$

Not available

4

Gravely 03286000

CABLE-POSITIVE BATTERY 9.00"

$9.99

$

In Stock, only 1 left!

0

5

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

6

Gravely 03384007

GROMMET:RUB:.88IDX1.38ODX.14GR

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 04231453

STRAP, BATTERY HOLD DOWN (RED)

$

$

Not available

8

Gravely 04244553

WLDT, FRAME BASE (RED)

$

$

Not available

9

Gravely 04267200

CABLE, BATTERY NEG 10" .25X.37

$

$

Not available

10

Gravely 04952000

TANK, FUEL LOW PERM
(Superseded to 05283900)

$

$

Not available

11

Engine, Subaru 22 HP (995042)

Note: (995042)

$

$

Not available

Engine, Subaru 20 HP (995041)

Note: (995041)

$

$

Not available

12

Gravely R1079570

Nut, Lock Flange .25-20 YWZC

$

$

Not available

13

Gravely P360455

J-BOLT 1/4IN-20

$7.99

$

Usually ships in 4-12 days

0

14

Gravely P88-112-B

RING-RUBBER FOOT (WR6-060)

$

$

Not available

15

Gravely 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

16

Gravely 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

18

Gravely 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06531000

@NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

22

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06006127

SCR-HEX-FLNG .25-20 X .625 G2

$

$

Not available
