995045 - Gravely Thatch-O-Matic (SN: 000101 & Above) Upper Handle Assembly Parts Diagram

Thatch-O-Matic

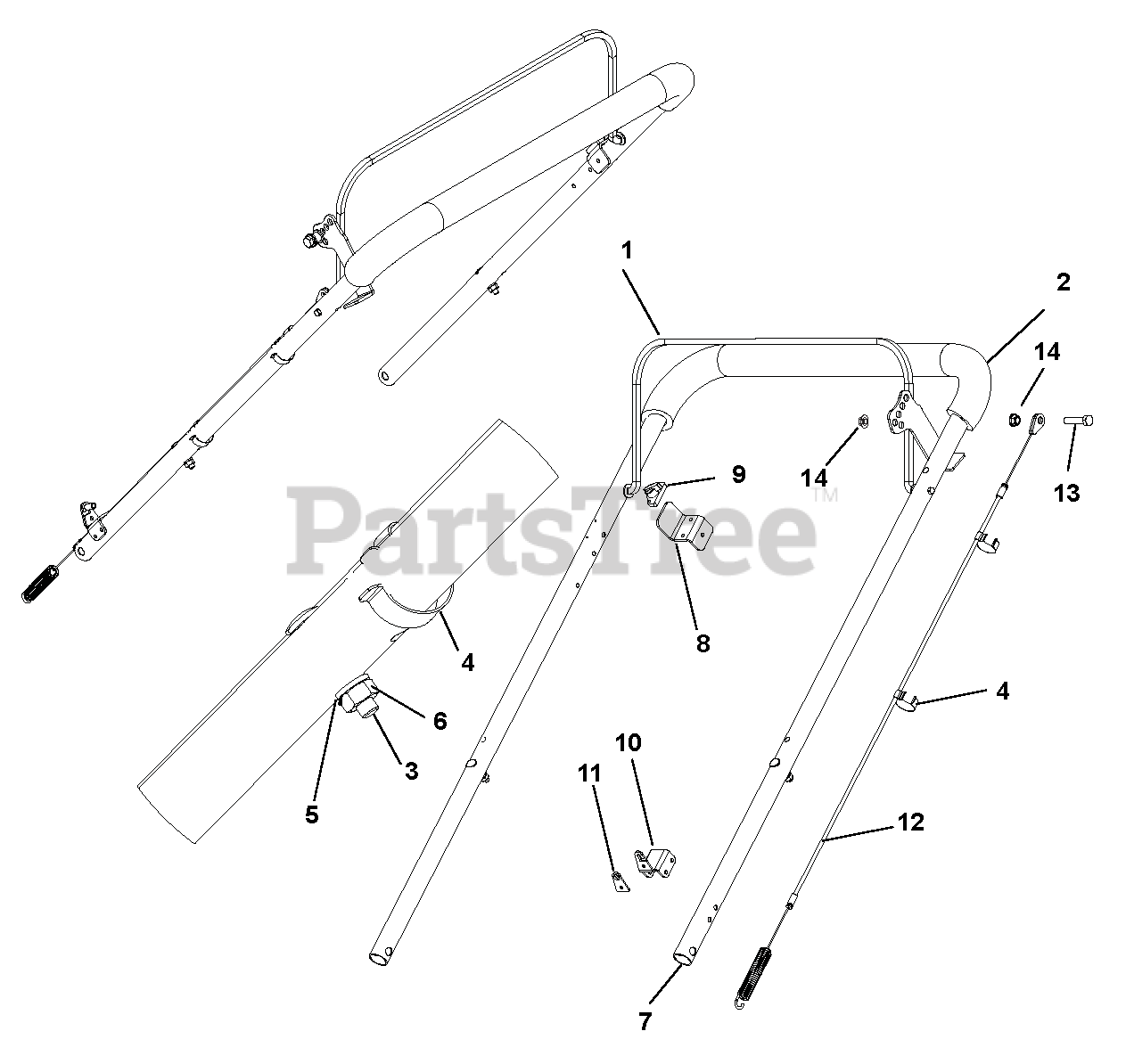

Upper Handle Assembly Parts Diagram

  • Title

1

Gravely P07-70-A

PR-SAFETY BAIL ASSY

$

$

Not available

2

Gravely P360108

SLEEVE-HANDLE
(Superseded to 04290700)

$37.99

$

Usually ships in 4-12 days

0

3

Gravely P69-416-24

BLT-CONT HEAD 1/4-20 X 1.50

$

$

Not available

4

Gravely P80-276-A

SNAP MOUNT

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 7

0

6

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

7

Gravely 04156168

HANDLE, DETHATCHER
(Superseded to 04156151)

$

$

Not available

8

Gravely 04238068

SWITCH BRACKET
(Superseded to 04238051)

$19.99

$

Usually ships in 4-12 days

0

9

Gravely 04238900

SWITCH, SUBARU # 066-00004-71

$

$

Not available

10

Gravely 04259768

CABLE MOUNT
(Superseded to 04259751)

$6.99

$

Usually ships in 4-12 days

0

11

Gravely 04259868

CABLE LOCK
(Superseded to 04259851)

$20.99

$

Usually ships in 4-12 days

0

12

Gravely 04248200

CABLE, CLUTCH, DETHATCHER

$80.99

$

Usually ships in 4-12 days

0

13

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 9

0

14

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 04275600

WIRE HARNESS, DETHATCHER

Note: (Not shown, connects from #9 to connector on engine)

$15.99

$

Usually ships in 4-12 days

0
