995049 - Ariens All-Purpose Vacuum, Self-Propelled, Subaru (SN: 000175 & Above) Transmission Assembly Parts Diagram

All-Purpose Vacuum, Self-Propelled, Subaru

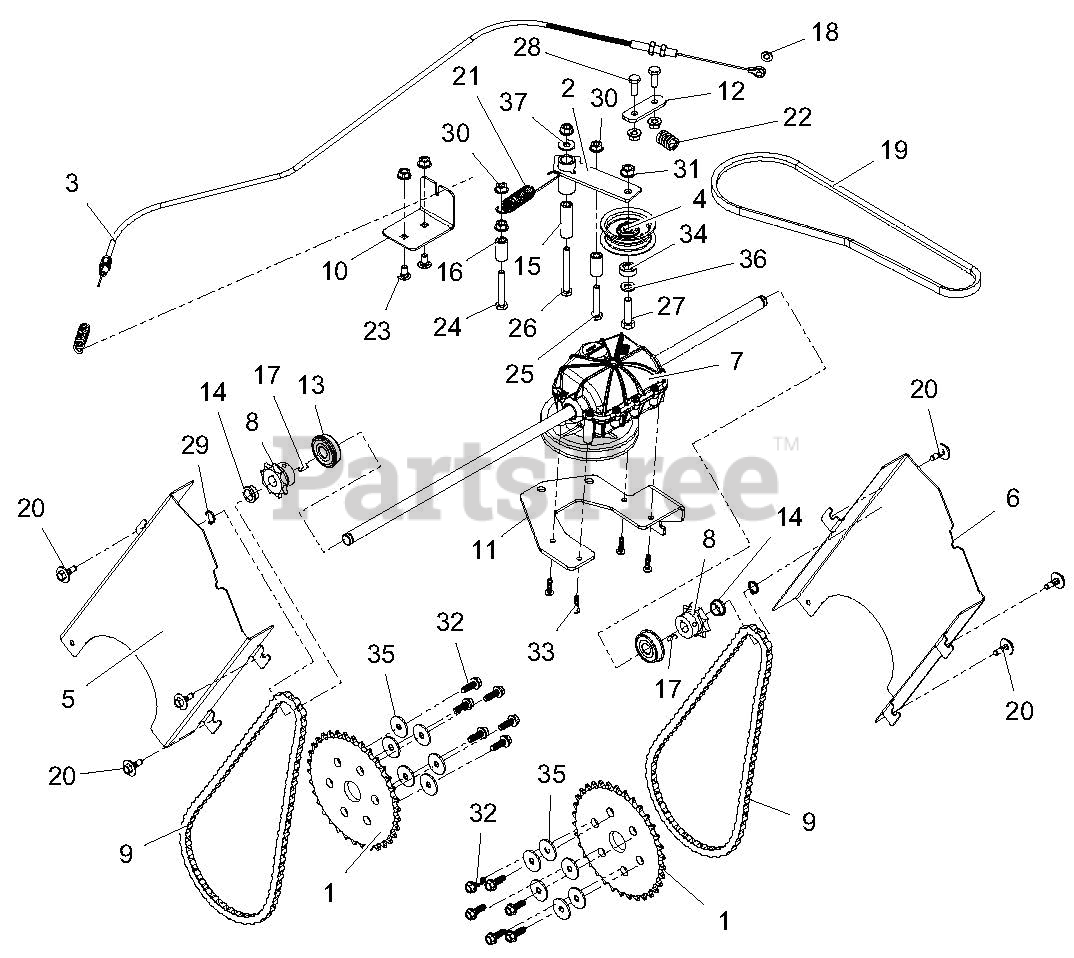

Transmission Assembly Parts Diagram

  • Title
1

Ariens 04713800

SPROCKET, DRIVE - 41 34T FLAT

$50.25

$

Usually ships in 4-12 days

0

2

Ariens 04790500

WLDMT, IDLER ARM

$

$

Not available

3

Ariens 06900605

CABLE, TRACTION - APV DRIVE

$33.48

$

Usually ships in 4-12 days

0

4

Ariens 07338900

IDLER, FLAT - 2.00"

$33.48

$

Usually ships in 4-12 days

0

5

Ariens 04682659

GUARD, BELT - RIGHT APV

$55.34

$

Usually ships in 4-12 days

0

6

Ariens 04682759

GUARD, CHAIN - LEFT APV

$30.13

$

Usually ships in 4-12 days

0

7

Ariens 04684400

TRANS, DRIVE - GT MA502

$112.86

$

Usually ships in 4-12 days

0

8

Ariens 04684600

SPROCKET,DRIVE - 41 9T #404KW

$33.48

$

Usually ships in 4-12 days

0

9

Ariens 04684700

CHAIN, ROLLER - #41 64 PITCHES

$33.48

$

Usually ships in 4-12 days

0

10

Ariens 04696651

MOUNT, CABLE - APV TRACTION

$11.18

$

Usually ships in 4-12 days

0

11

Ariens 04696751

MOUNT, TRANSMISSION - APV

$12.24

$

Usually ships in 4-12 days

0

12

Ariens 04712251

PLATE, RETAINER - APV TRANS

$7.32

$

Usually ships in 4-12 days

0

13

Ariens 05480000

BRG-BALL .50X1.38X.438 SEALED

$16.71

$

In Stock, Qty 20+

0

14

Ariens 05501119

BSHG,FLANGE .500X.625X.270X.75

$3.63

$

In Stock, Qty 7

0

15

Ariens 05501130

BSHG, SLV .265X.505X1.665

$3.30

$

In Stock, only 1 left!

0

16

Ariens 05501131

BSHG, SLV .265X.505X.995

$3.30

$

In Stock, only 1 left!

0

17

Ariens 06600004

KEY-WDRF .125X.50X.20 (HRDEND)

Note: (HRDEND)

$2.24

$

In Stock, Qty 12

0

18

Ariens 07027600

NUT-PUSH .25X.50 O.D.

$1.96

$

In Stock, Qty 17

0

19

Ariens 07200529

V-BELT, 3L-WRAPPED

Note: (NO RUBBER BLEED THRU)

$24.60

$

In Stock, Qty 20+

0

20

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.80

$

In Stock, Qty 7

0

21

Ariens 08300540

SPRG, EXTENSION
(Superseded to 08300611)

$8.89

$

In Stock, Qty 9

0

22

Ariens 08300605

SPRG, COMPRESSION

$8.89

$

Usually ships in 4-12 days

0

23

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.96

$

In Stock, Qty 20+

0

24

Ariens 05964700

@BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05901935)

$1.99

$

In Stock, only 4 left!

0

25

Ariens 05952500

@BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$2.24

$

In Stock, Qty 5

0

26

Ariens 05956700

@BLT-HEX .25-20X2.25 GR5 YWZC
(Superseded to 05901636)

$2.18

$

In Stock, only 1 left!

0

27

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.24

$

Usually ships in 4-12 days

0

28

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.79

$

In Stock, Qty 13

0

29

Ariens 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.24

$

Usually ships in 4-12 days

0

30

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.96

$

In Stock, Qty 20+

0

31

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$2.80

$

In Stock, Qty 20+

0

32

Ariens 07400106

SCR-HEX .25X14-.75

$2.12

$

In Stock, only 2 left!

0

33

Ariens 07400112

SCR-TAP 10-14X.75PLSTITE BLKOX

$1.68

$

Usually ships in 4-12 days

0

34

Ariens 05501115

SPCR, BRG .315X.500X.358X.281

$3.47

$

Usually ships in 4-12 days

0

35

Ariens 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$2.52

$

In Stock, Qty 20+

0

36

Ariens 06436700

WSHR-FL-STL .323X.625X.062 YWZ
(Superseded to 06401002)

$2.40

$

In Stock, Qty 5

0

37

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$2.52

$

In Stock, Qty 14

0
