995051 - Ariens All-Purpose Vacuum, Push (SN: 000101 & Above) Engine/Fan Assembly Parts Diagram

All-Purpose Vacuum, Push

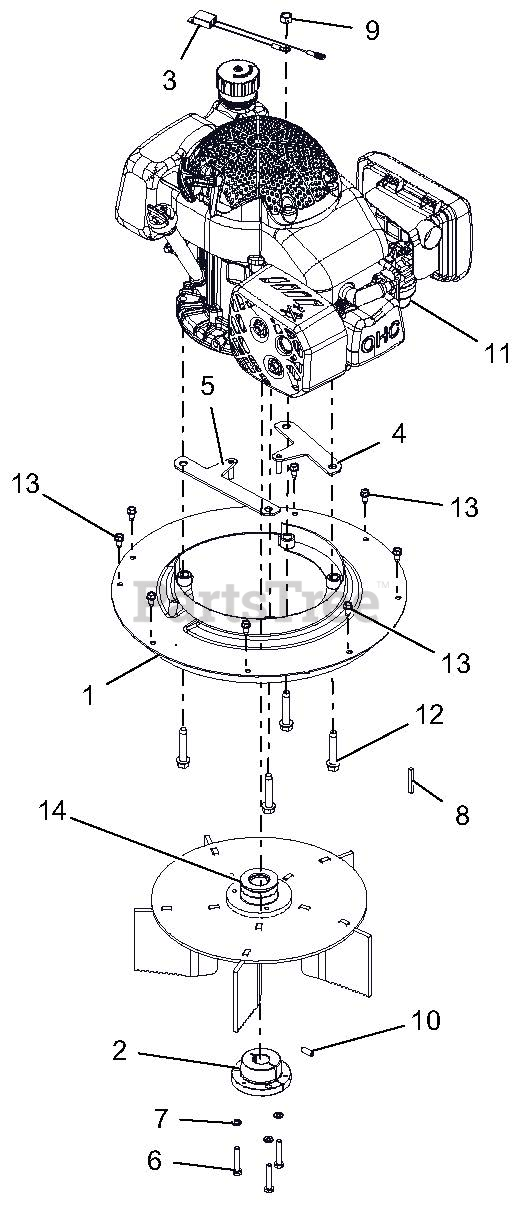

Engine/Fan Assembly Parts Diagram

  • Title
1

Ariens 04569759

WMT-ENGINE PLATE

$

$

Not available

2

Ariens 05501216

BUSHING, TAPER-SPLIT 7/8"(SDS)

Note: (SDS)

$93.86

$

Usually ships in 4-12 days

0

3

Ariens 04674600

WIRE HARNESS-APV

$

$

Not available

4

Ariens 04696951

WLDMT, BRKT - APV BELT FNGR L

$30.86

$

Usually ships in 4-12 days

0

5

Ariens 04697051

WLDMT, BRKT - APV BELT FNGR R

$30.86

$

Usually ships in 4-12 days

0

6

Ariens 05901536

BLT-HEX .25-20X1.5 FTHD GR5 ZC

$

$

Not available

7

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$2.52

$

In Stock, Qty 7

0

8

Ariens 06609600

KEY-SQ .188X1.50X.188

$2.46

$

Usually ships in 4-12 days

0

9

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$2.24

$

In Stock, Qty 20+

0

10

Ariens 06000222

SCR,SET .25-20X.75 PCPT SH

$1.68

$

Usually ships in 4-12 days

0

11

Ariens 08200838

ENGINE,SUBARU EA190 (CARB)

Note: (CARB)

$

$

Not available

12

Ariens 07417300

SCR-TAP .38-16X2.00 HWH TR YZ

$4.42

$

Usually ships in 4-12 days

0

13

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$2.24

$

In Stock, Qty 20+

0

14

Ariens 04863200

WLDMT, IMPELLER - APV TAPER
(Superseded to 59504500)

$176.02

$

Usually ships in 4-12 days

0
