995301 - Ariens All-Purpose Vacuum, Self-Propelled, Subaru (SN: 000101 - 000178) Engine/Fan Assembly Parts Diagram

All-Purpose Vacuum, Self-Propelled, Subaru

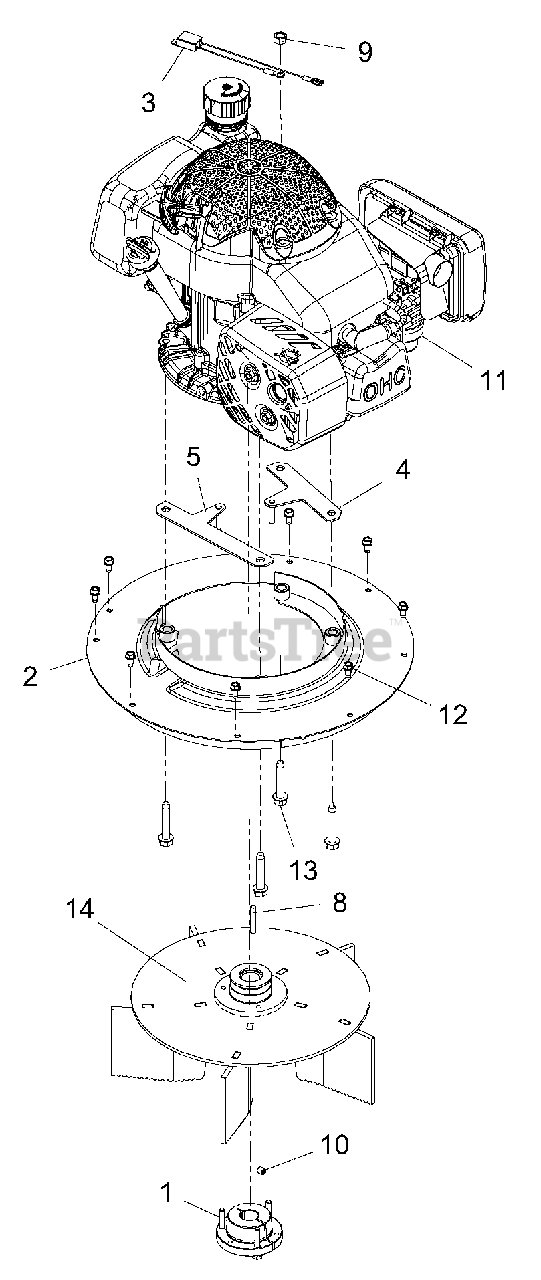

Engine/Fan Assembly Parts Diagram

  • Title

1

Ariens 05501216

BUSHING, TAPER-SPLIT 7/8"(SDS)

Note: (SDS)

$110.99

$

Usually ships in 4-12 days

0

2

Ariens 04569759

WMT-ENGINE PLATE

$

$

Not available

2

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$1.49

$

In Stock, Qty 20+

0

2

Ariens 05901536

BLT-HEX .25-20X1.5 FTHD GR5 ZC

$

$

Not available

3

Ariens 04674600

WIRE HARNESS-APV

$

$

Not available

4

Ariens 04696900

WLDMT, BRKT - APV BELT FNGR L

$

$

Not available

5

Ariens 04697000

WLDMT, BRKT - APV BELT FNGR R

$

$

Not available

8

Ariens 06609600

KEY-SQ .188X1.50X.188

$3.49

$

Usually ships in 4-12 days

0

9

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.99

$

In Stock, Qty 20+

0

10

Ariens 06005500

SCR-SET .31-18X.38 SKHCUPDL

$3.99

$

In Stock, only 1 left!

0

11

Ariens 08201006

ENGINE-SUBARU EA190V CE

Note: (CE)

$

$

Not available

12

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 07417300

SCR-TAP .38-16X2.00 HWH TR YZ

$5.99

$

Usually ships in 4-12 days

0

14

Ariens 04748000

WLDMT,IMPELLER - APV TAPER
(Superseded to 59504500)

$200.99

$

Usually ships in 4-12 days

0
