995303 - Ariens All-Purpose Vacuum, Push, Subaru (SN: 000101 & Above) Wheel Assembly Parts Diagram

All-Purpose Vacuum, Push, Subaru

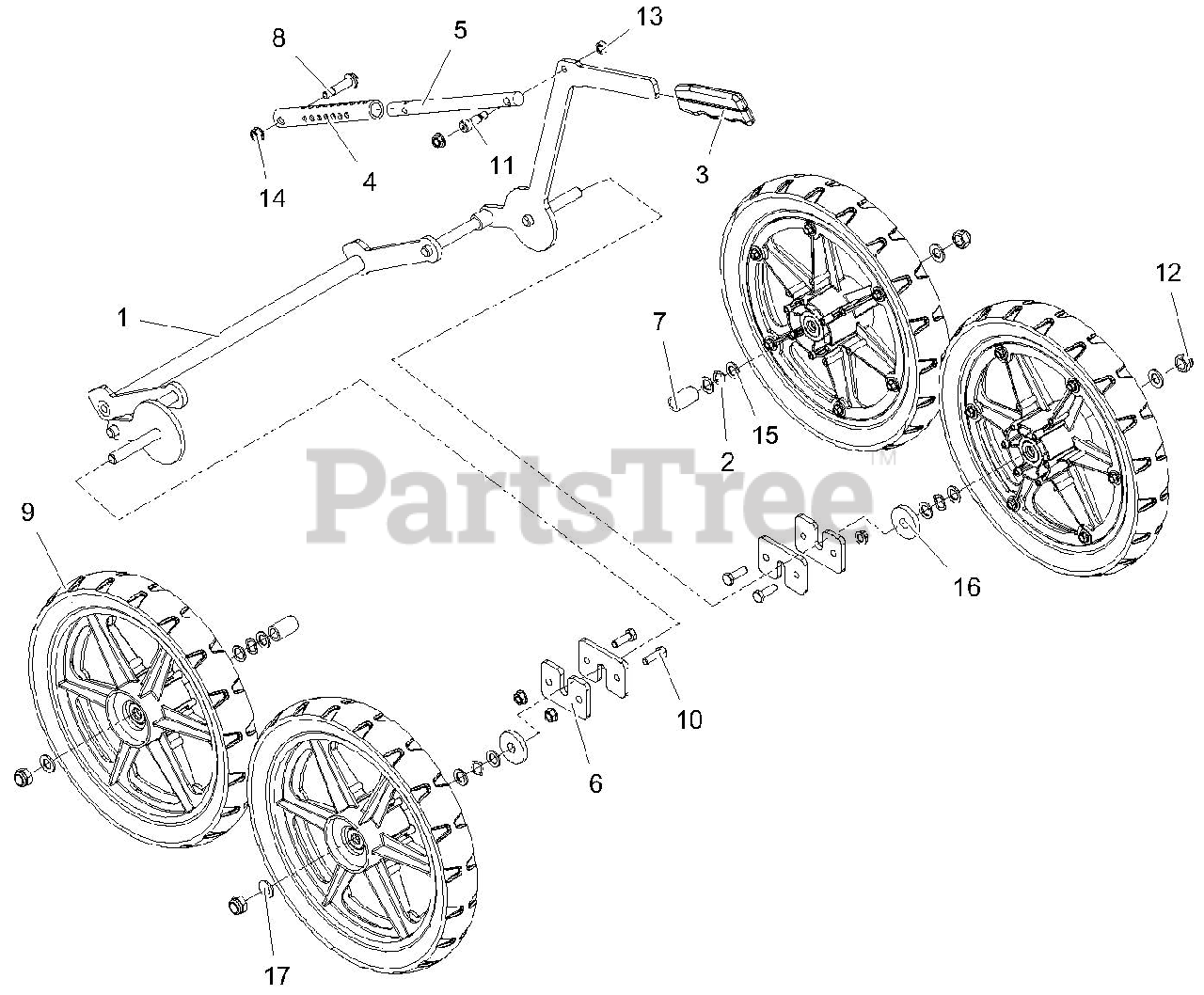

Wheel Assembly Parts Diagram

  • Title

1

Ariens 04570851

WLDMT, CROSS SHFT - HEIGHT ADJ

$107.99

$

Usually ships in 4-12 days

0

2

Ariens 00325400

WAVE WASHER .531X.781X.125FH

$1.49

$

In Stock, Qty 20+

0

3

Ariens 03826900

GRIP, PARKING BRAKE (YELLOW)

Note: (YELLOW)

$4.99

$

In Stock, only 3 left!

0

4

Ariens 04690159

TUBE, ADJ - APV HEIGHT ADJ

$13.99

$

Usually ships in 4-12 days

0

5

Ariens 04690200

ROD, ADJ - APV HEIGHT ADJ

$14.99

$

Usually ships in 4-12 days

0

6

Ariens 04690351

PLATE, RETAINER-APV HEIGHT ADJ

$6.99

$

Usually ships in 4-12 days

0

7

Ariens 04713000

SPCR, WHEEL - APV REAR WHEEL

$

$

Not available

8

Ariens 07001709

BLT-SHLDR, .50X1.15X.312-18GR5

$6.49

$

Usually ships in 4-12 days

0

9

Ariens 07101023

WHEEL-14X2 .50ID W/DRIVE HUB
(Superseded to 07101102)

$43.99

$

Usually ships in 4-12 days

0

10

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

11

Ariens 07001726

BLT,SHLDR-.38DIA X.75EL;.31-18

$

$

Not available

12

Ariens 06500715

NUT, ACORN - 1/2-13 ELC

$

$

Not available

13

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

14

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.99

$

In Stock, Qty 20+

0

16

Ariens 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.49

$

In Stock, Qty 20+

0

17

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

In Stock, Qty 20+

0
